18
GROUNDING YOUR CABLE TV, SATELLITE DISH, AND ANTENNA CONNECTIONS
IMPORTANT NOTE:
Improper grounding can easily result in surge damage, regardless of the Clean Power
™ filters and surge protection
provided by your PowerCenter. Proper grounding can only be accomplished by using a special grounding block
attached to a cold water pipe or copper ground rod driven into the ground. Consult with a qualified electrician to
verify your outdoor connections are grounded properly.
IN
OUT
ANTENNA
COAXIAL SECTION
OF THE POWERCENTER
GROUNDING BLOCK
ON COLD WATER PIPE
OR GROUNDING ROD

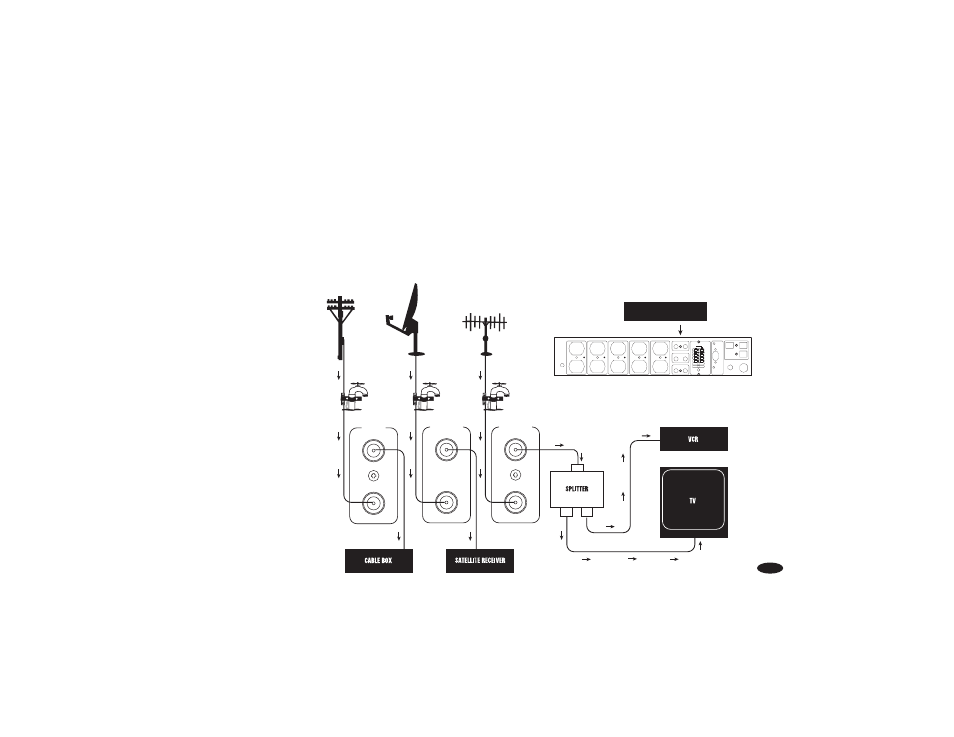

Coaxial Input/Output Hookup
ANTENNA SATELLITE
DISH
CABLE TV
LINE
IN
OUT
SATELLITE
IN
OUT
CATV
GROUND
IN OUT
IN OUT
IN OUT
CABLE TV
SATELLITE
ANTENNA
PHONE
OUT 1 IN
OUT 2
BREAKER 15A PRESS TO RESET 1800W MAX TOTAL
2 1 3 4 5
REMOTE NORMAL OUTLET PROGRAMMING SWITCHES UNSWITCHED SWITCHED DELAY NO DELAY 1 2 3
5 4
NO DELAY DELAY DC IN
3~30V
REMOTE
AC IN
110V
0.3A
DC OUT
9~12V
300MA
DELAY
TIME
SWITCH LONG
(20 seconds) SHORT (6 seconds) TRIGGER
OUT
SWITCH
