STEP 6
High Current Audio Filter AC Outlet Hookup
Isolated Clean Power v.2.0 Stage 4 Ultra-High Current Filter: Optimized for maximum noise rejection, while
providing maximum current to high current audio components.
NOTE:
You may want to program these outlets to be “switched on after delay” (see page 7, fig. 2c) to enable sequential
power activation. This way, power amplifiers are turned on last and turned off first, preventing the “thump” from
getting to your speakers. See “STEP 2: Outlet Programming” (page 7) for details.

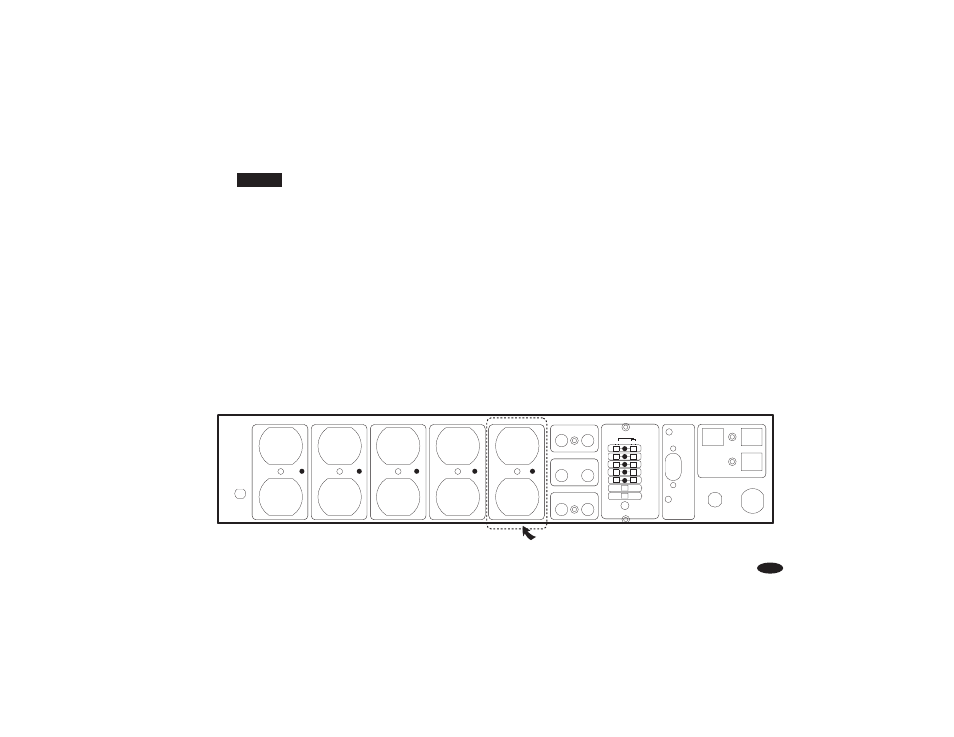

A) Attach a Monster Power® ID label to each component’s power cord before you plug it into the appropriate
color-coded PowerCenter outlet.
B) MAIN AMP: Plug your power amplifier’s power cord into the PowerCenter’s corresponding MAIN AMP outlet.
C) SURROUND AMP: If you have a surround sound amplifier, plug its power cord into the corresponding
SURROUND AMP outlet. If you are using additional high current audio equipment, plug its power cord into
the same outlet.
