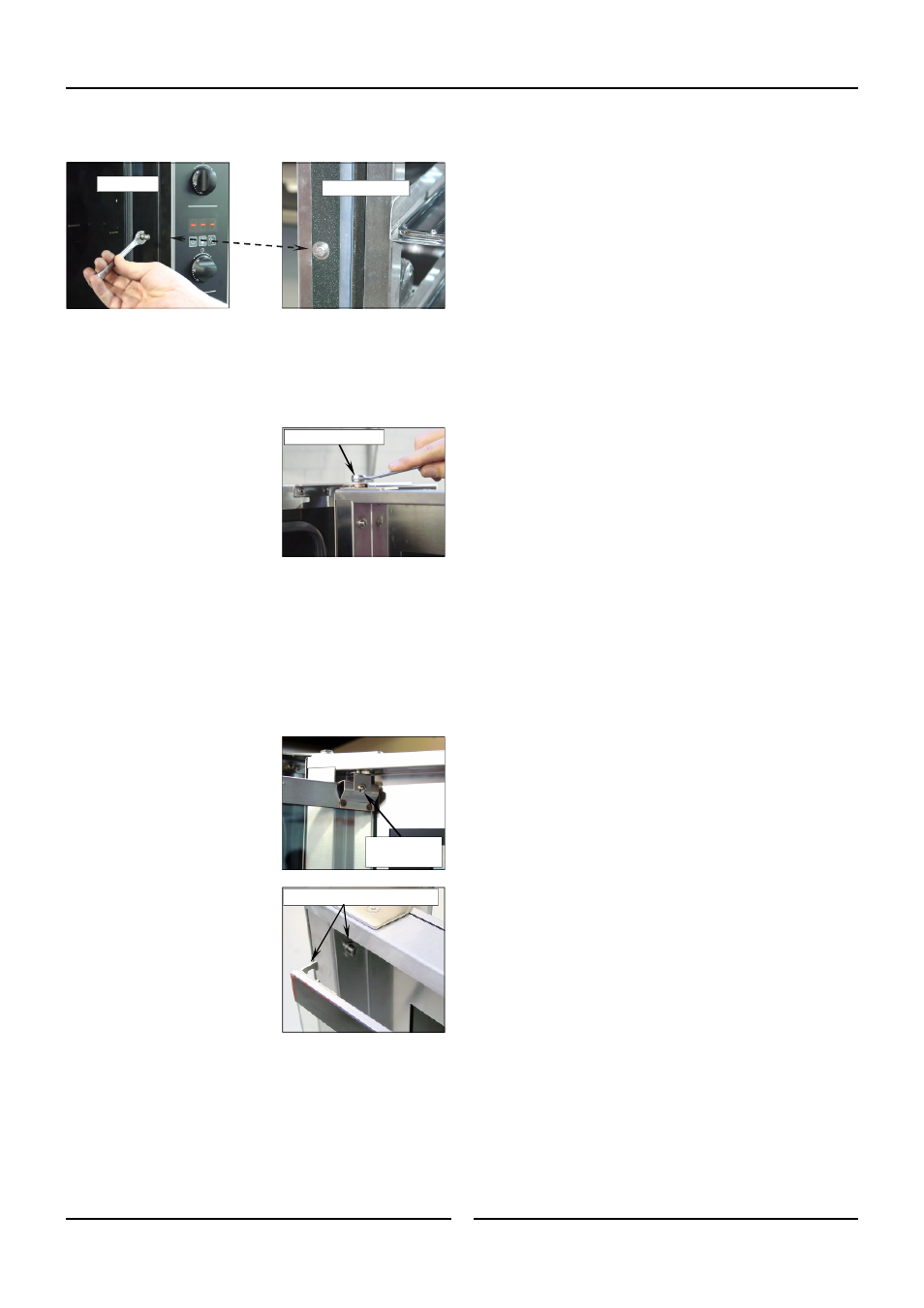

16. Remove the Blanking Screw and Door Catch from the
front of the oven and swap around.
17. Fit the door spacers removed at Item 13 opposite to
the lower hinge pivot bolt.
Oven Door Re-Fitting
Fit the Door.
1. Refit the oven door by
locating the bottom of the
door onto the bottom hinge
plate pivot bolt and spacers.
2. Fit the top of the door into
the top hinge plate and
secure with the top pivot
bolt.
Fit Inner Glass to Door.
NOTE: It is important to ensure that the inner glass is
fitted correctly and that the glass pivots at the
hinge end of the door and not the handle end.
3. Fit the pivot spacer removed at Item 3 on the previous
page, to the lower inner glass pivot and locate the inner
glass lower pivot into position on the inside of the door.
4. Locate the top pivot of the
inner glass into the top of the
door and secure in position
with the inner glass retaining
clip.
5. Lift the inner glass up onto
the locking catch to lock into
position.
Adjust the Door for Correct Alignment.
Check the operation of the door. Ensure that the door
roller catch correctly retains the door in the closed position.
To adjust, slightly loosen the screws securing the roller
catch and close the door. The roller catch will centralise
itself. Open the door and tighten the roller catch securing
screws.
Screw and
Retaining Clip.
Top Door Pivot Bolt.
Blanking Screw
Door Catch
Inner Glass Locking Catch
