K00375 ADAPTER KIT
Installation Instructions
The K00375 kit is used for installing Q-1400 or Q-Dual ice machines on a C-730 bin.
1. Note: Bin must be level before installation of ice machine.
A. Remove the foam tape from the front and sides of the bin where the stainless deflector will be located.
B. Remove RH and LH hinge screws and bin door. Remove fillers and old deflector.
C. Place the deflector on the front edge of the bin and align with front bin edge.
D. Place the fillers on the bin, as shown. Make sure the two holes from the stainless deflector and fillers are
aligned on the side.
E. Apply foam tape to the front and back of the bin between the fillers. Note: All other required foam tape
comes preassembled with the stainless deflector and fillers.
F. Note: It is recommended to RTV intersections and along the inside edge of the foam tape to prevent water
tracking.
2. Refer to ice machine installation manual for ice machine installation procedures.
Manitowoc Ice, Inc.
2110 South 26 th Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA 000000262
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879 Sheet 1 of 2
Web Site - www.manitowocice.com 08/11/05

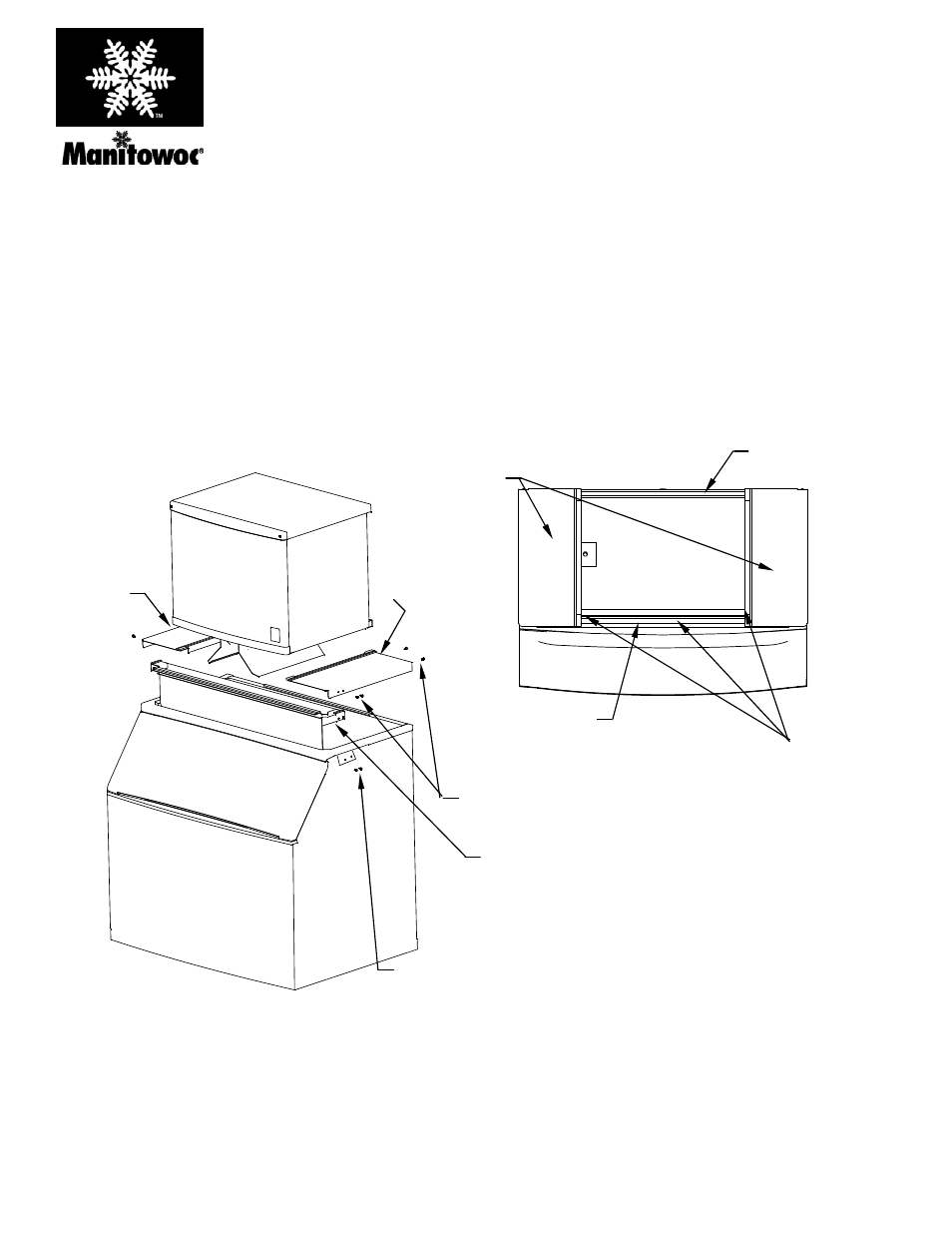

Filler
Filler
Double layer of .75”
Wide Foam Tape on
Deflector between Fillers
INSTALLER: It is recommended to
RTV intersections and along inside
edge of Foam Tape to prevent water
tracking
Filler
#10-24 x .50”L
Screws Typ
Stainless Steel
Deflector
.75” Wide Foam Tape
RH and LH Hinge
Screws
