Holes in front

No holes in rear

Hardware Kit Contents

1. Open double end wrench, 1 pc
2. L-shaped Allen wrench (M5), 1 pc
3. L-shaped Allen wrench (M6), 1 pc
4. L-shaped Allen wrench (M4), 1 pc
5. Screwdriver handle (green), 1 pc
6. Double-ended screwdriver stem, 1 pc
7. Round head Phillips screws, 10 pc
8. Screw inserts, 8 pc

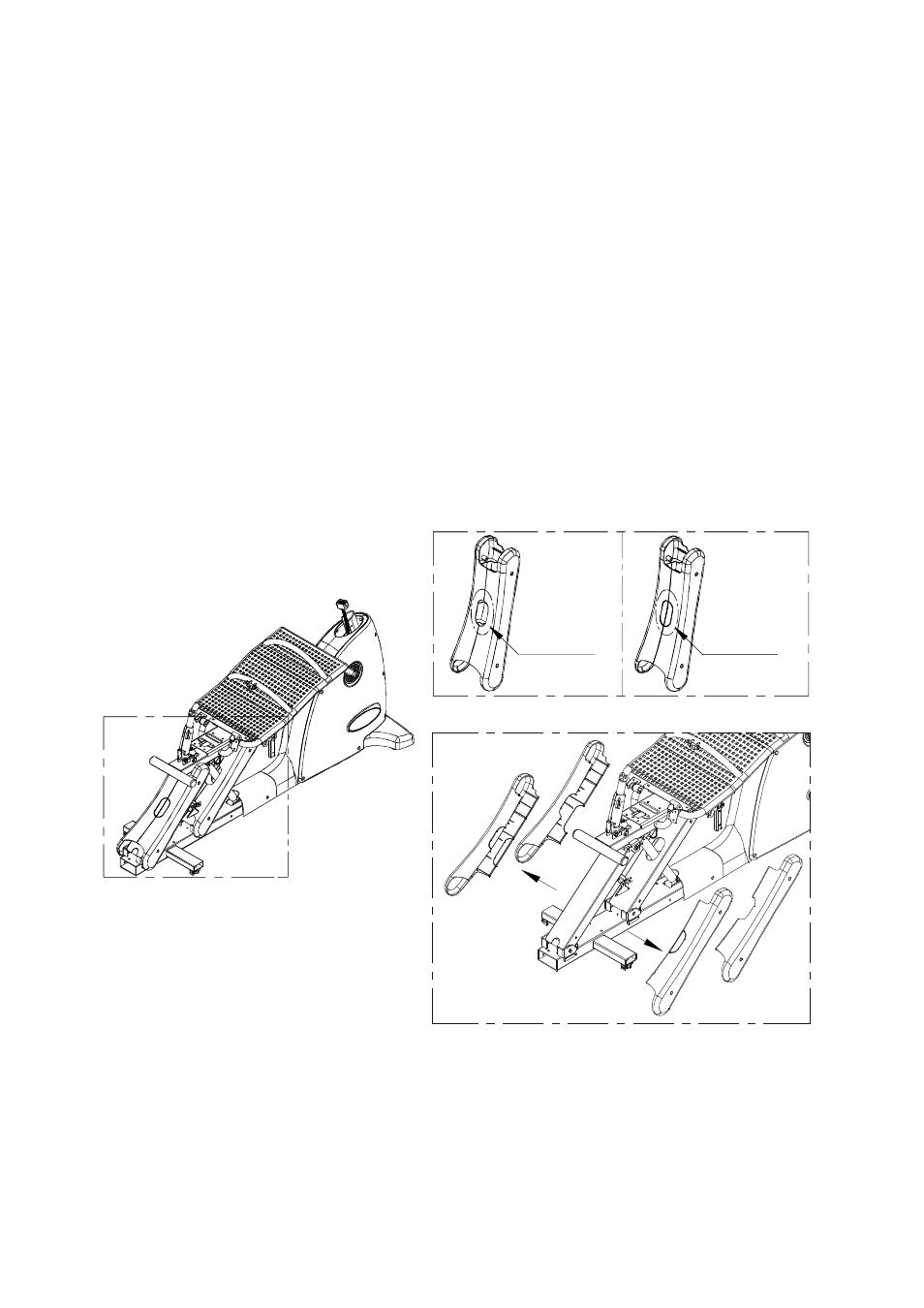

Assembly - Seat Support Covers

First, remove the front and rear seat
support covers from both sides.
