OM-227 398 Page 27
SECTION 9 − PARTS LIST INCLUDING CONSUMABLES
Item
Number
1 2 3 4 5
Ref. 803 909-A / 805 046-A / 805 047-A / 805 048-A
XR-Aluma-Pro
4” Head Tube
Outer
Water Long
(#230 420)
Inner Rear
(#227 416)
Outer
Air Short
(#227 159)
Outer
Air Long
(#229 673)
(#230 679)
(#229 670)
(#230 678)
Air (Short)
(#231 519)
XR-Aluma-Pro
6” Head Tube
Air (Long)
(#231 518)
XR-Aluma-Pro
6” Head Tube
Water
(#231 517)
.030−1/16”

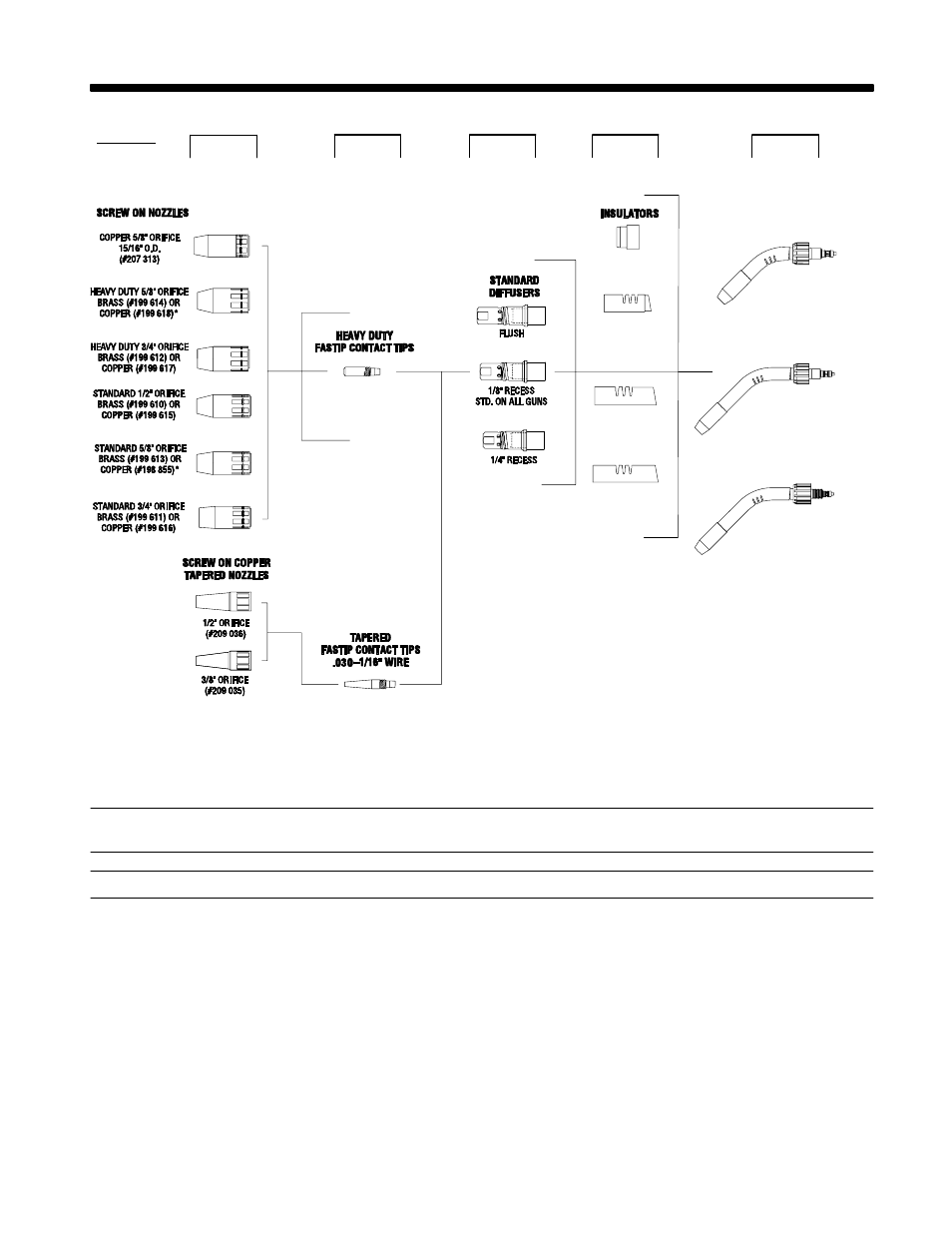

Figure 9-1. Consumables Flowchart
Description
Part
No.
Item
No.
9-1. Consumables Flowchart
Quantity
Table 9-1. Nozzles
1 ♦ 199 610 Nozzle, Screw On Brass 1/2 in Orifice 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 ♦ 199 611 Nozzle, Screw On Brass 3/4 in Orifice Straight 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 ♦ 199 612 Nozzle, Screw On Brass 3/4 in Orifice Straight Heavy Duty 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 ♦ 199 613 Nozzle, Screw On Brass 5/8 in Orifice 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 ♦ 199 614 Nozzle, Screw On Brass 5/8 in Orifice Heavy Duty 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 ♦ 199 615 Nozzle, Screw On Copper 1/2 in Orifice 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 ♦ 199 616 Nozzle, Screw On Copper 3/4 in Orifice 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 ♦ 199 617 Nozzle, Screw On Copper 3/4 in Orifice Heavy Duty 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 198 855 Nozzle, Screw On Copper 5/8 in Orifice 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 199 618 Nozzle, Screw On Copper 5/8 in Orifice Heavy Duty 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 ♦ 207 313 Nozzle, Screw On Copper 5/8 in Orifice 15/16 OD 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 ♦ 209 035 Nozzle, Screw On Copper 3/8 in Orifice Tapered (Requires Diffuser 229 670, . . . . . . . . . . . . .
230 678, 230 679 Used With Any Tapered FasTipt Contact Tip) 1 . . . . . . . . . .
1 ♦ 209 036 Nozzle, Screw On Copper 1/2 in Orifice Tapered (Requires Diffuser 229 670, . . . . . . . . . . . . .
230 678, 230 679 Used With Any Tapered FasTipt Contact Tip) 1 . . . . . . . . . .
