SECTION 4 − INSTALLATION
.
Be sure that contact tip, liner, and drive rolls are correct for wire size and type. See Parts List to change parts as needed.

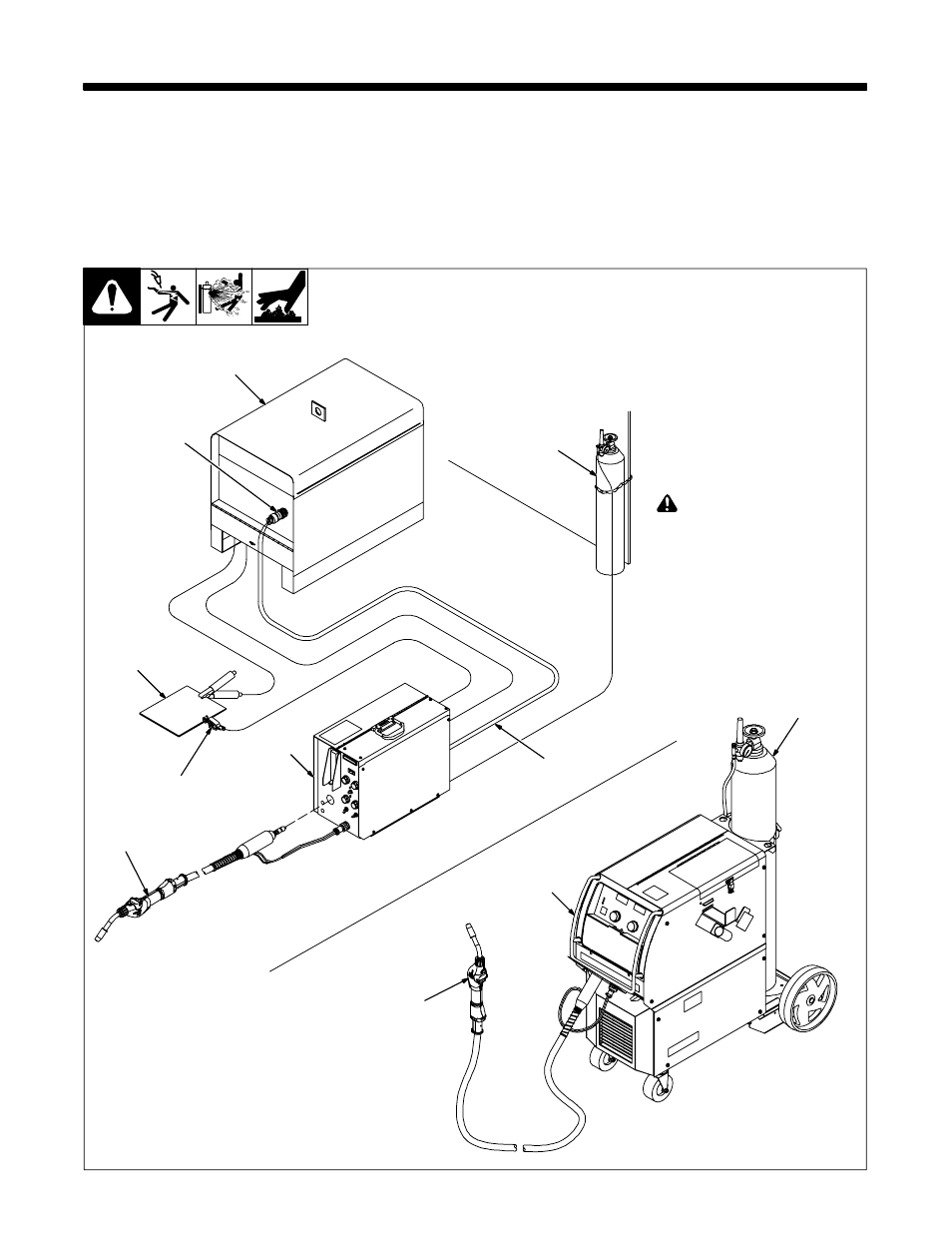

4-1. Connections With A Constant Current (CC), Constant Voltage (CV) Or Constant
Current/Constant Voltage (CC/CV) Welding Power Source Having A 14-Socket Re-
ceptacle
804 542-B / 804 653-A
1 CC, CV Or CC/CV Welding
Power Source
2 24 VAC/Contactor Control
14-Pin Plug
3 Workpiece
4 Voltage Sensing Lead
(Optional)
Connect lead to workpiece for CC
welding only.
5
Gun
6 Wire Feeder
7 24 VAC/Contactor Control
Cord
! Do not use gas pressure
above 50 psi (345 kPa).
8 Gas Cylinder
1
2
3
4
5
7
8
6
Millermatic 350P
XR Control
5
1
8
