Ultimate Performance Rig

Headphones

Plug into

front panel

headphone jack

SRM450

Powered Speakers

Booth

Le

ft

Booth

Right

SA1532z

Powered Speaker

Main Left

SWA1801z

Powered

Subwoofers

SA1532z

Powered Speaker

Main Right

SWA1801z

Powered

Subwoofers

CD Turntable (PGM 4) CD Turntable (PGM 3)

Laptop Computer

Main Le

ft

Main Right

Turntables with phono-level outputs

Effects Processor

out

in

Microphones

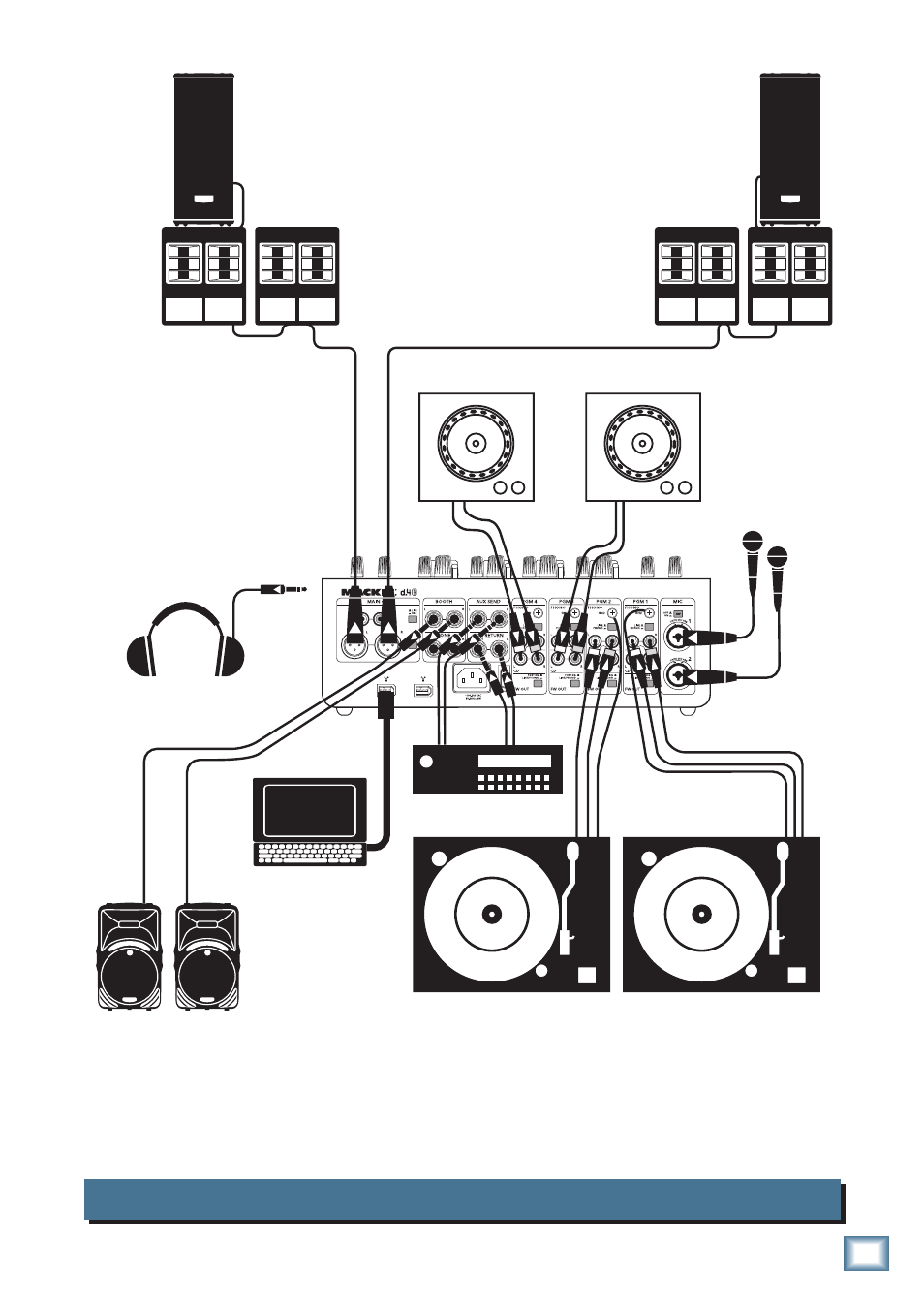

This diagram shows 4 sources hooked up to 4 channels, with an effects device in the aux loop, and a

laptop attached. Separate tracks can be recorded into Tracktion, of each stereo program channel and

the microphones, and even the effects channel. This gives multitrack recording of all the elements of the

performance, for remixing at a later time.
