d.4 Pro DJ Production Console
d.
4 Pr
o 4-channel DJ Pr
oduc
tion C
ons
ole
Producer’s Dream System
Microphones
to headphone jack
Effects Processor
Laptop
Keyboard (PGM1)
Drum
Machine
(PGM2)
USB Keyboard
Controller
CD Turntable
(PGM 3)
HM-54
Headphone amp
CD Recorder
HR824 Powered
Studio Monitors
Turntable (PGM4)
with phono-level
output

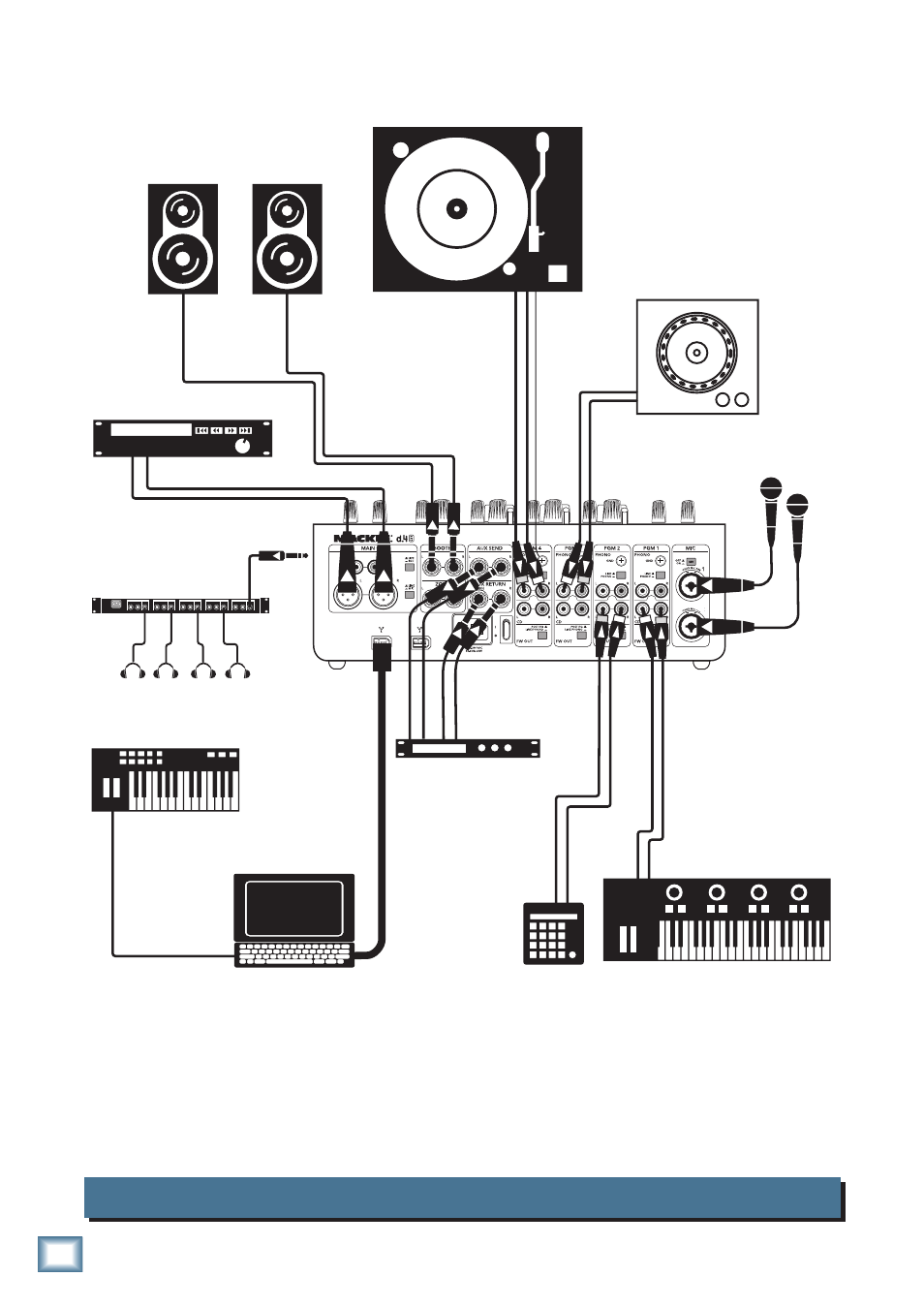

This diagram shows a keyboard, drum machine, turntable and CD turntable, with two microphones.
A USB keyboard controller is also attached directly to the computer. The FireWire output from various
software, such as Reason™, Abelton Live™, Tracktor™, Tracktion™, and Logic™ can be sent to the four
program channels for mixing. An effects processor is also shown in the aux loop.
