37
S CANNER AND C ABLE T ERMINATIONS

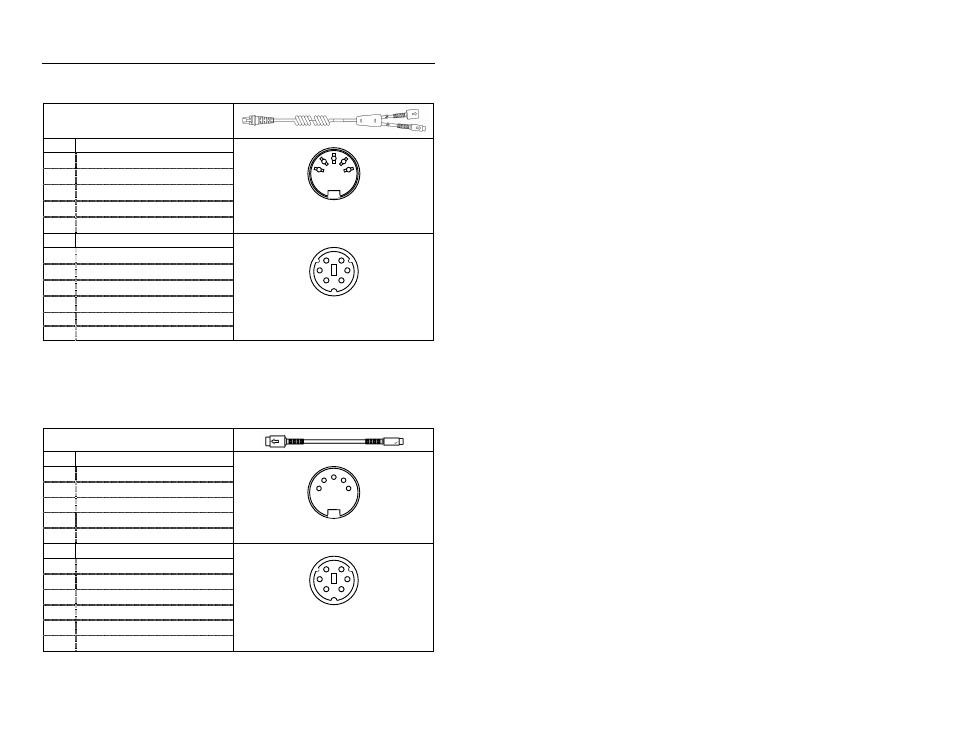

Cable Connector Configuration (Host End)
Keyboard Wedge PowerLink Cable
53-53002-3 Coiled
Pin Function
1 Keyboard Clock
2 Keyboard Data
3 No Connect
4 Power Ground
5 +5 VDC
Pin Function
1 PC Data
2 No Connect
3 Power Ground
4 +5 VDC
5 PC Clock
6 No Connect
Metrologic will supply an adapter cable with a 5-pin DIN male connector on one
end and a 6-pin mini DIN female connector on the other. According to the
termination required, connect the appropriate end of the adapter cable to the
PowerLink cable, leaving the necessary termination exposed for connecting to
the keyboard and the keyboard port on the PC.
Keyboard Wedge Adapter Cable
Pin Function
1 PC Clock
2 PC Data
3 No Connect
4 Power Ground
5 +5 VDC
Pin Function
1 Keyboard Data
2 No Connect
3 Power Ground
4 +5 VDC
5 Keyboard Clock
6 No Connect
2
1
4 5
3
5-Pin DIN, Female
5-Pin DIN, Male
2
3
5 4
1
3
1 2
4
5 6
6-pin Mini DIN, Female
4
2 1
3
6 5
6-Pin DIN, Male
