Practical hints
Where will I find...?
Minispare wheel (except CLK 55 AMG)
The Minispare wheel is located in the
storage compartment underneath the
trunk floor.
Removing the Minispare wheel
̈ Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
̈ Loosen the retaining screw in the mid-
dle of storage well casing by turning it
counterclockwise (
୴ page 389).
̈ Remove the storage well casing
(
୴ page 389).

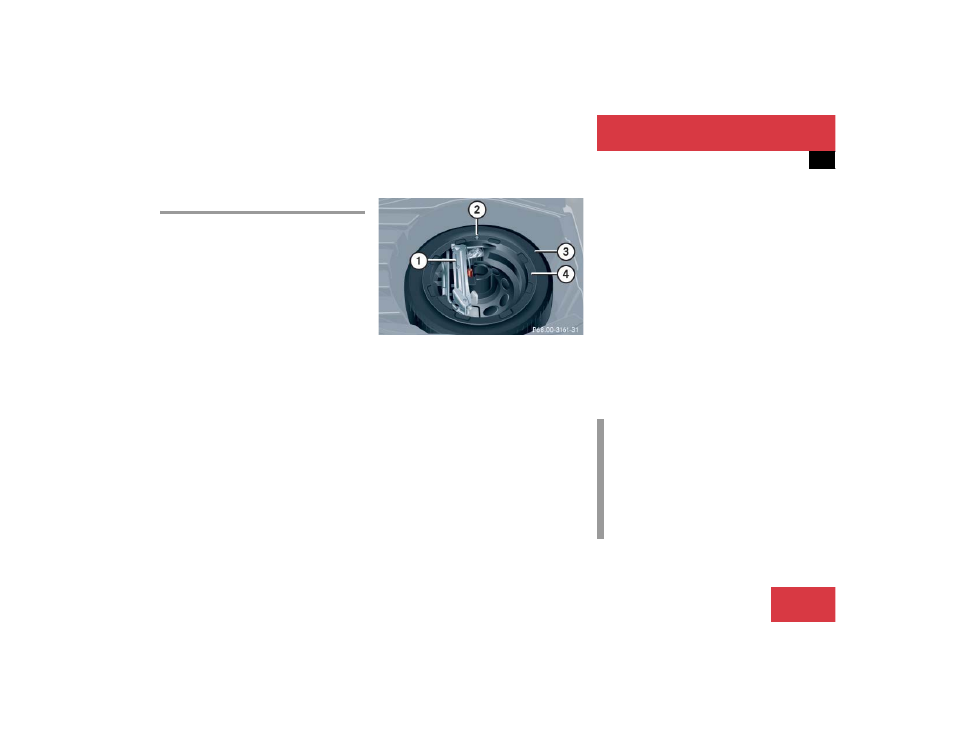

1 Vehicle tool kit
2 Arrow
3 Minispare wheel
4 Vehicle tool kit storage well casing
̈ Remove vehicle tool kit storage well
casing 4.
̈ Remove Minispare wheel 3.
Storing the Minispare wheel
̈ Place Minispare wheel 3 in wheel
well.
̈ Place vehicle tool kit storage well
casing 4 over the Minispare wheel.
Make sure arrow 2 on vehicle tool kit
storage well casing 4 points in the
direction of travel.
̈ Place storage well casing ( ୴ page 389)
over vehicle tool kit storage well
casing 4 and turn the retaining screw
(
୴ page 389) clockwise as far it will go
to secure the Minispare wheel.
i
Arrow 2 on vehicle tool kit storage
well casing 4 must point in the
direction of travel. Otherwise you
cannot place the storage well casing
(
୴ page 389) on top and secure the
Minispare wheel with the retaining
screw (
୴ page 389).
