YM26SS PARTS LIST
Item Part No. Description
1 753-04294 Throttle HousingAssembly (includes 2 & 3)
2 791-610314 Throttle Trigger Spring
3 753-04295 Throttle Trigger
4 753-04503 Upper Drive Shaft Housing Assembly
5 791-180687 J-Handle Assembly
6 791-683295 Handle Bracket Assembly (includes 7-12)
7 791-181811 Screw
8 791-181812 Upper Handle Clamp
9 791-181813 Middle Handle Clamp
10 791-181814 Lower Handle Clamp
11 791-181815 Nut
12 791-145569 Anti-Rotation Screw
13 791-182928 Split Boom Coupler (includes 14-17)
14 791-182057 Screw
15 791-181617 Bolt
16 791-181618 Adjustment Knob (Includes 17)
17 753-04386 Knob Retaining Nut
18 753-04089 Lower Drive Shaft Housing Assembly
19 753-05182 Lower Flexible Drive Shaft
20 791-145569 Anti-Rotation Screw
21 753-05188 Gearbox Assembly (includes 25-37)
22 791-180547 Shield Mounting Hardware
23 791-180548 Shield Assembly (includes 24)
24 791-180553 Blade Assembly
25 791-181457 Outer Spool Assembly (includes 26)
26 791-181458 Retainer
27 791-181561 Thrust Washer
28 791-181459 Small Spring
29 753-04257 Slider
30 791-181532 E-Clip
31 791-181531 Spring
32 791-181462 Plunger
33 791-181463 C-Clip
34 791-181464 Inner Reel
35 791-181465B Large Spring
36 791-181467 Foam Seal
37 791-181468 Bump Head Knob Assembly (Includes 35 & 36)
Optional Accessories
* 791-181472 Replacement Line, 0.80 Diameter
(Eight - 10 ft lengths)
* 791-181460B Reel and Line Assembly
* 791-682075B Shoulder Strap Assembly
* Items Not Shown
1
15
16
13
17
18
1
5
6
7
8
10
9
11
12
14
4
3
2
20
19
23
28
26
29
30
27
21
22
24
34
32
31
36
33
34
37
25
22

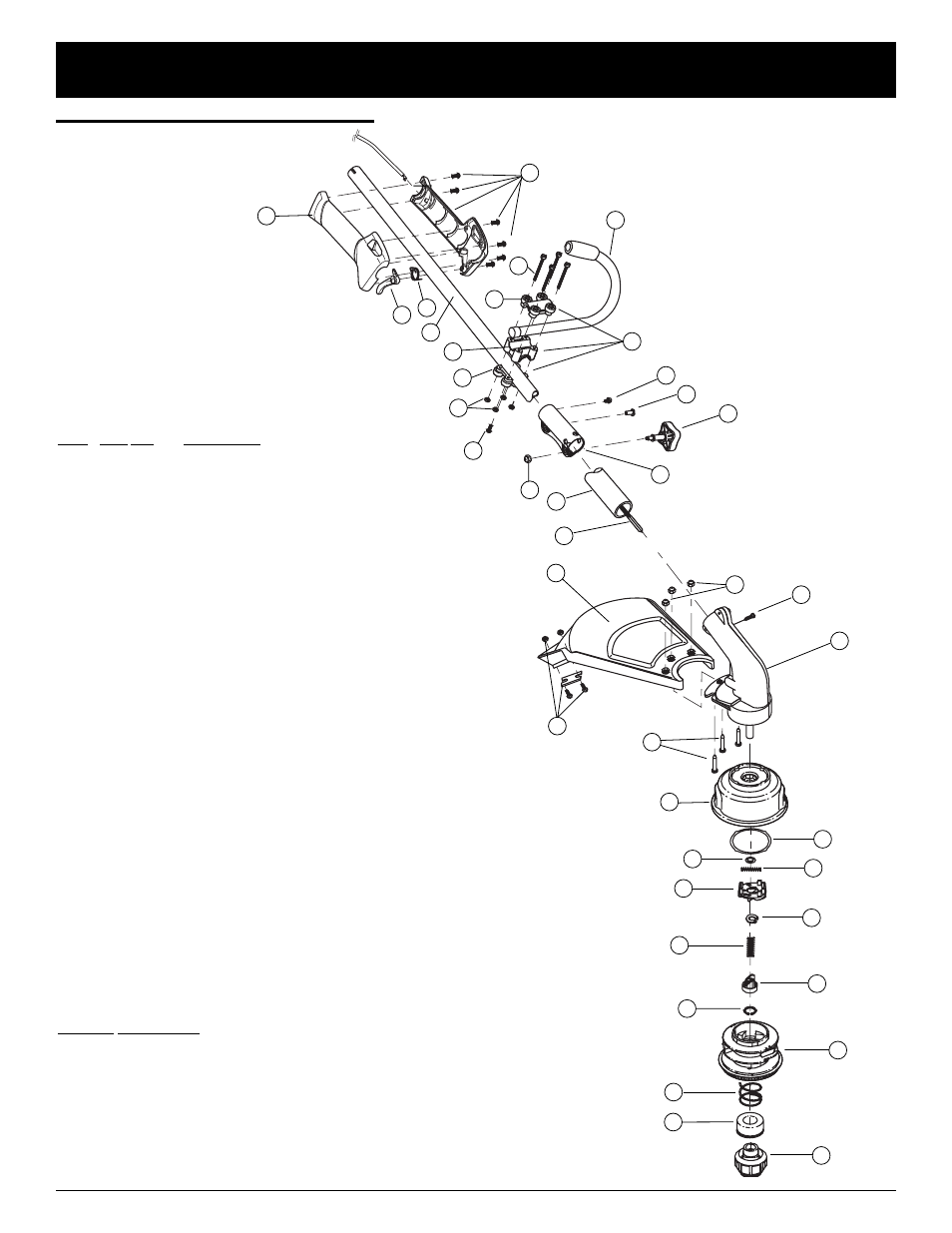

BOOM AND TRIMMER PARTS - MODEL YM26SS
4-CYCLE GAS TRIMMER
