- 14 -

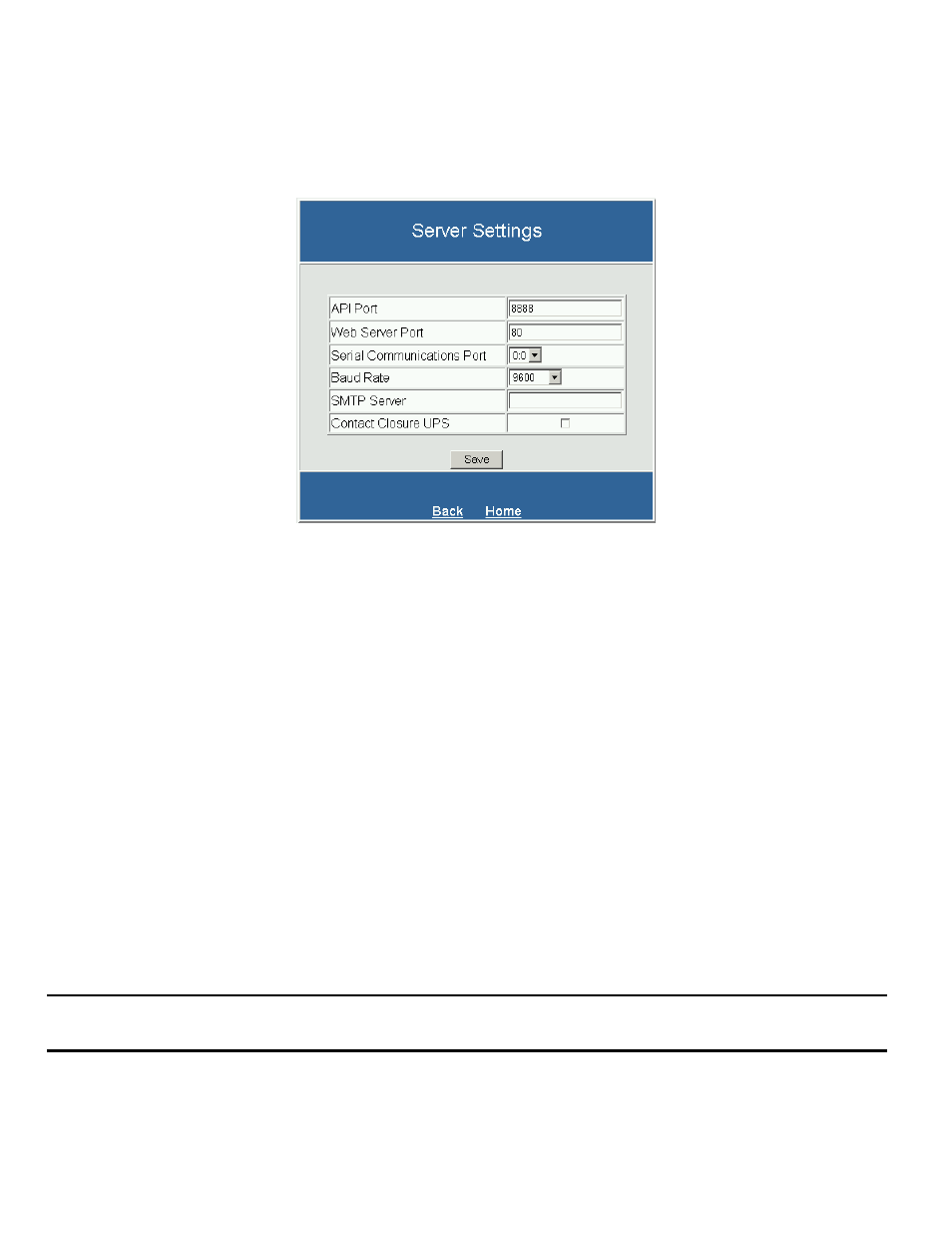

Server Settings
The Server Settings page contains the configurable settings for the SentryII server. If your server requires values other than the
defaults, enter the correct values and select Save. A message will be displayed confirming that the changes have been saved.
The following is a description of the fields contained on this page:
• API Port SentryII’s API communications port. The default port 8888 may be changed if it
conflicts with another service running on the computer. (NOTE: This port is used to
communicate with all SentryII Remote clients.)
• Web Server Port
SentryII uses this port to communicate with a web browser. The default port 80 may be
changed if it conflicts with another web server running on the computer.
• Serial Communications Port
SentryII uses this port to communicate with the UPS. Select the port the UPS has been
connected to.
• Baud Rate
SentryII communicates with the UPS using this baud rate. This rate will be auto detected
from the UPS when the SentryII service is started. If not, please refer to the
documentation provided with your UPS.
• SMTP Server The SMTP server name or IP address supplied here will be used to send email
notifications.
• Contact Closure UPS Select this checkbox if the UPS supports contact closure and you would like SentryII to
use this mode. (NOTE: Units connecting to an AS400 computer will benefit most from
this feature. Contact Closure requires a non-standard communications cable. Part #
35000015)
NOTE: If the UPS is connected to any com port other than com 1 the default page will not display until the required com port is
selected and your web browser is restarted.
