E26

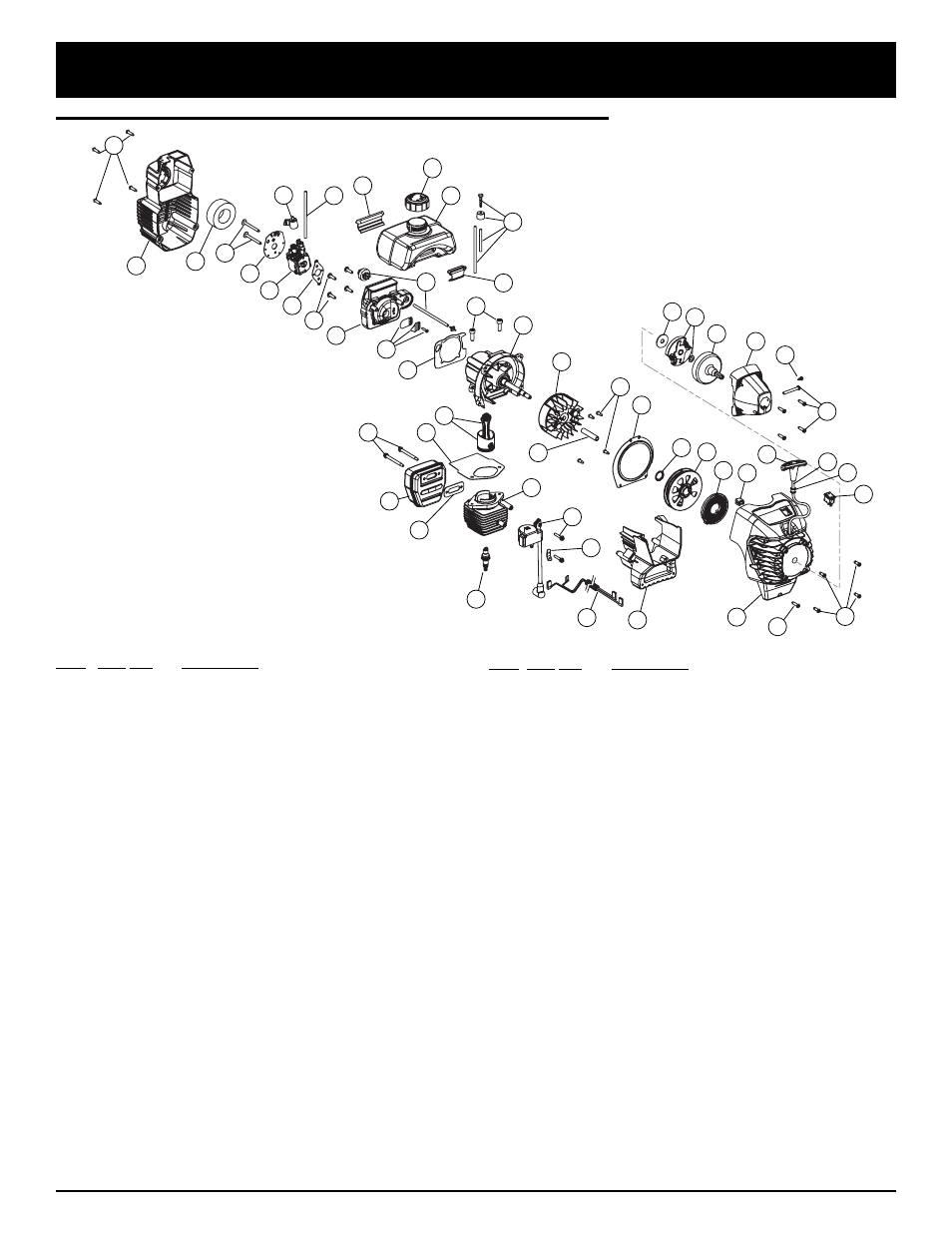

PARTS LIST
2
3
6
8
10
4
5
9
12
11
13
50
49
18
51
19
14
15
16
17
34 35
36
20
26
24
25 30
33 40
42
43
48
44
46
47
7
41
38
23
29
37
45
27
1
39
22
28
32
39
39
31
21
Item Part No. Description
1 753-04810 Air Cleaner Cover Assembly (includes 2 & 39)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw Assembly
4 753-1194 Choke Plate
5 753-04227 Choke Lever
6 791-181086 Fuel Return Line
7 753-04338 Carburetor Assembly (includes 8 & 17)
8 791-610675 Carburetor Gasket
9 791-181860 Carb Mount Screw
10 753-1196 Carb Mount Assembly (includes 9, 11 & 13)
11 791-684451 Reed Assembly
12 791-683974B Primer and Hose Assembly
13 753-1208 Carburetor Mount Gasket
14 791-612134 Rear Mounting Pad
15 791-182767 Fuel Tank Assembly (includes 6, 16 & 17)
16 791-182612 Fuel Cap
17 753-04233 Fuel Line Assembly
18 791-145308 Front Mounting Pad
19 753-04401 Crank Case Service Assembly (includes 9)
20 791-182736 Flywheel Assembly
21 791-181525 Spacer
22 753-1202 Pressure Plate Screw
23 753-04928 Pressure Plate (includes 22 & 27)
24 753-04288 Pulley Retainer
25 753-04823 Recoil Pulley Assembly (includes 24)
26 753-04286 Recoil Spring
27 753-04824 Rope Guide Retainer
28 791-611061 Rope Guide
29 791-613103 Rope
30 791-181079 Pull Handle
31 791-182673 Switch
32 791-181862 Housing Screw
33 753-04905 Starter Housing Assembly (includes 22-32 & 39)
Item Part No. Description
34 791-182396 Clutch Washer
35 791-182369 Clutch Rotor Assembly
36 791-153592 Clutch Drum Assembly
37 753-04889 Clutch Cover Assembly (includes 38 & 39)
38 791-182519 Anti-Rotation Screw
39 791-181345 Cover Screw
40 753-04702 Shroud Extension & Stand (includes 39)
41 753-05023 Wire Leads
42 791-611063 Ground Tab
43 753-04324 Module Assembly
44 791-610311B Spark Plug
45 753-05169 Muffler Assembly
(includes 46, 47 & Spark Arrestor)
46 753-04619 Exhaust Gasket
47 753-04620 Muffler Mounting Bolt Assembly
48 753-04814 Cylinder Assembly (includes 49 & 51)
49 753-04182 Cylinder Gasket
50 753-04367 Piston and Rod Assembly
51 791-182723 Cylinder Bolt
* 753-1209 Piston Ring Set
* 753-04812 Short Block Assembly (includes 9, 19, 44, 48-51)
* 791-181599 Clutch Springs (Qty. 2)
* Items Not Shown
ENGINE PARTS - MT725
2-CYCLE GAS TRIMMER
