SECTION 2
INSTALLATION
13
WARNING
DO NOT USE CONDUIT FOR
GROUND CONNECTION.
CAUTION
IT IS RECOMMENDED THAT THE OVEN
BE PLACED UNDER A VENTILATION
HOOD FOR ADEQUATE AIR SUPPLY
AND VENTILATION.
ELECTRIC SUPPLY TO BE
PROVIDED BY CUSTOMER
CIRCUIT BREAKER
A seperate circuit breaker with lockout/tagout electrical
shutoff is required for each, seperately wired oven.
See breaker sizing requirements below:
ELECTRICAL SPECIFICATIONS
NOTE: Please refer to page 2, Electrical Specifications
chart and your units data plate information, for more
detailed information.
DOMESTIC: 208V, 60 Hz, 14.4 kW, 50A Service
240V, 60 Hz, 14.4 kW, 50A Service
480V, 60 Hz, 17.4 kW, 30A Service
Do NOT use conduit for ground.
or
EXPORT: CE MODEL
208V, 50/60 Hz, 14.4 kW, 50A Service
230-240V, 50/60Hz, 13.2/14.4 kW, 50A Service
380V, 50/60 Hz, 17.4 kW, 25A Service
Do NOT use conduit for ground.
POWER RATING
14.4 kW Standard
17.4 kW Optional
UTILITY ROUGH-IN DIMENSIONS AND POSITIONING
FOR PS624-SERIES OVENS
SUPPLY WIRE
Supply wire size must be in accordance with the
National Electrical Code (current edition) and must be in
compliance with local codes.
SUGGESTED
If space permits, service should be located near the
control console end of the oven(s) to allow convenient
access to safety switches.
II. VENTILATION GUIDELINES
Use of a ventilation hood is not required for proper
operation, but installation must conform with all local
codes and regulations.
Local codes and conditions vary greatly from one area to
another and must be complied with. Following are the
suggested requirements for good ventilation. Please re-
member these are recommendations or guidelines, you
may have a special condition or problem that will require
the services of a ventilation engineer or specialist. Proper
ventilation is the oven owner’s responsibility. Improper
ventilation can inhibit oven performance.

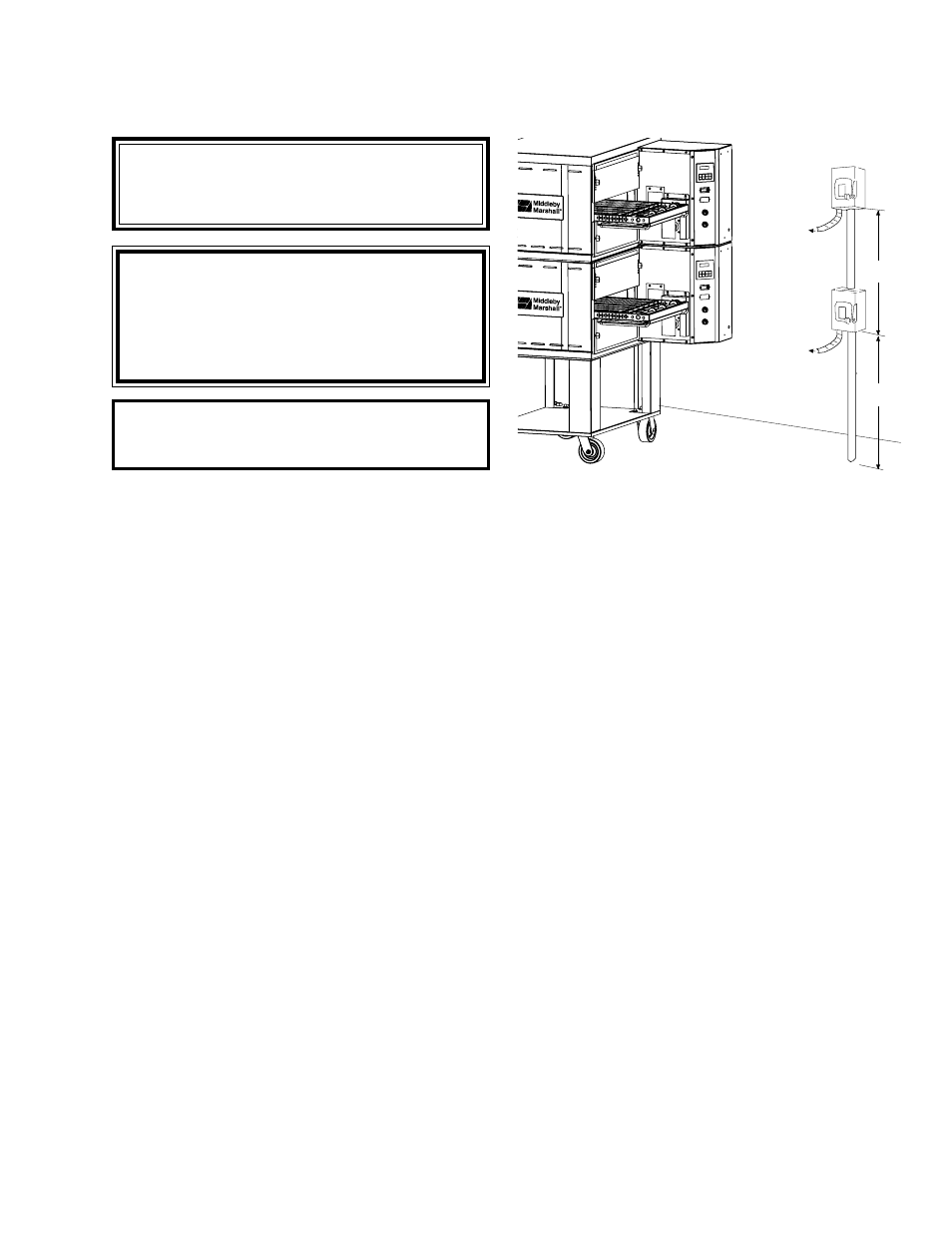

Figure 2-9. Typical PS624-Series Oven(s)
Installation
MM
/.
/&&
/.
/&&
MM
3UGGESTED
REQUIREMENTS
4O
4O
Suggested dimensions are shown; utility code
requirements supersede any factors shown.
