MSI MS-7304 User Manual
Page 18
2-6
M S-7304 M ainboard
These DIMM slots are intended for memory modules.
For more information on compatible components, please visit http://global.msi.com.
tw/index.php?func=testreport
1
DIMM1
DIMM2
DIMM3
DIMM4
2
DIMM1
DIMM2
DIMM3
DIMM4
3
DIMM1
DIMM2
DIMM3
DIMM4

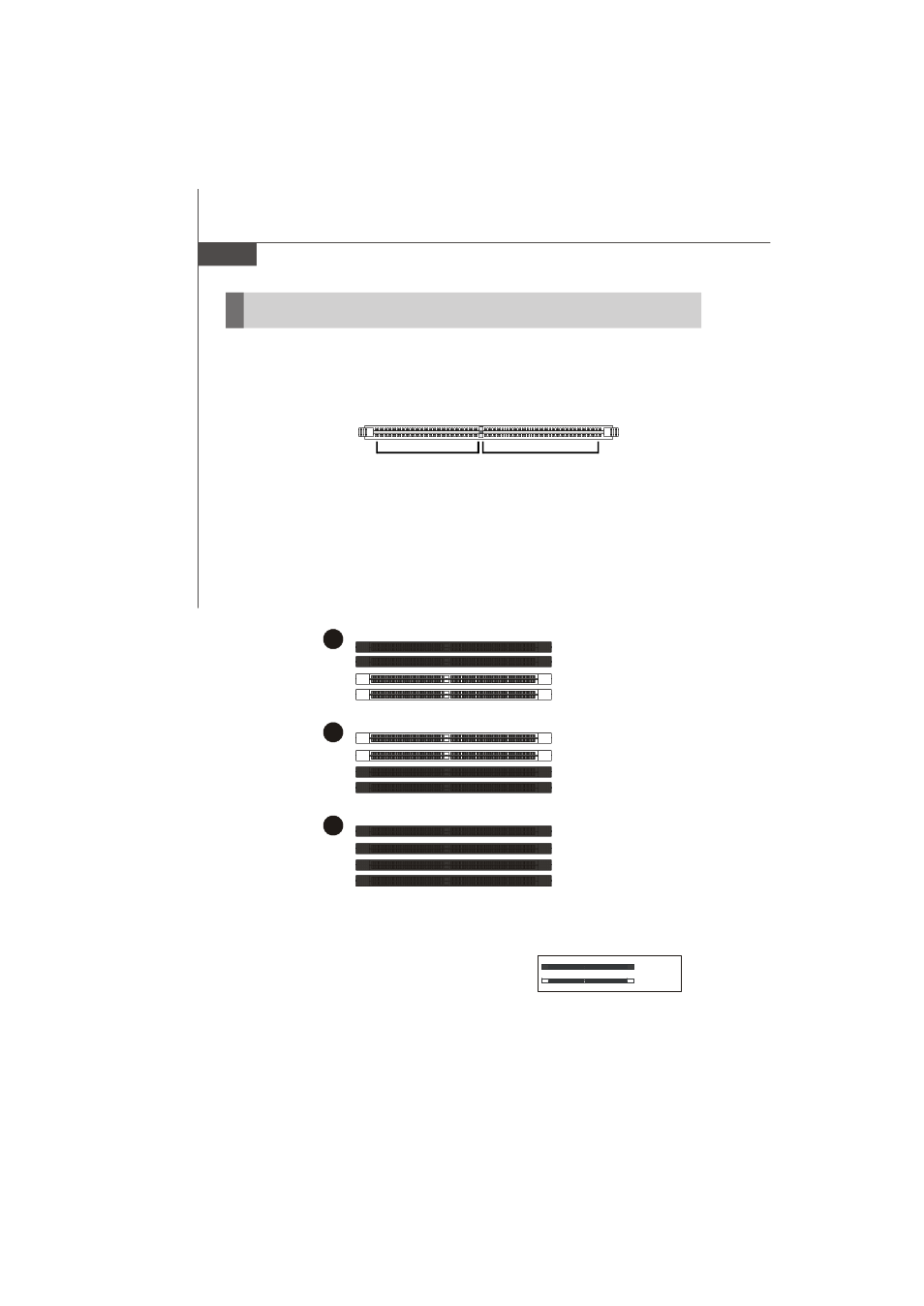

Dual-Channel Memory Population Rules
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please refer to the following illustrations for population rules under
Dual-Channel mode.
Empty
Installed
Memory
DDR2
240-pin, 1.8V
64x2=128 pin
56x2=112 pin
