3 INSTALLATION
THROUGH-THE-WALL POWER UNIT INSTALLATION 3-5

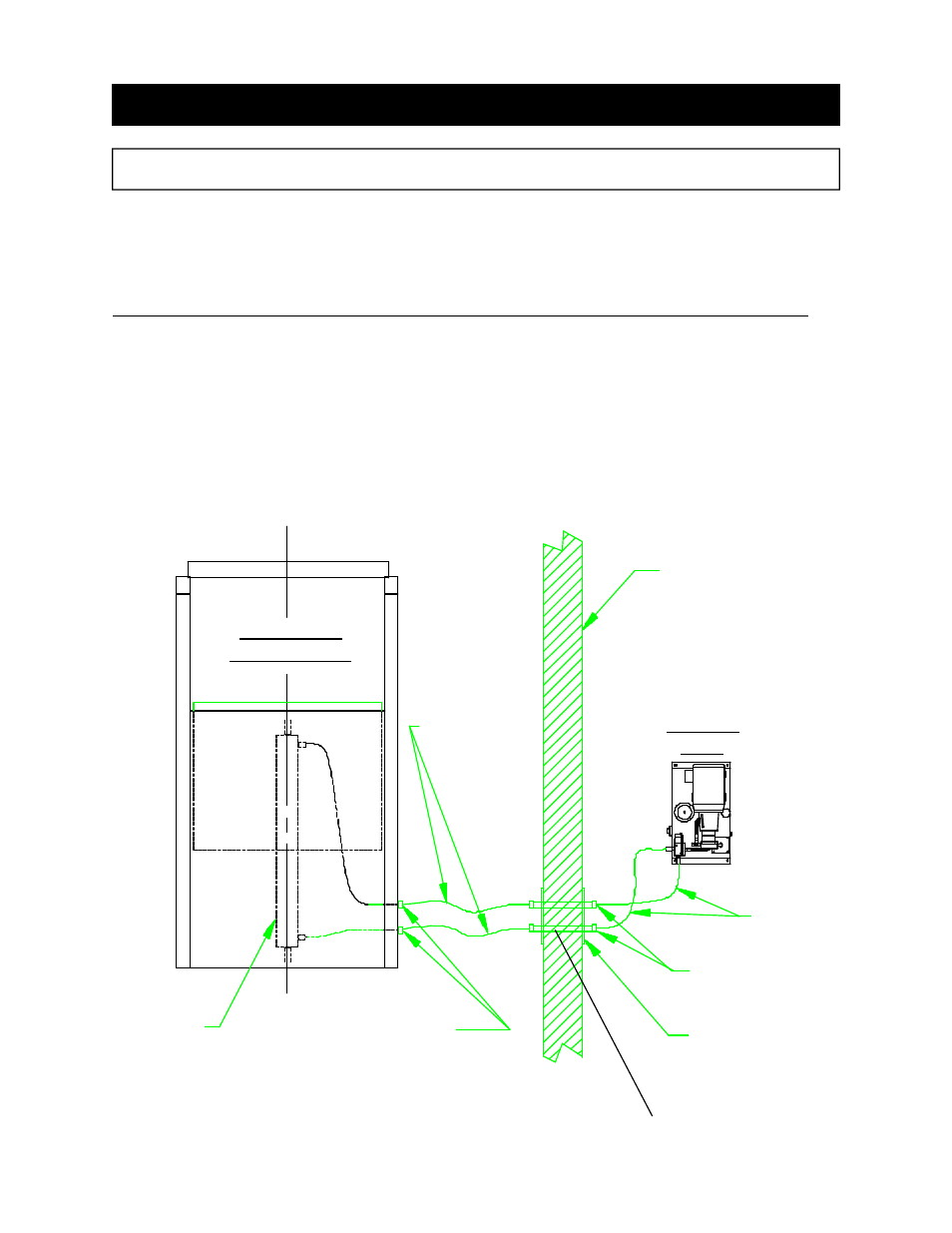

If the remote power unit is to be mounted through-the-wall, the following list of material
and diagram is the suggested method.
List of Material
Item No. Quantity Description
1
2 Hydraulic Hose, Hi-Pressure (sized to power unit*), 36” long
2 2 Pipe, Sch 80 (sized to power unit*), 36” long
3 2 Hydraulic Hose, Hi-Pressure (sized to power unit*), 48” long
4 2 Steel plate with holes for Item No. 2, 3/16” x 8” x12”
5 4 Coupling, Female (sized to fit hose & pipe*)
6 3 Coupling, Male x Female Swivel
* 1/2” for runs of 20’-0” or less. Consult factory for longer runs.
WALL
ITEM #1
ITEM #5
ITEM #4
EACH SIDE
ITEM #3
ITEM #6
ITEM #2
CYLINDER
TOP VIEW -
COMPACTOR
POWER
UNIT
A
A
B
B
