7

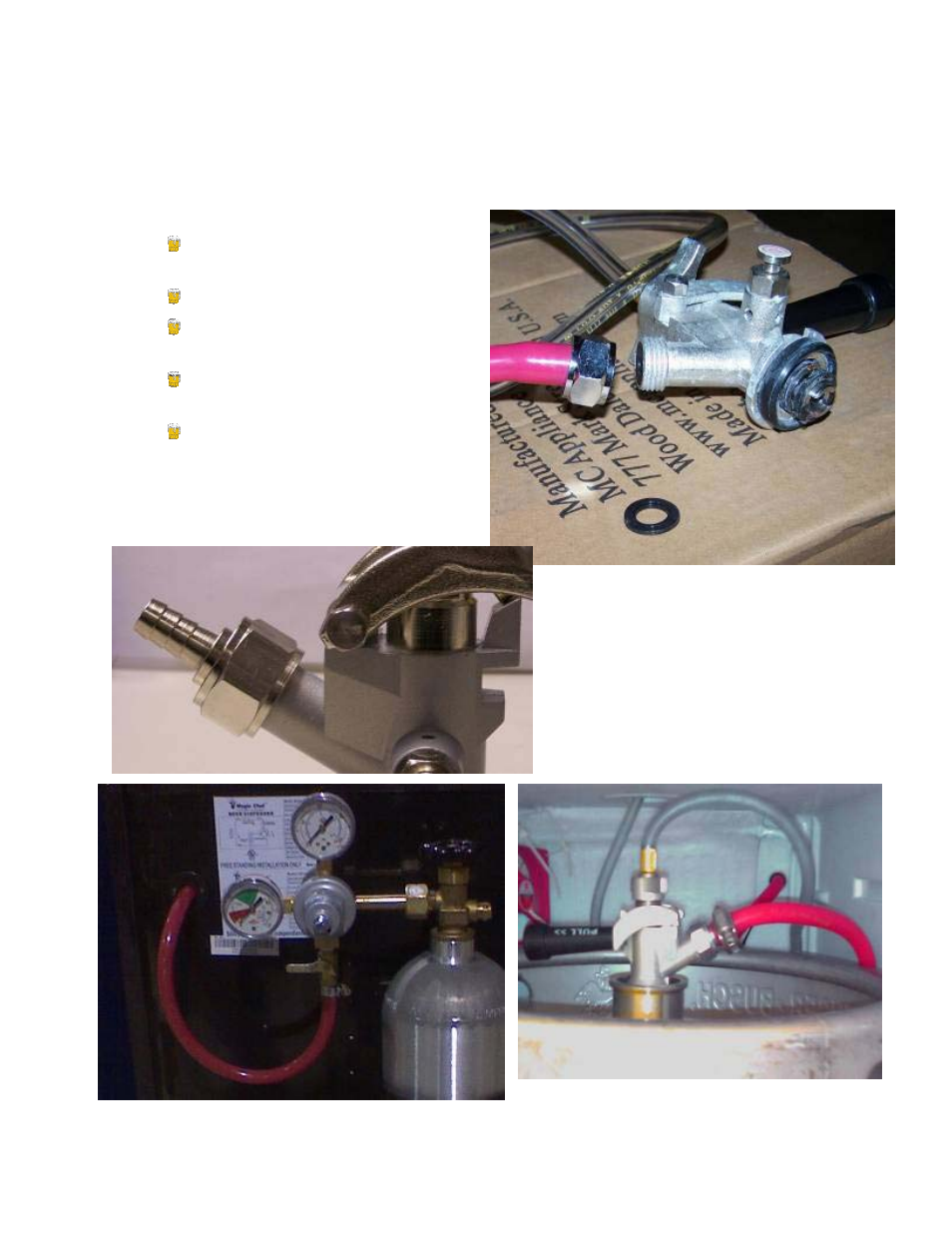

Red Air Hose
The red air hose is the red tube the runs between the bottom of the regulator (under the
secondary cut off valve) and the coupler
5/16” Inner Diameter and 9/16”
Outer Diameter
Hose is 5’ long
Attaches to bottom of regulator with
hose clamp
Runs from regulator through hole in
back of cooler to the interior
Attaches to coupler with hex nut
Above: Red Hose and barbed connector
assembled, ready to attach to coupler via
the hex nut. Notice washer, which goes
into this connection.
Below: Barbed connector where Red Hose
connects to Coupler. Hex nut holds and secures
connector in place
Red air hose running from regulator through hole
to interior of unit.
Red air hose coming in through hole and
attached to coupler inside cooler.
