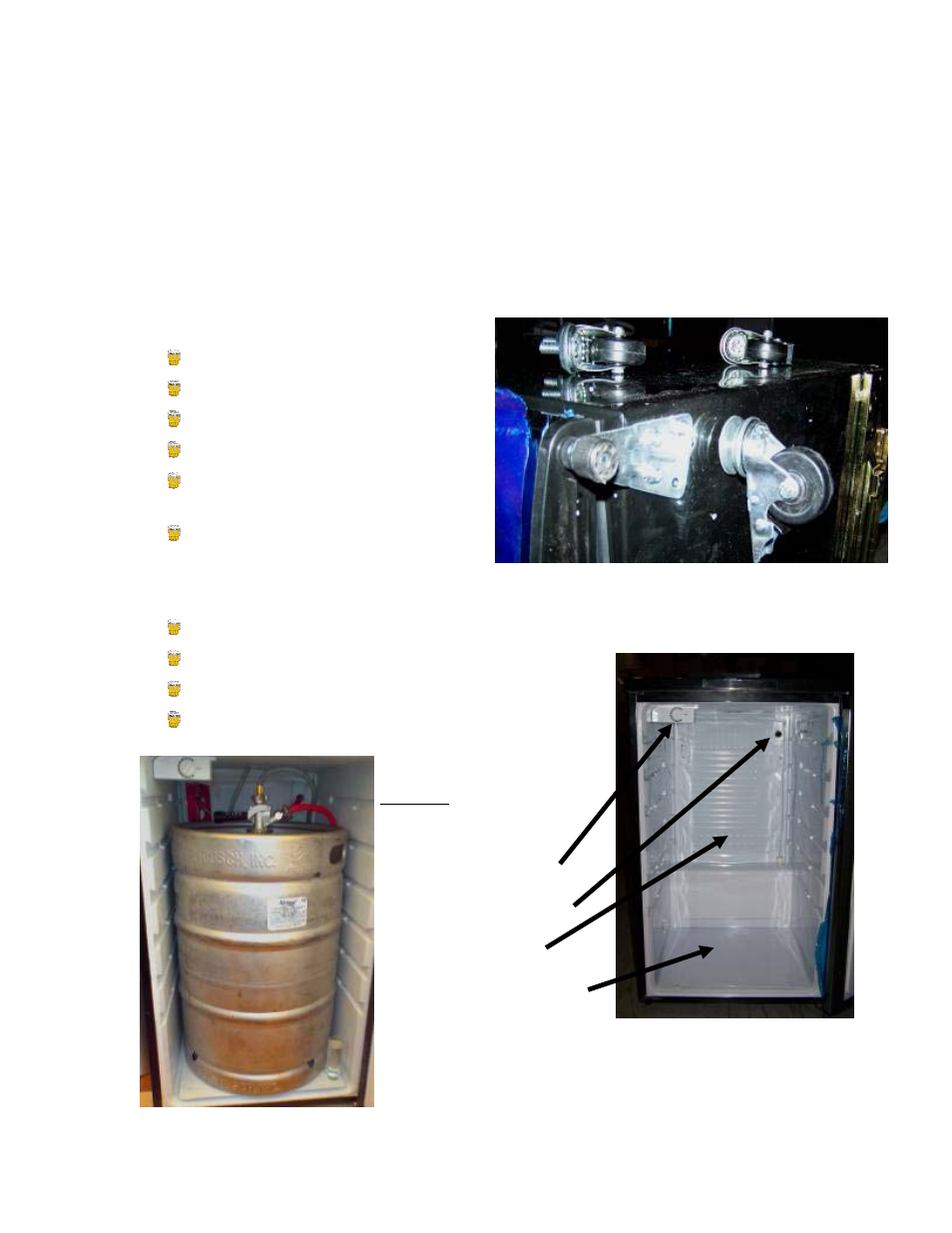

Parts / Components
Main Cooler
This is the refrigerator part of the Keg Cooler. It is a small refrigerator with holes to
allow for the hoses and beer tower. There is a thermostat dial inside the front of the unit at the
top left that controls the temperature in the unit. The ‘cold’ is generated from a cold plate in the
rear of the unit.
Castors
Elevate the unit
Allow unit to be easily moved
Can be locked for stability
Necessary for door to work properly.
Front castors use metal washers to
distribute weight
Rear Castors screw to metal frame of
the unit
Interior
The inside of the refrigerator
Where the Keg goes
Has metal plate at bottom to hold kegs weight
Thermostat is accessed inside
Attached Front Caster w/ Washer
Thermostat Control
Hole for Red Air Hose
Rear Cooling Plate
Metal Plate to put keg on
Cooler w/ Keg of
Bud in it
