4-7. Volt-Ampere Curves
194 397 / 194 398 / 194 399

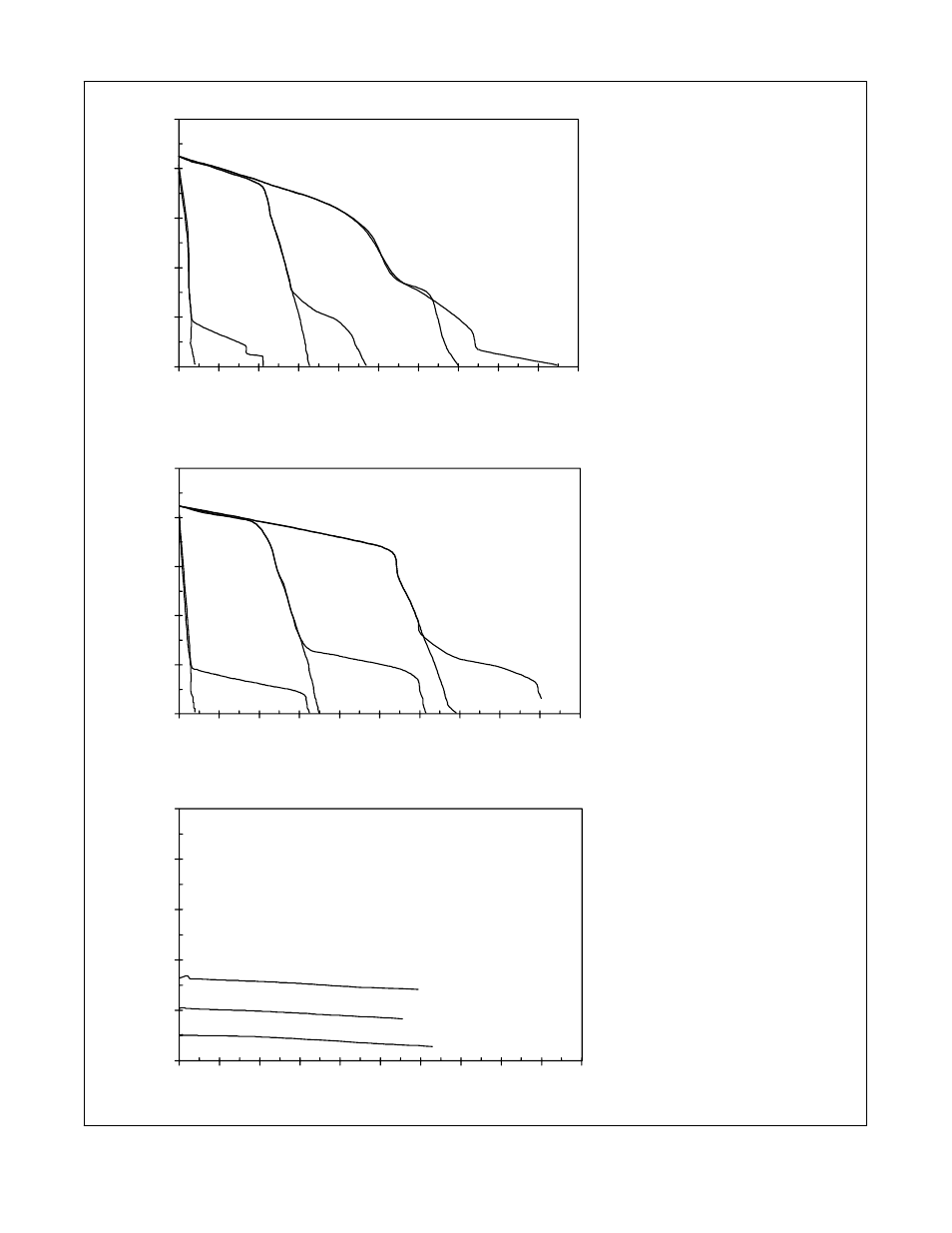

The volt-ampere curve shows the
minimum, medium, and maximum
voltage and amperage output capa-
bilities of the welding generator.
Curves of all other settings fall be-
tween the curves shown.
A. CC/DC − Single Mode
B. CC/DC − Dual Mode
C. CV/DC Mode
0
20
40
60
80
100
0 100 200 300 400 500 600 700 800 900 1000
DC AMPERES
DC VOL
TS
MIN MED MAX
0
20
40
60
80
100
0 50 100 150 200 250 300 350 400 450 500
DC AMPERES
DC VOL
TS
MAX MED MIN
0
20
40
60
80
100
0 100 200 300 400 500 600 700 800 900 1000
DC AMPERES
DC VOL
TS
MIN
MED
MAX
