OM-494 Page 11

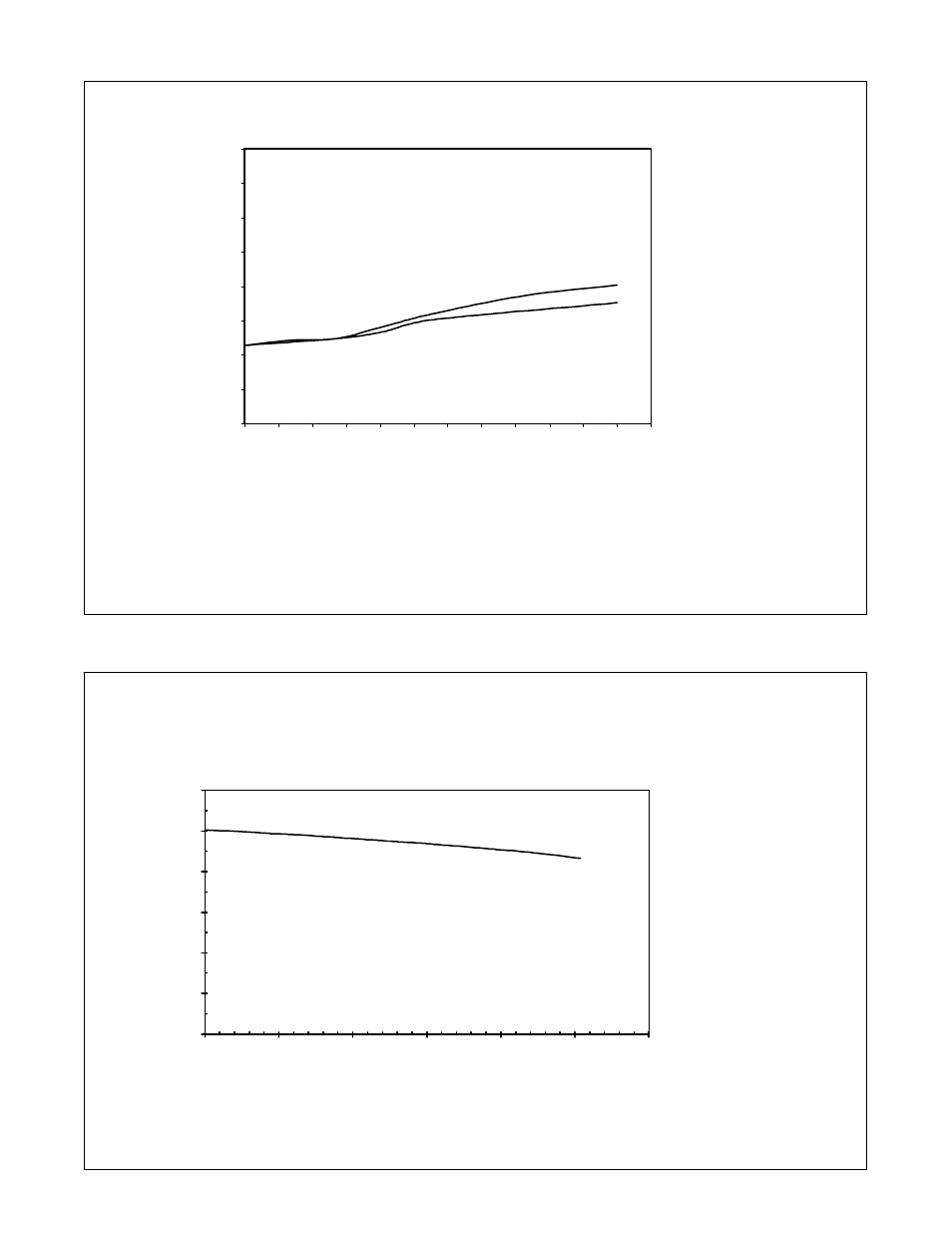

4-4. Fuel Consumption
The curve shows typical fuel use un-
der the combined weld loads of both
sides (Welder A and Welder B).
195 711
0 50 100 150 200 250 300 350 400 450 500 550 600
DC WELD AMPERES AT 40% DUTY CYCLE
CV
CC
0
0.25
0.50
0.75
1.00
1.25
1.50
1.75
2.00
0.40
0.21
0.62
0.83
1.25
1.04
1.46
1.70
1.98
0.95
2.84
3.78
5.67
4.73
6.62
7.57
U.S. GAL./HR. IM
P. GAL./HR. LITERS/HR.
4-5. AC Generator Power
193 018
The ac power curve shows the gen-
erator power in amperes available
at the 120 and 240 volt receptacles.
0
50
100
150
200
250
300
0 5 10 15 20 25 30
AC AMPERES IN 240V MODE
AC VOL
TS
0
25
50
75
100
150
125
0 10 20 30 40 50 60
AC AMPERES IN 120V MODE
