SERVICE CHANGES

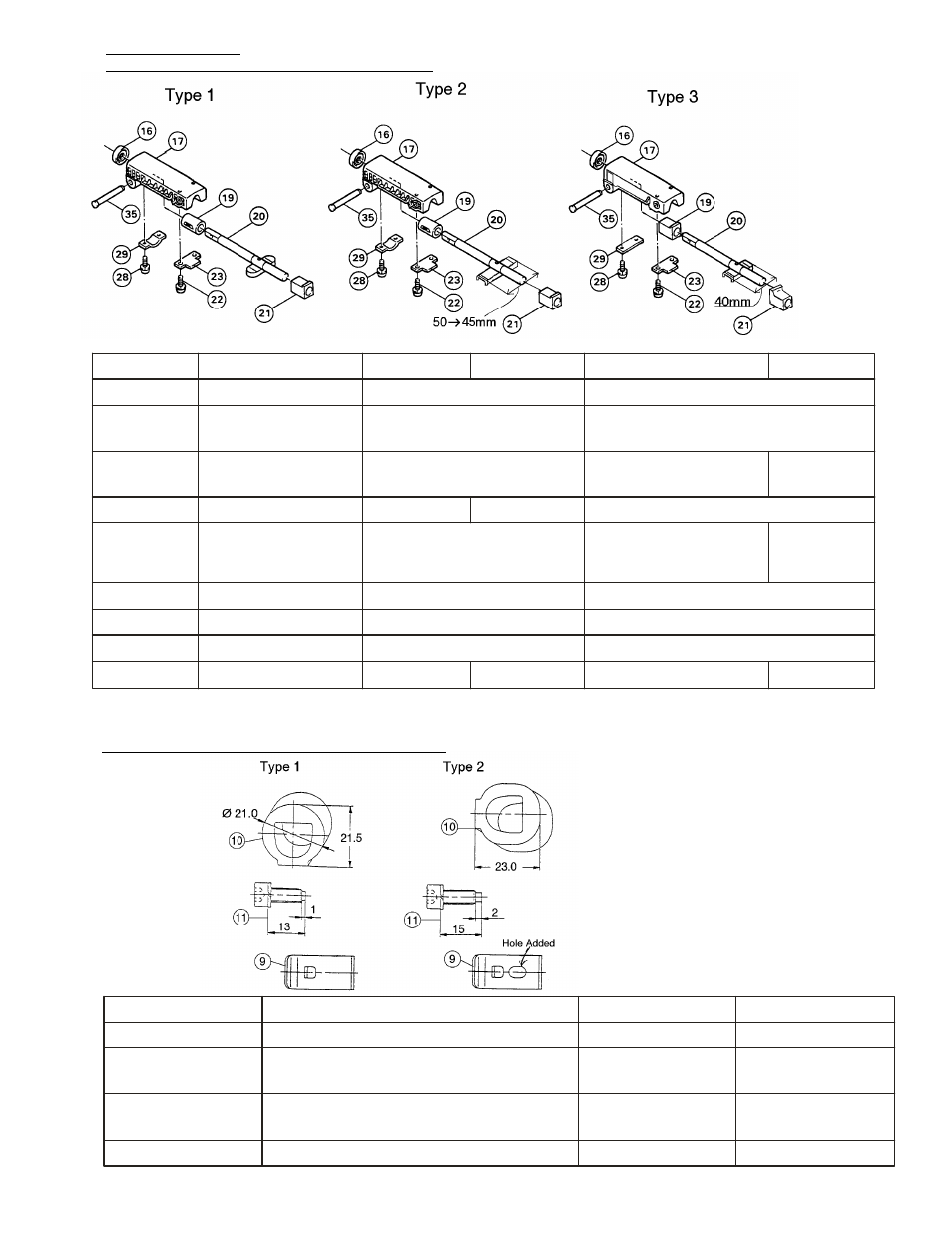

1. Change on Slider Support, Slider, Dust Seal etc.,
Item No. Description Type 1 Type 2 Type 3 Type 4 (MCA)
16 Dust Seal 213170-8 (12) 213171-6 (12.7)
17 Slider Support 415172-2(Plastic)
(No Longer Available)
316765-7
(Aluminium)
19 Linear Ball Bearing/
Plane Bearing 211135-4 (1228) 214161-2 (12.7)(MJ)
214157-3 (12.7)(MCA)
214167-0
20 Slider 168250-4 168268-5 168281-3
21 Plane Bearing 12.7 214161-2 214161-2 Turn in opposite
direction to Item 19 (MJ)
214157-3 (MCA)
214167-0
22, 28 Screw M5 x 16 911621-2 (P.H.) 266086-6 (H.S.H.)
29 Plate 344048-5 (A) 341462-6
35 Pin 7 256681-0 268012-1
Serial No. ~ 8638E 8639E ~ 13938E 13939E ~ TBA
Type 2 Slider replaces Type 1 Slider.
There are 2 kinds of Type 2 Slider (Replacement parts). One Type 2 Slide Block has a width of 50mm & the improved
3 Model JR3020
Item No Description Type 1 Type 2
9 Leaf Spring 232129-6 232165-2
10 Blade Clamp 313067-2
(No Longer Available)
313075-3
11 Hex Socket Head Bolt 265986-7 M5x13
(No Longer Available)
266090-5 M5x15
Serial No. ~ 17195E 17196E ~
2. Change on Blade Clamp and Hex Socket Head Bolt.
