Pin assignments for db9 and db25 connectors – Moxa Technologies 5600 User Manual
Page 79
NPort 5600 Series User’s Manual
Pinouts and Cable Wiring

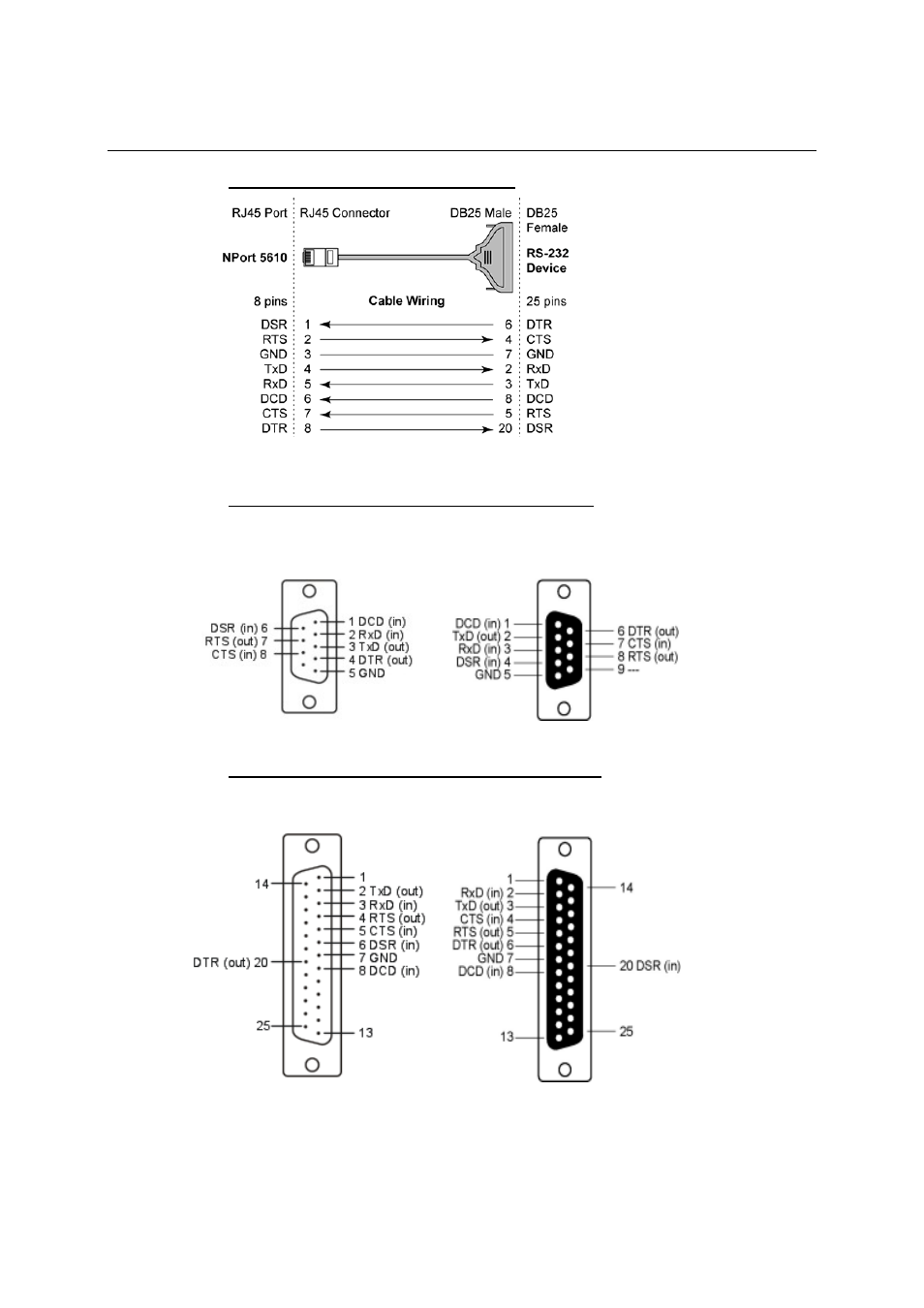

RJ45 (8 pins) to DB25 Male for NPort 5610
Pin Assignments for DB9 and DB25 Connectors
Pin Assignments for DB9 Male and Female Connectors
DB9 Male Connector
DB9 Female Connector
Pin Assignments for DB25 Male and Female Connectors
DB25 Male Connector
DB25 Female Connector
A-5
