Page 10
NPort 5600 Series User’s Manual
Getting Started

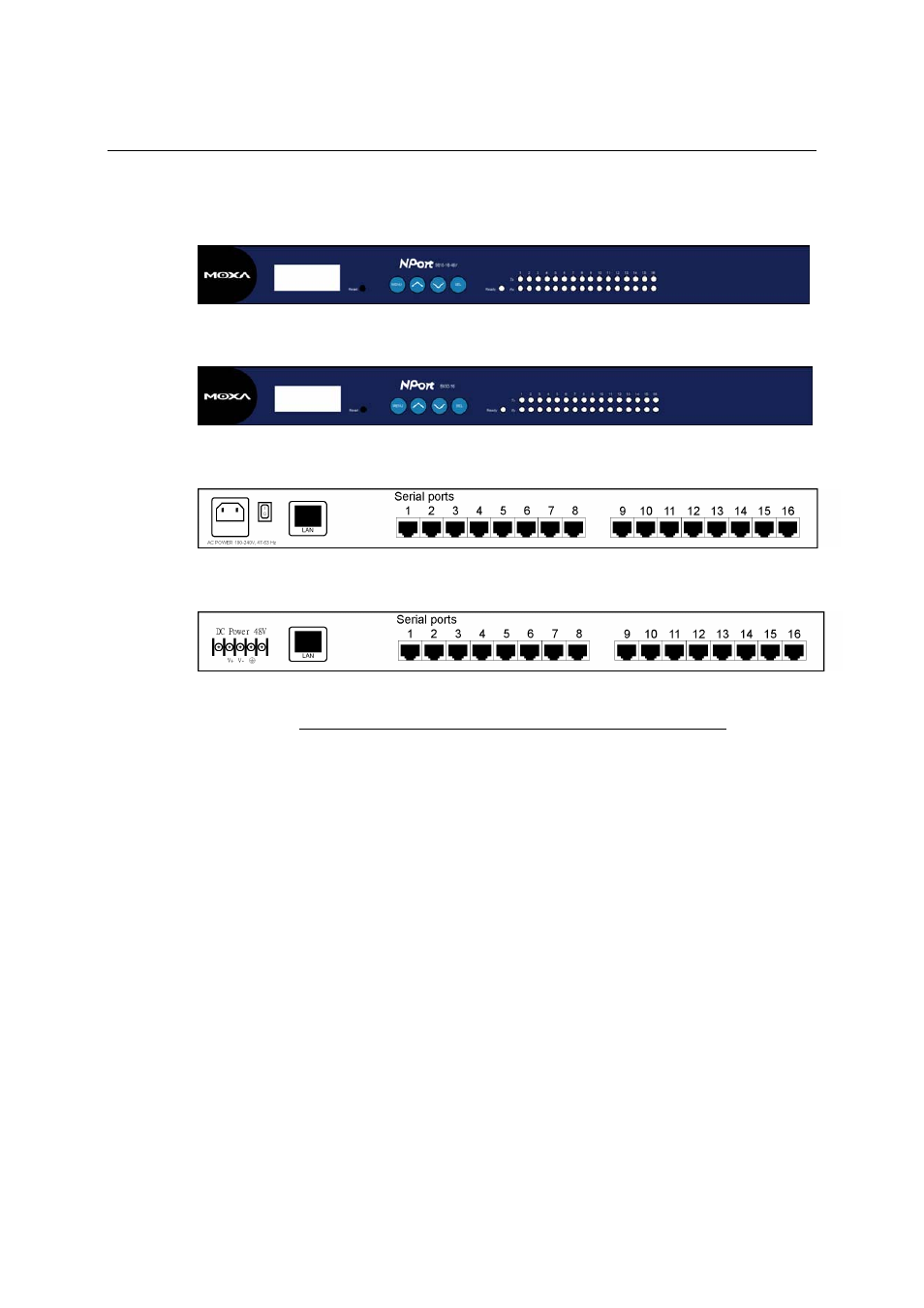

Panel Layout
Front panel of NPort 5610-16-48V
Font panel of NPort 5630-16
Rear panel of NPort 5610-16 (AC Power)
Rear panel of NPort 5610-16 -48V (DC Power)
Reset Button—Press the Reset button continuously for 5 sec to load factory defaults: Use a
pointed object, such as a straightened paper clip or toothpick, to press the reset button. This will
cause the Ready LED to blink on and off. The factory defaults will be loaded once the Ready LED
stops blinking (after about 5 seconds). At this point, you should release the reset button.
2-2
