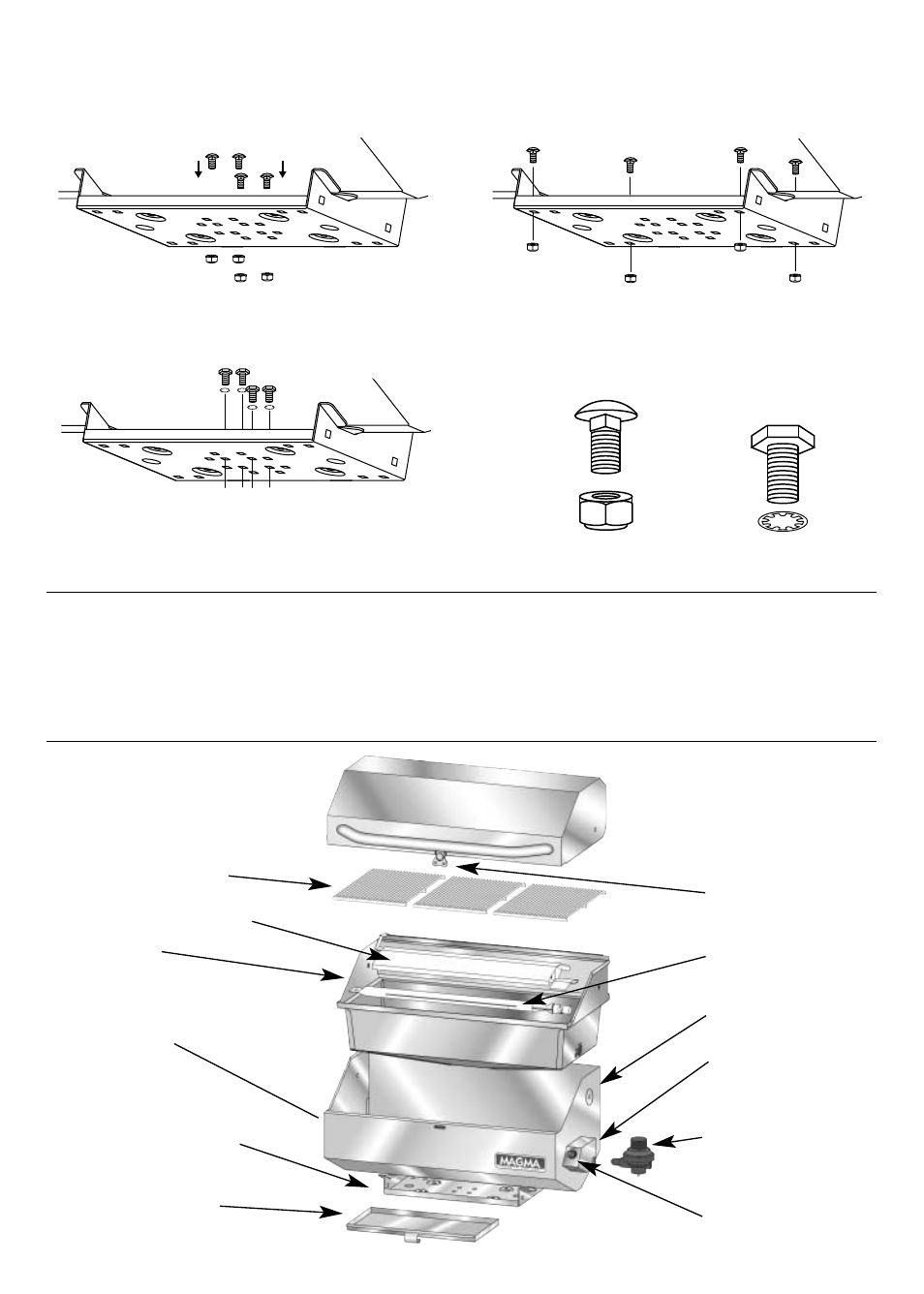

Burner
Lid Lock
Grill Grates
Radiant Plate
Outer Shell
Liner
Match Light
Hole
Mount
Support Pad
Valve Chamber
Piezo Igniter
Slide Out
Grease Tray
ON-BOARD FUEL SYSTEMS APPLICATION
•For on-board LPG (Propane) Systems, use Magma Type 3-Low Output-
Low Pressure LPG Control Valve and Magma Low Pressure LPG Hose Kit.
•For on-board CNG (Natural Gas) Systems, use Magma Type 4-Low Output-
Low Pressure Natural Gas Control Valve.
Single mount non-through-bolt
applications, including Style 1 “Levelock”
4 Hex head bolts & lock washers.
MOUNT HARDWARE
Fasteners are supplied for both Single Mount and Dual Mount grill mounting
options. See Magma Catalog or Website for best mount selection.
Dual mount applications
4 Carriage bolts & lock nuts. Only 4 bolts
required for grill mounting. Place bolts (2 per
side) diagonally from each other as shown.
Hex head bolt
& lock washer Carriage bolt
& lock nut
Single mount through-bolt
applications
4 Carriage bolts & lock nuts.
Control Valve
Regulator
Type 1 Low-
Output Shown
See Magma website for
replacement part numbers
and valve applications.
