K00105 ADAPTER KIT
Installation Instructions
1. Use the K00105 to install 22” B, J, Q, or S-series ice machines on a Manitowoc C-170, C-400, C-470, or C-570 bin.
2. Installation (bin to be level before starting):
A. Remove the hinge on the left side of the bin.
B. Remove the foam tape on the left rail. Trim back the foam tape on the front and rear bin rails, as shown.
C. Position the adapter panel and hinge on bin and fasten with the two existing screws.
D. Using the adapter as a template, drill three 5/32” (4 mm.) holes, .500” (12.7 mm.) deep maximum, in the rear of
the bin (adapter must be level with bin). Warning: Do not drill through interior liner. Attach with the screws
provided.
E. Apply foam tape to the edge of the adapter, as shown. Note: We recommend using RTV at intersections and
along front inside edge of foam tape to prevent water tracking. Use double thickness with S-series ice machines.
3. Refer to ice machine installation manual for ice machine installation procedures.
Manitowoc Ice, Inc.
2110 South 26 th Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879 8008913
Web Site - www.manitowocice.com Rev. 05/12/04

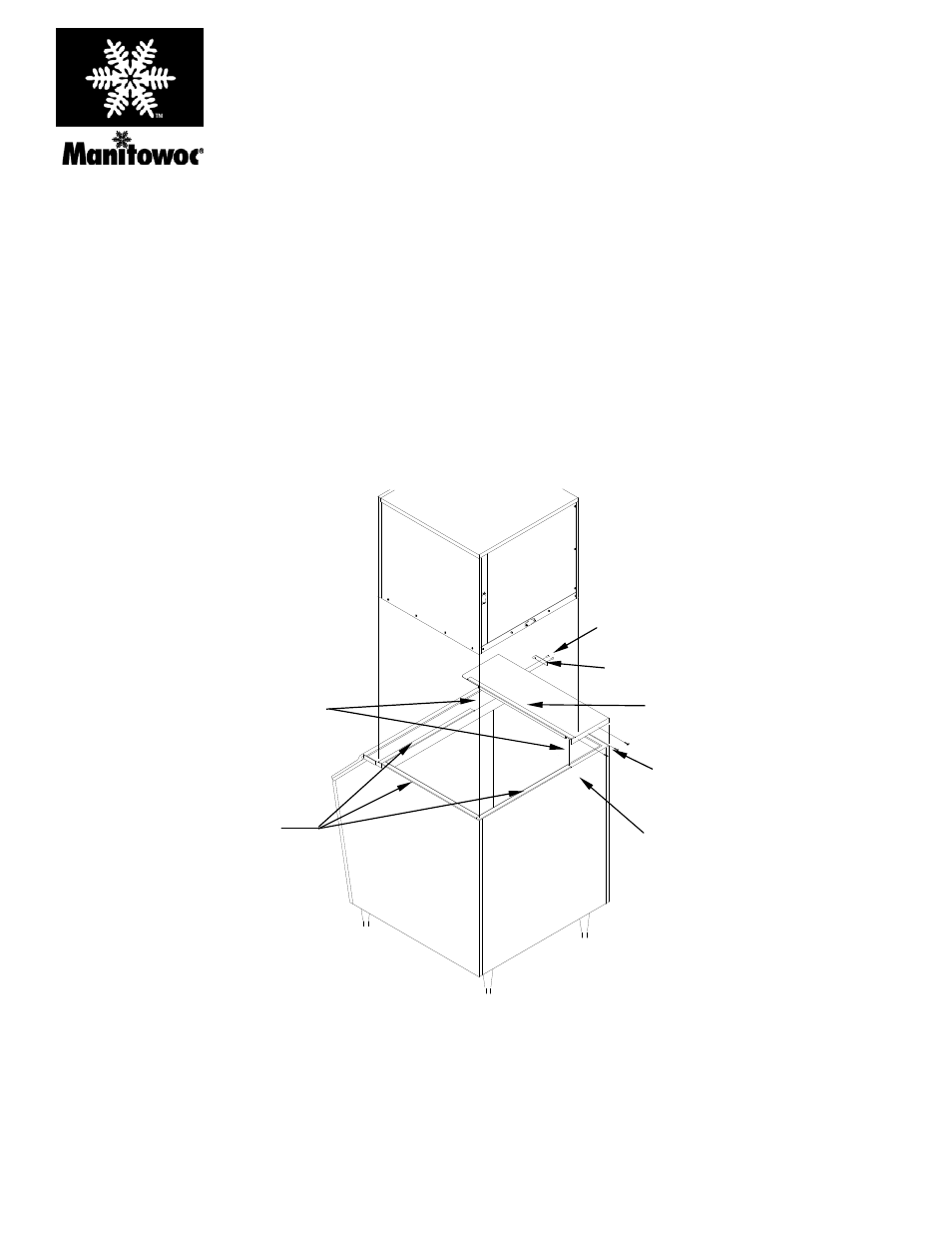

Ice
Machine
Back
Existing two
Screws
Hinge
Foam Tape from Kit (trim to
fit) - Double Thickness of
Tape with S-series
Screws from Kit
Drill three 5/32” dia.
Holes (use Adapter as a
Template to Locate Holes
on Bin)
Trim Back Existing Foam Tape
8 11/16”
IMPORTANT
DO NOT DRILL THROUGH
THE INSIDE OF THE BIN
LINER - ONLY THROUGH
OUTER METAL
Double Thickness of Tape
with S-series
