E – 34
Optical
DMD TM Single Chip Digital Micro Device (DMD TM )
1024
×
768 dots
Lens Manual focus fixed lens
F=3.0
f=23 mm
Lamp High Performance Compact Lamp
Image Size 914 to 5080 mm (36 to 200 in.) diagonal
Projection Distance 1.2 to 6.8m (3.9 to 22.3 ft.)
Light Output 800 ANSI lumens (normally white)
Contrast Ratio 800 : 1
Electrical
Inputs Video (NTSC / PAL / PAL_M / PAL_N / PAL60 / SECAM / NTSC4.43)
RGB (H:15 to 91 kHz, V: 50 to 85 Hz)
Color Reproduction Full color, 16.7 million colors simultaneously.
Resolution SXGA (Compression), XGA(True), SVGA/VGA (Expansion/True)
Power Requirement 100 to 120/220 to 240 V AC, 50/60 Hz
Power Consumption 180 watts
Mechanical
Dimensions Excluding Stand 23.0 cm (W)
×
4.8 cm (H)
×
17.7 cm (D) / 9.0 in.(W)
×
1.9 in.(H)
×
7.0 in.(D)
Net Weight 1.4 kg / 3.1 lbs
Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity
Remote control: 0° to 60°C (32° to 140°F)
Regulations UL Approved (UL 1950, CSA 950)
Meets FCC Class A requirements
Meets EMC Directive (EN55022, EN55024)
Meets Low Voltage Directive (EN60950)
S p e c i f i c a t i o n s

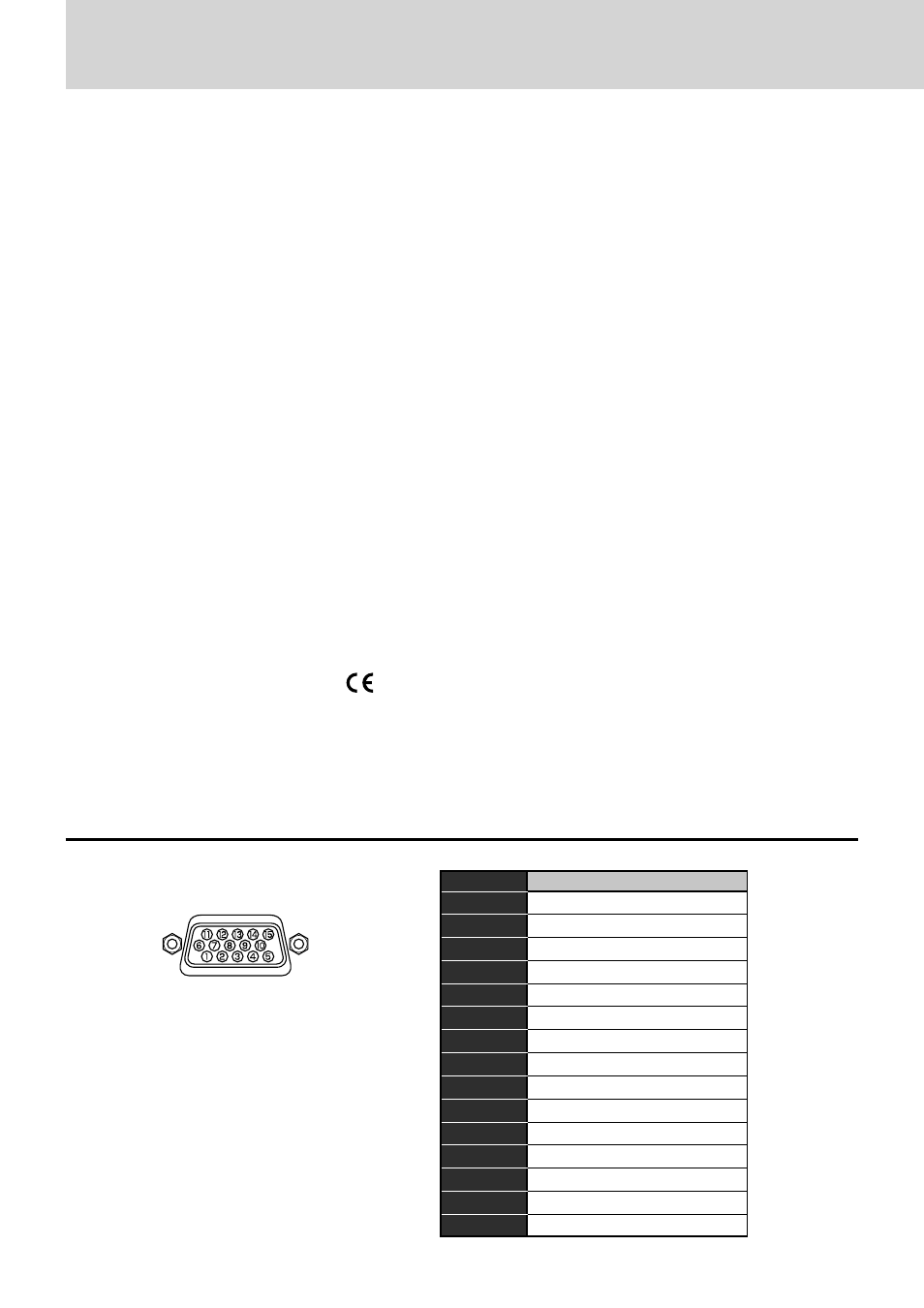

D-Sub Pin Assignments
PC 15-Pin mini D-Sub
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Signal to be connected
Red
Green
Blue
GND
GND
Red GND
Green GND
Blue GND
No Connection
Digital GND
GND
SDA
Horizontal Sync
Vertical Sync
SCL
