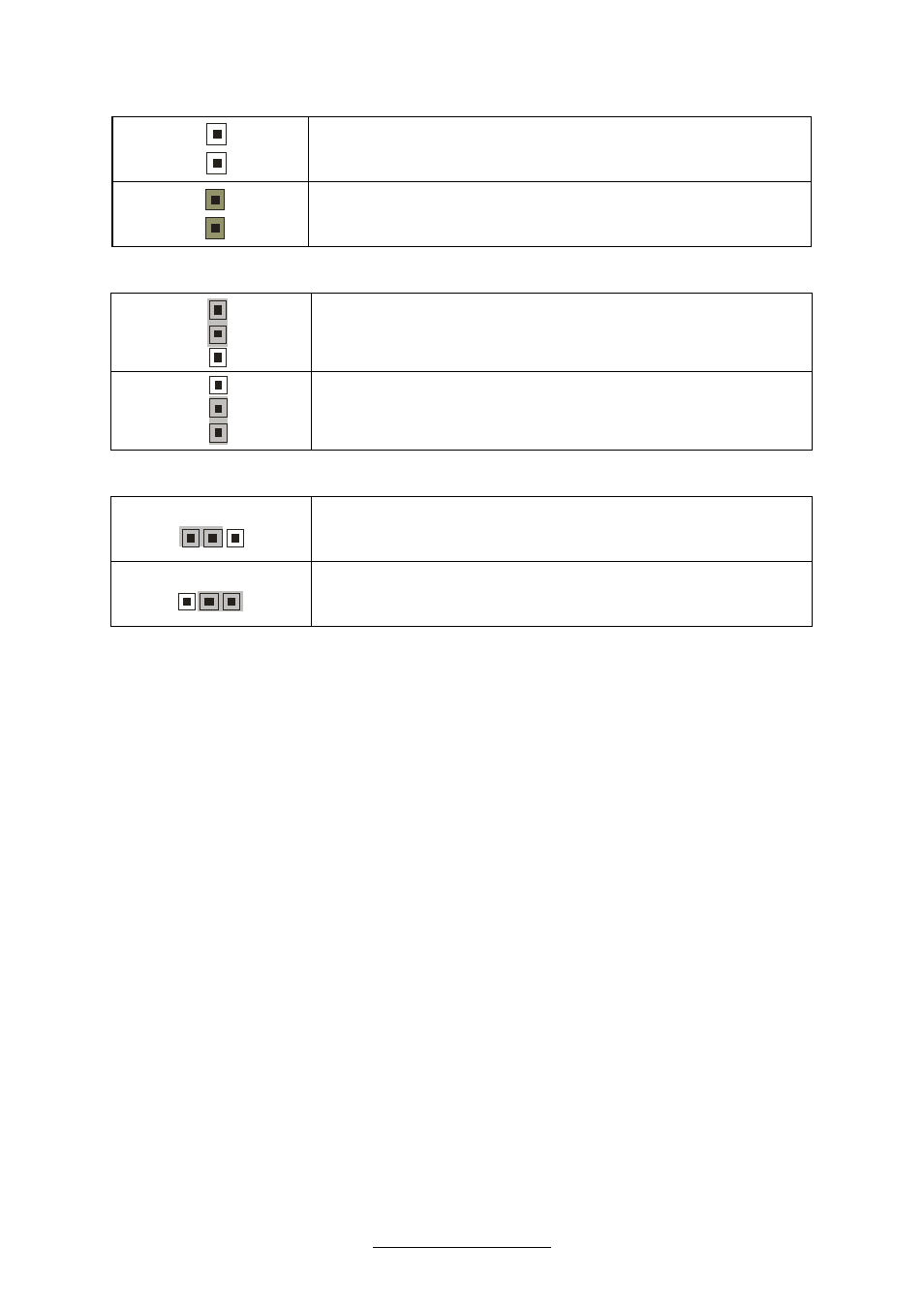

J7: BMC Reset Jumper
1
Pin 1-2 Open: Enable BMC(
Default
)
1
Pin 1-2 Closed: Disable BMC
J1: LSI 1068E Device ID Select Jumper
1
3
Pin 1-2 Closed: LSI 1068E Device ID (
Default
)
1
3
Pin 2-3 Closed: :LSI 1068E Device ID – Device ID bit
[0] =0b1
J3: LSI 1068E Enable/Disable Jumper
3
1
Pin 1-2 Closed: Enable LSI 1068E (
Default
)
1
3
Pin 2-3 Closed: Disable LSI 1068E
