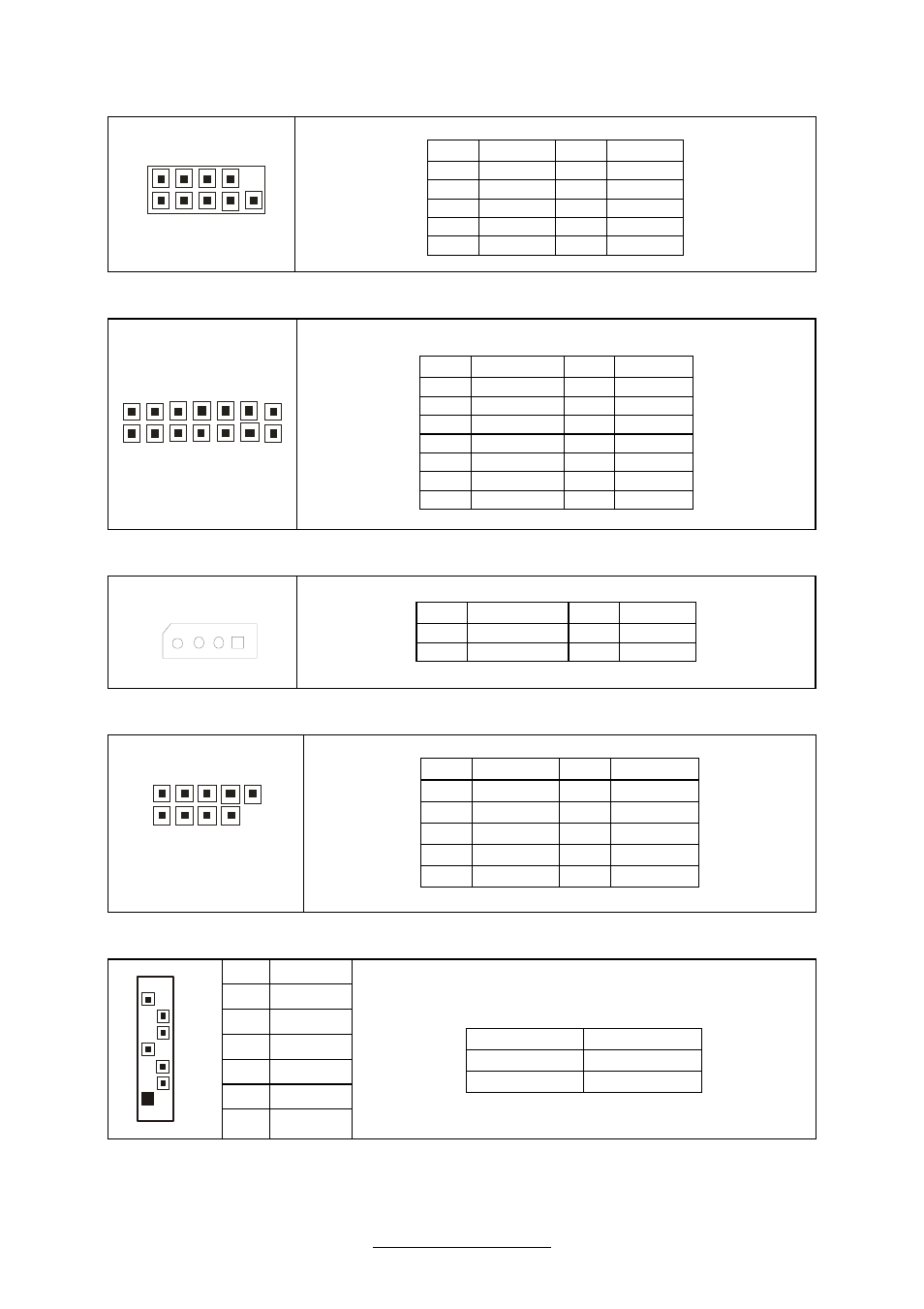

J18: COM2 Connector
1
2 10
9
Pin Signal Pin Signal
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10
KEY
J15: PORT 80 Header
1
2
13
14
Pin Signal Pin Signal
1 NC 2 V3P3
3 NC 4 FRAME
5 CLK_33M 6 GND
7 GND 8 LAD3
9 PLTRST
10 LAD2
11 NC 12 LAD1
13 NC 14 LAD0
J16: BMC I
2
C Header
1 Pin Signal Pin Signal
1 IPMB_DAT 2 GND
3 IPMB_CLK 4 NC
J34: USB Front Panel Header (Blue)
10
9
2
1
Pin Signal Pin Signal
1 +5V 2 +5V
3
USB D- 4 USB D-
5 USB D+ 6 USB D+
7 GND 8 GND
9 KEY 10
GND
SATA0/1/2/3/4/5: Serial ATA Connector
7 GND
6 RXP
5 RXN
4 GND
3 TXN
2 TXP
7
1
1 GND
Connects to the Serial ATA ready drives via the
Serial ATA cable.
SATA0: J30 SATA1: J29
SATA2: J26 SATA3: J23
SATA4: J22 SATA5: J21
