MTD CSV 070 - Manual (Page 13)

Self-propelled Chipper Shredder Vacuum
9

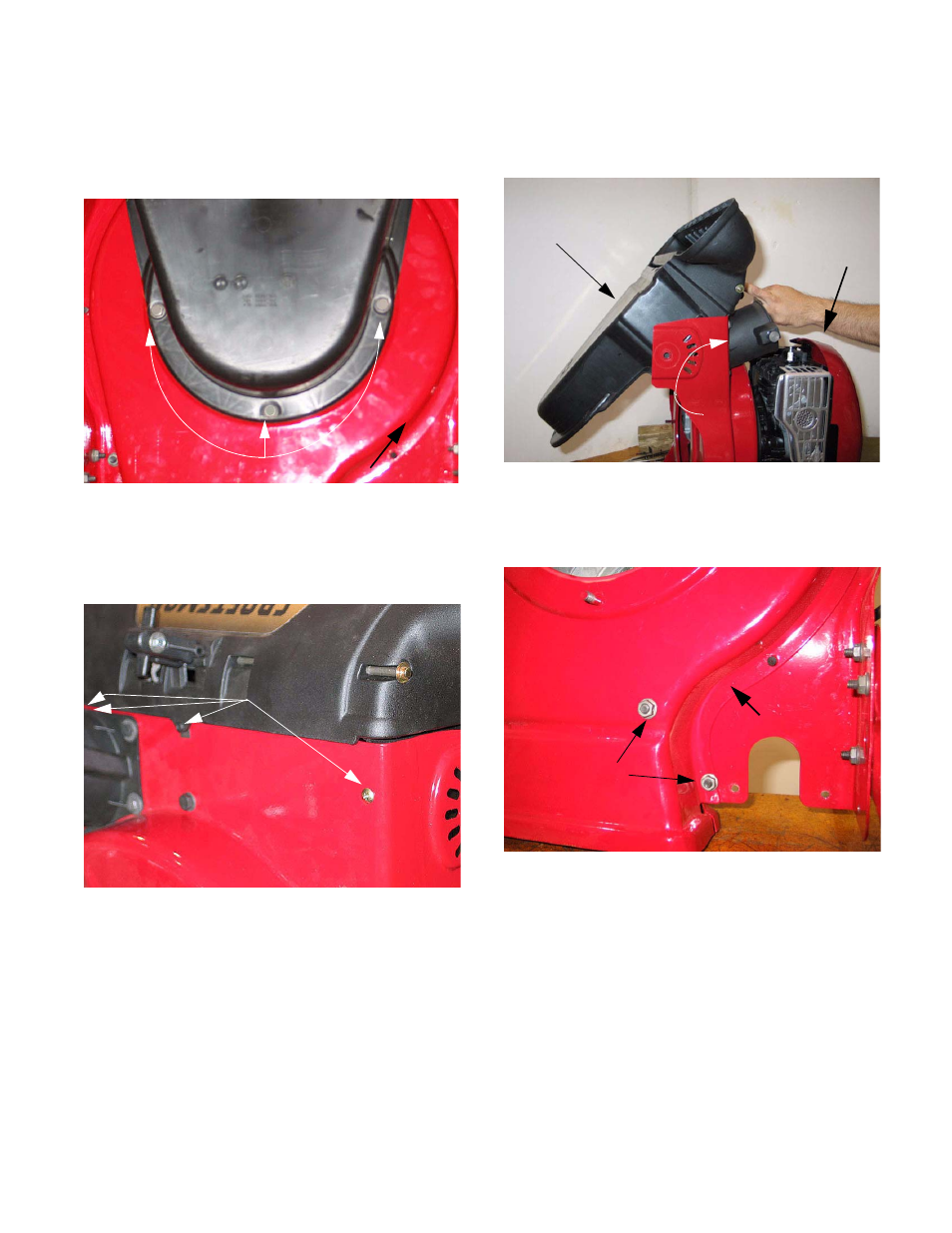

4.7. Use a 1/4” wrench to remove the three Screws
securing the black plastic nozzle to the lower
housing. They are accessible from underneath.
See Figure 4.7.
4.8. Four phillips head screws secure the front of the
nozzle to the frame. Remove them.
See Figure 4.8.
Figure 4.7
Black plastic nozzle
1/4” Screws
Figure 4.8
Nozzle Mounting
Screws
4.9. Tilt top of black plastic nozzle toward the engine
to remove. This will allow the safety gate to pass
by the hose opening freely. See Figure 4.9.
4.10. Remove all of the fasteners holding the lower
housing to the upper housing. See Figure 4.10.
NOTE: There is a variety of nuts, bolts, and self-
tapping screws holding the two housings
together.
Figure 4.9
Engine
Nozzle
Safety gate within
vacuum tube
Figure 4.10
Lower housing
Nut & bolt
