Installation

Installation

The MA7000 can be placed upright on a table or shelf,

standing on its four feet. It also can be custom installed in

a piece of furniture or cabinet of your choice. The four feet

may be removed from the bottom of the MA7000 when it

is custom installed as outlined below. The four feet togeth-

er with the mounting screws should be retained for pos-

sible future use if the MA7000 is removed from the custom

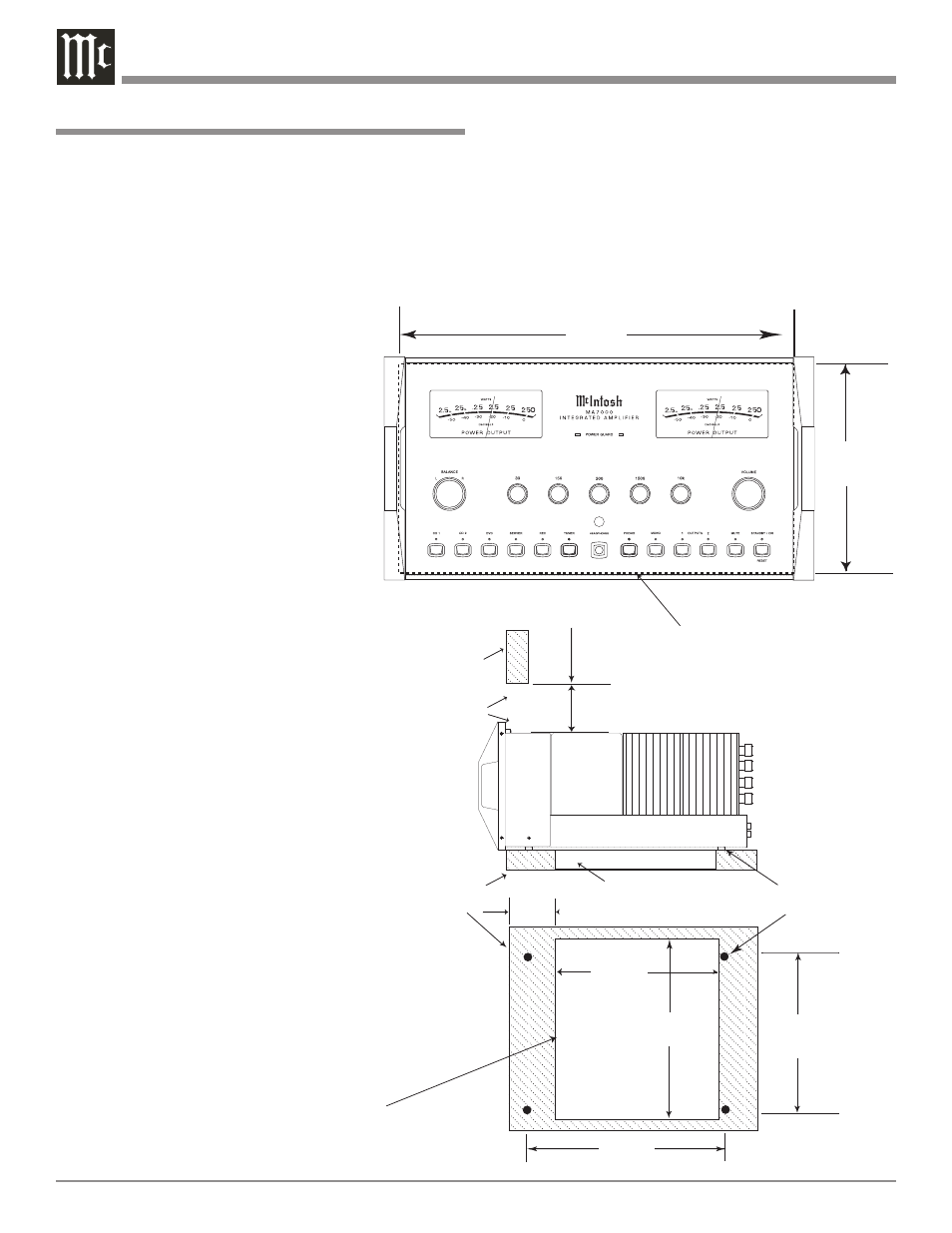

installation and used free standing. The required panel

cutout, ventila-

tion cutout and

unit dimensions

are shown.

Always pro-

vide adequate

ventilation for

your MA7000.

Cool opera-

tion ensures the

longest possible

operating life for

any electronic

instrument. Do

not install the

MA7000 directly

above a heat

generating com-

ponent such as

a high powered

amplifier. If all

the components

are installed in

a single cabinet,

a quiet run-

ning ventilation

fan can be a

definite asset

in maintaining

all the system

components at

the coolest pos-

sible operating

temperature.

A custom cabi-

net installation

should provide

the following

minimum spac-

ing dimensions

for cool opera-

tion.

���

���

8-

5/16

"

21.11cm

17-

1/16

"

43.34cm

MA7000 Front Panel

Custom Cabinet Cutout

Cutout

Opening

for

Ventilation

Cutout Opening for Ventilation

Support

Shelf

Cabinet

Front

Panel

Chassis

Spacers

MA7000 Side View

in Custom Cabinet

MA7000 Bottom View

in Custom Cabinet

9

-1/2

"

24.13cm

16"

40.64cm

11

-1/2

"

29.21cm

10"

25.4cm

4-

5/8

"

11.75cm

Cutout Opening

for

Custom Mounting

6"

15.24cm

Opening

for Ventilation

Note: Center the cutout Horizontally on the unit.

For purposes of clarity, the above

illustration is not drawn to scale.

Allow at least 6 inches (15.24cm) above the top, 2 inches

(5.08cm) below the bottom and 1 inch (2.54cm) on each

side of the Integrated Amplifier, so that airflow is not ob-

structed. Allow 20 inches (50.8cm) depth behind the front

panel. Allow 2-1/4 inch (5.72cm) in front of the mounting

panel for handle clearance. Be sure to cut out a ventilation

hole in the mounting shelf according to the dimensions in

the drawing.
