Part identification chart – Gold's Gym XR15 User Manual
Page 12
38mm x 76mm Inner Cap (52)
M10 x 95mm Bolt (40)
M4 x 16mm Screw (36)
M10 Nylon Locknut (37)
M8 x 50mm Bolt (48)
M8 Washer (34)
M8 Nylon Locknut (35)
50mm Square Inner Cap (27)
M10 x 68mm Bolt (41)
45mm Square Inner Cap (26)
25mm Round Inner Cap (47)
M8 x 58mm Bolt (33)
25mm Square Inner Cap (28)
M6 x 38mm Bolt (46)
M6 Washer (45)
M10 x 156mm Bolt (39)
M6 x 16mm Screw (44)
M6 x 63mm Screw (50)
19mm Round Inner Cap (24)
M4 x 16mm Flat
Head Screw (51)
M10 x 45mm Bolt (43)
M10 Washer (49)

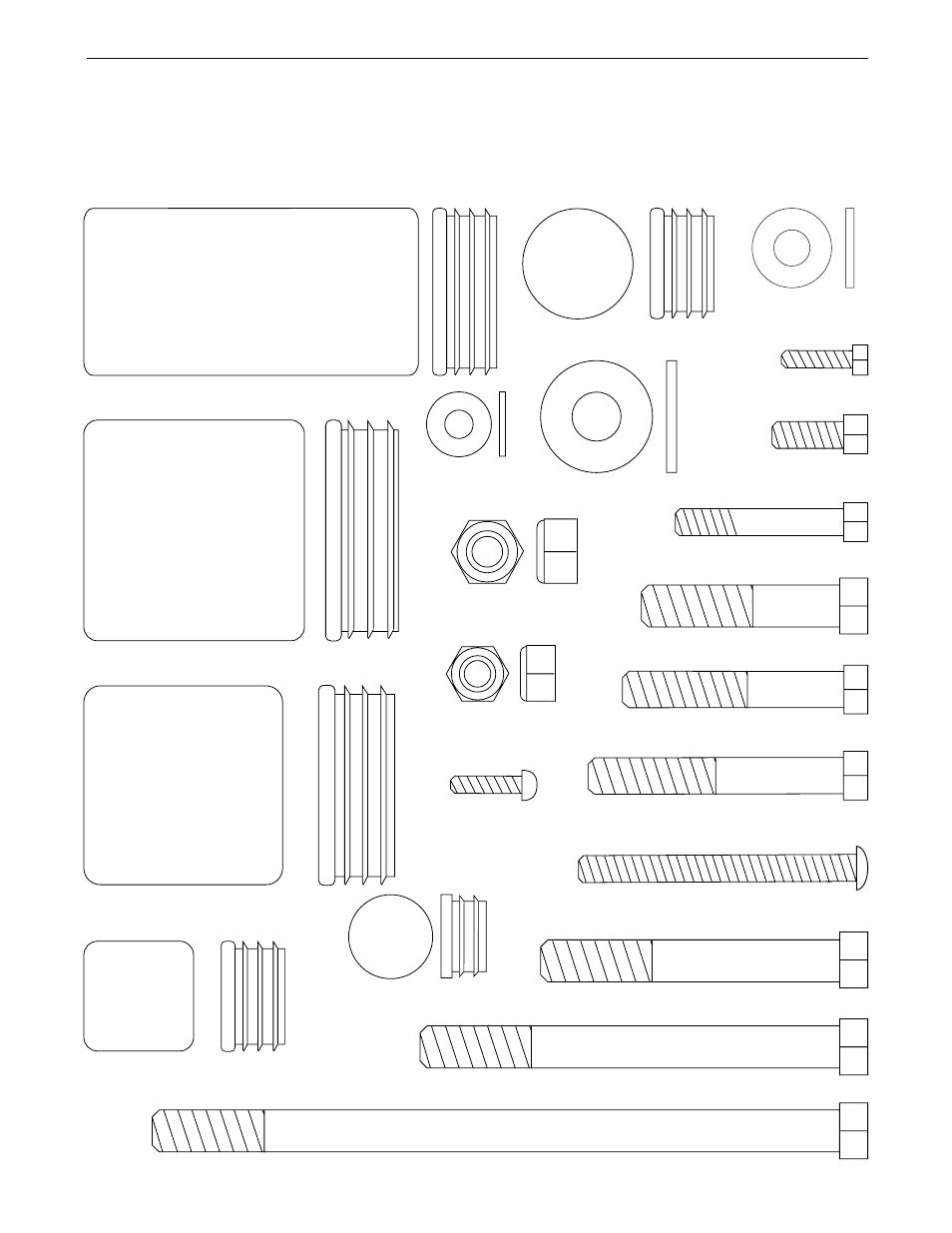

PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST in the center of this manual. Note: Some small parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
