H2912/H2913 2-IN-1 NAILER/STAPLER -6 -
OPERATION
Loading The Nailer/Stapler
Depth Adjustment
Operating The Nailer/Stapler
To load your nailer/stapler:
1. Disconnect the air supply from the
nailer/stapler!
2. Push the magazine latch in the direc-
tion shown in Figure 1 .

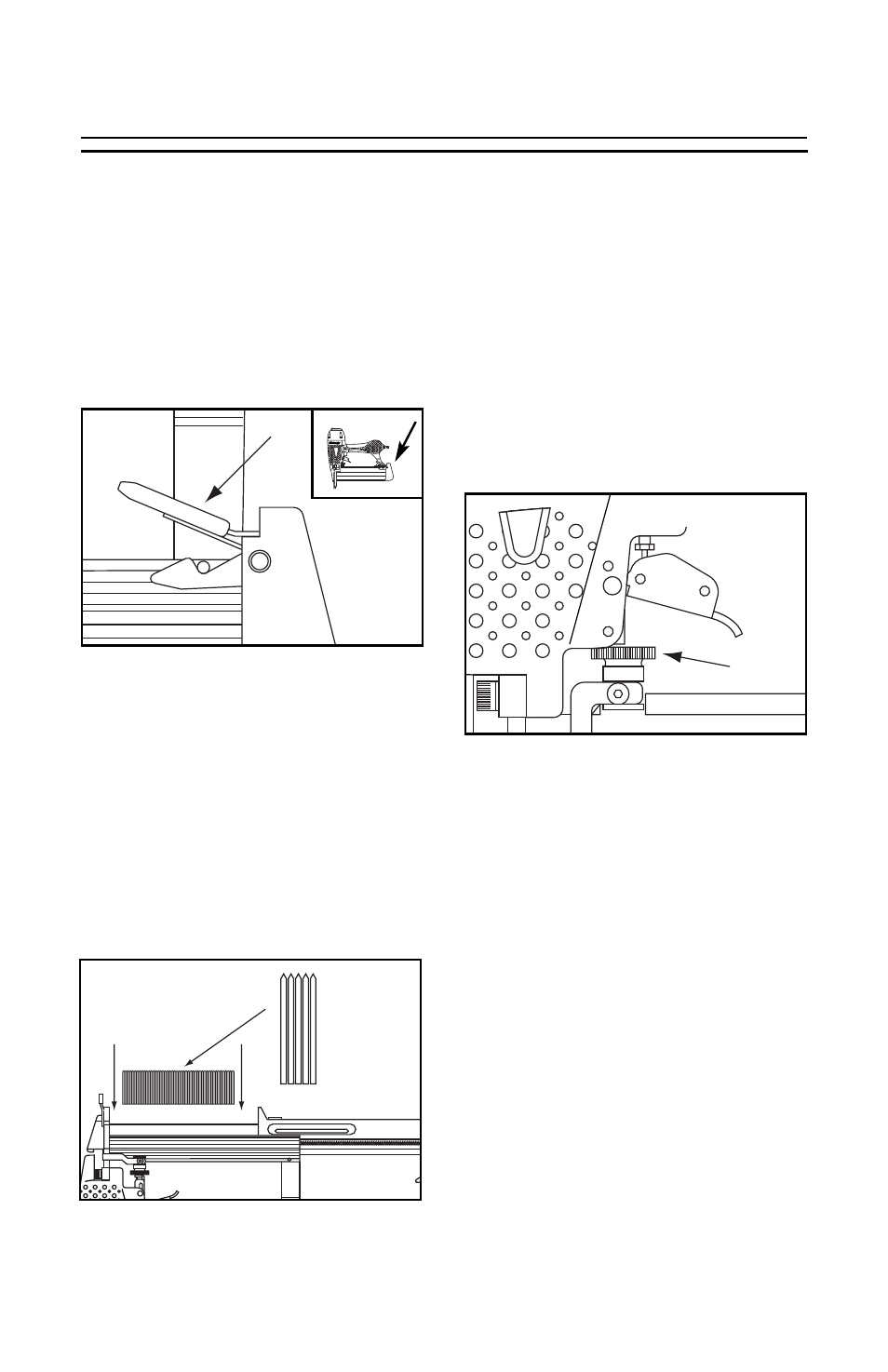

Figure 1. Releasing magazine latch.
Figure 3. Depth adjustment wheel.
Figure 2. Loading the nailer/stapler.
5. Push the magazine cover forward
until the magazine latch locks in
place.
1. Rotate the depth adjustment wheel
(shown in
Figure 3 ) clockwise to
increase the nail/staple driving depth.
2. Rotate the finger wheel counter-clock-
wise to decrease the nail/staple dri-
ving depth.
If you have not read the safety instruc-
tions in this manual, do not operate the
nailer/stapler.
Before you operate your nailer/stapler,
place one drop of the included oil into the
quick connect fitting where the nailer/sta-
pler connects to the air supply. Fire the
EMPTY nailer/stapler 3-4 times before
beginning, so oil does not come out onto
the project during regular operation.
3. Pull back the magazine cover until it
stops.
4. Point the nailer/stapler up and insert a
stick of nails/staples into the maga-
zine as shown in Figure 2 . Make sure
that the pointed ends of the nails/sta-
plers point in the same direction as
the Model H2912/H2913 nose and the
nails/staples rest in the
shallow slot at
the bottom of the magazine.
