Grizzly Nursery Platform Truck G8154 - Manual (Page 3)

110
134
110109
125
127
126
130
108
131 107
108 120
112
132
133
113
110
109
136
110
109
129
128
121
120
124
119
114 117
108
110
109
118
110
115
109
123
109
122

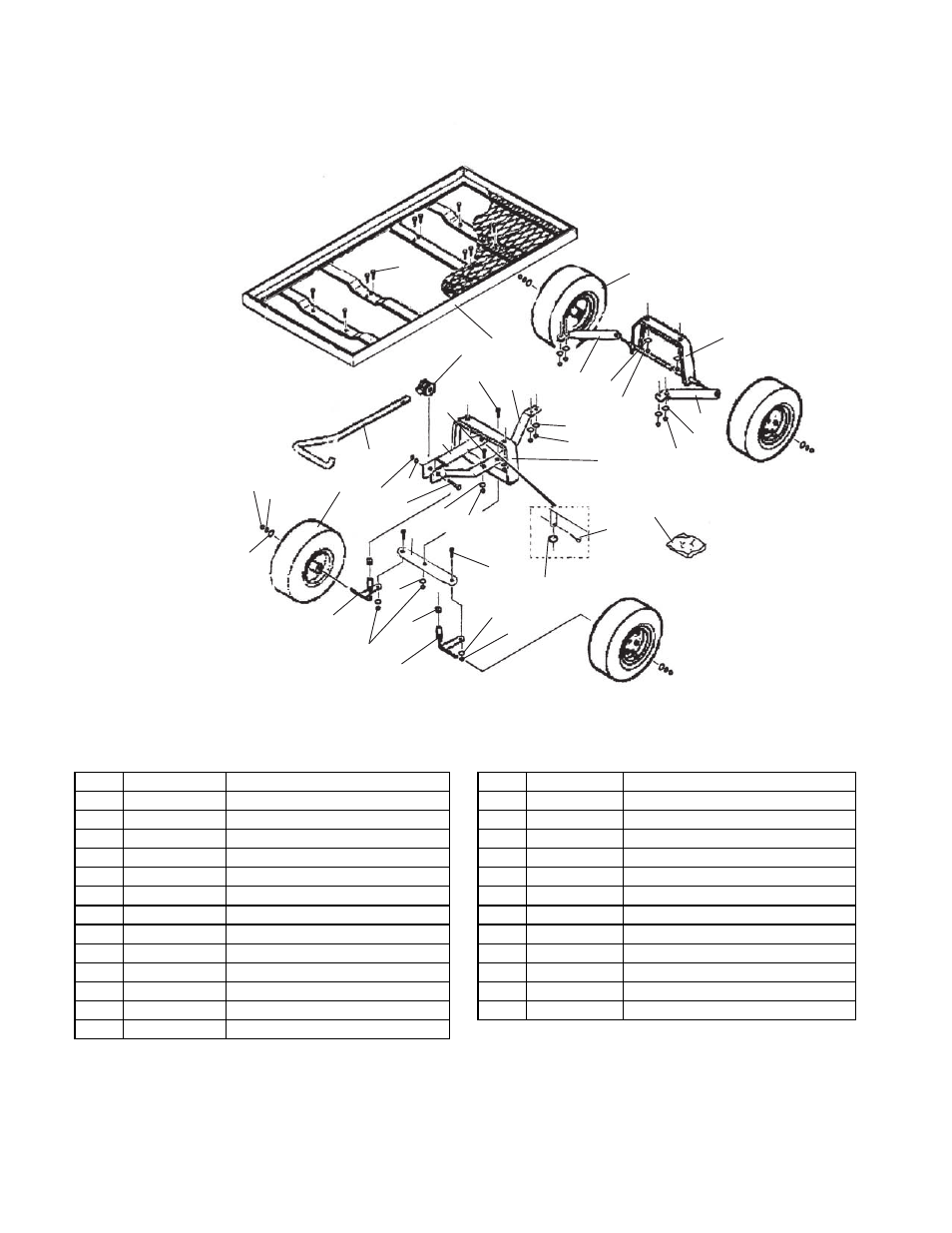

REF PART # DESCRIPTION REF PART # DESCRIPTION
107 P8154107 BED 123 P8154123 LEFT STEERING SPINDLE
108 PB85M HEX BOLT M8-1.25 X 18 124 P8154124 RIGHT STEERING SPINDLE
109 PLN04M LOCK NUT M8-1.25 125 PB28M HEX BOLT M8-1.25 X 60
110 PW01M FLAT WASHER 8MM 126 PLN04M LOCK NUT M8-1.25
112 P8154112 REAR AXLE W/SUPPORT 127 PW01M FLAT WASHER 8MM
113 P8154113 REAR AXLE LEFT STRUT 128 P8154128 CENTER STRUT
114 PN26M ACORN NUT M12-1.75 129 P8154129 STEERING AXLE SUPPORT
115 PN09M HEX NUT M12-1.75 130 P8154130 HANDLE
117 PLW05M LOCK WASHER 12MM 131 P8154131 HANDLE JOINT
118 P8154118 TIE BAR 132 PW04M FLAT WASHER 10MM
119 PW06M FLAT WASHER 12MM 133 P8154133 COTTER PIN 3 X 25MM
120 P8154120 WHEEL 4.1 X 3.5-4 134 P8154134 REAR AXLE RIGHT STRUT
121 P8154121 RECIEVER 136 P8154136 BOLT BAG
122 PB07M HEX BOLT M8-1.25 X 25
