-8-

Model t10222 (Mfg. since 12/09)

Inventory

NOTICE

If you cannot find an item on this list, check

the mounting location on the machine or the

packaging materials. Sometimes parts are

pre-installed for shipping, or they become

hidden by packaging materials.

refer to

figures 3–5 and the listing below to

inventory the contents of the shipping box.

Description

Qty

A. router table ............................................... 1

B. support leg ................................................ 1

C. Fence & dust hood .................................... 1

D. Knurled Fence handles .............................. 2

E. t-slot Bars .................................................. 2

f. router guard Bracket ................................ 1

g. Fence Board shim 1.5mm .......................... 1

H. Fence Board shim 0.7mm .......................... 1

i. plastic router guard .................................. 1

J. router guard Knobs .................................. 2

K. support leg Foot pad Assembly ............... 1

L. table insert 1" id ........................................ 1

M. table insert 2

3

8

" id .................................... 1

N. starting pin ................................................. 1

O. dust port 2

1

2

"............................................. 1

p. Button head Cap screws M6-1 x 10 .......... 4

Q. Flat Washers 6mm ..................................... 4

R. Mounting screw Assemblies ...................... 3

— Cap screws M8-1.25 x 30 ...................... 3
— lock Washers 8mm ................................ 3
— Flat Washers 8mm .................................. 3

S. router hold-down Assemblies .................. 4

if any nonproprietary parts are missing (e.g. a

nut or a washer), we will gladly replace them; or

for the sake of expediency, replacements can be

obtained at your local hardware store.

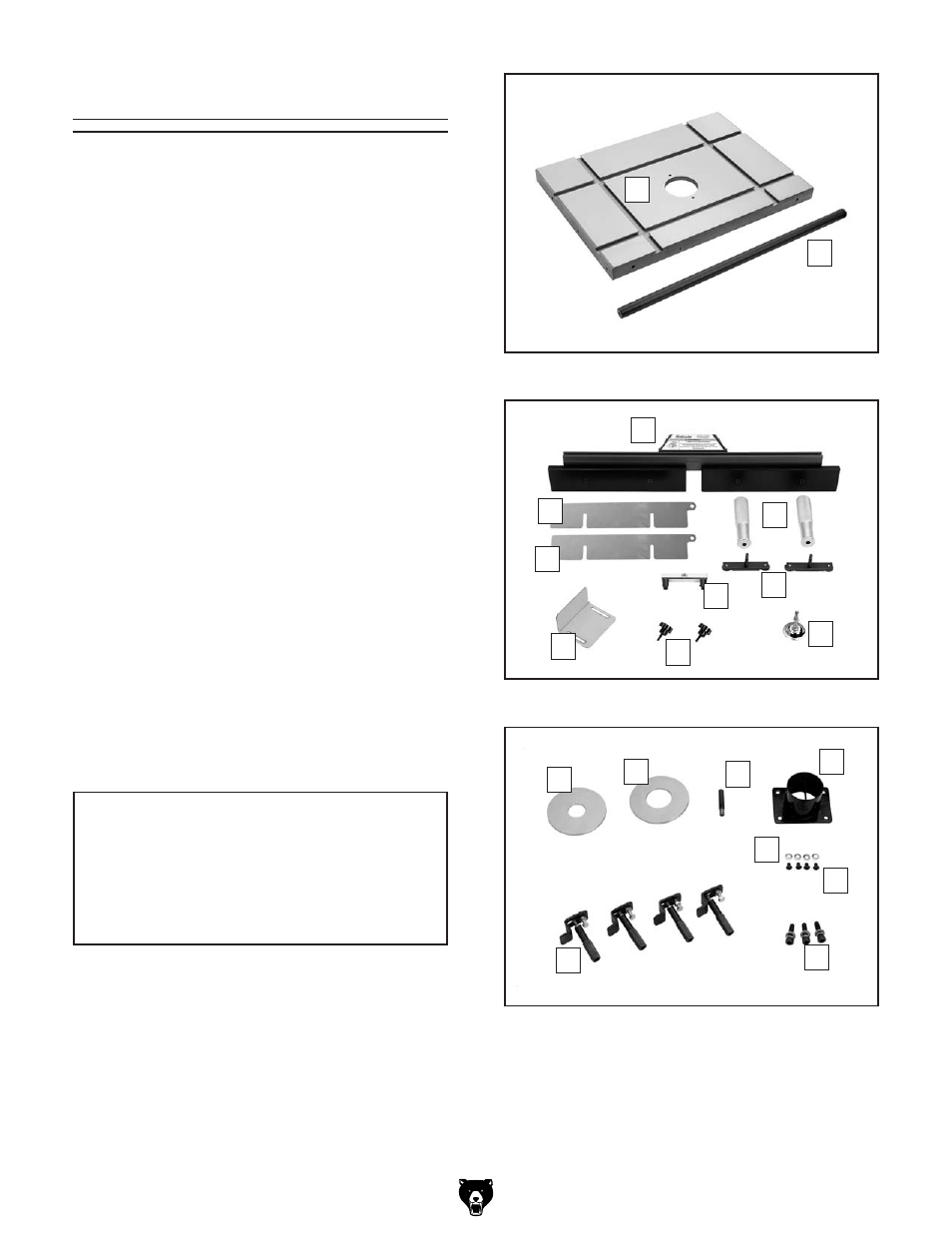

figure 3. shipping inventory items A–B.

A

B

figure 5. shipping inventory items l–t.

l

M

n

o

p

Q

r

s

figure 4. shipping inventory items C–K.

C

d

E

F

g

h

i

J

K
