MODEL T10157
OAK WORKBENCH
INSTRUCTIONS
Copyright © oCtoBEr, 2008 By grizzly industrial, inC.
WARNINg: NO pORTION Of THIS MANUAL MAy BE REpRODUCED IN ANy SHApE
OR fORM WITHOUT THE WRITTEN AppROvAL Of gRIzzLy INDUSTRIAL, INC.
#ts11313 printEd in China

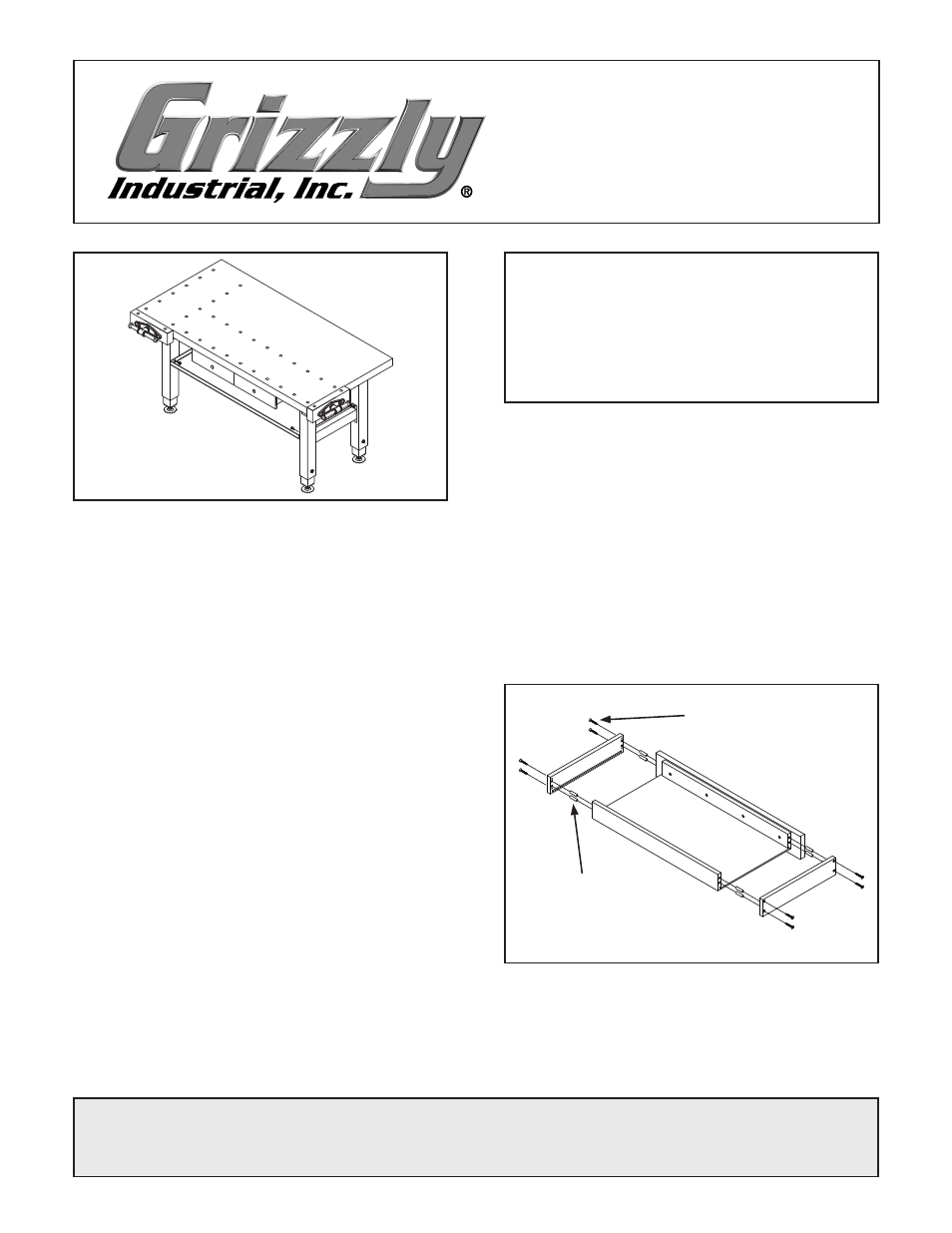

figure 1. Model t10157 oak Workbench.
features
•
solid oak top (1
1
⁄
2
" thick) with double rows of
bench dog holes for each vise.
•
two storage drawers (with ball bearing slides)
that are 14" wide x 13
3
⁄
4
" long x 2
1
⁄
4
" deep.
•
sturdy adjustable steel legs with leveling foot
pads.
•
two oak-faced vises with removable top plate
and 4" leadscrew travel, 13" wide x 2" thick.
•
Four bench dogs.
•
all wood surfaces finished with durable lac-
quer.
•
overall dimensions: 62" wide x 30" in depth x
32"–39" tall.
•
Weight: 155 lbs.
Inventory
use the parts breakdown and listing on
page 4 to
perform an inventory of the shipment.
if any nonproprietary parts are missing (e.g. a
bolt or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Assembly
Tools Needed
Qty
phillips screwdriver #2 ...................................... 1
Wrench or socket
1
⁄
2
" ........................................ 1
To assemble your workbench:
1. insert the four M8 x 30 screw anchors into
the holes at the ends of the front and back
drawer panels for both drawers, as shown in
figure 2.
NOTICE
If you cannot find an item on the inventory
parts list, check the mounting location on
the workbench or examine the packaging
materials carefully. Some items are pre-
installed for shipping purposes.
figure 2. attaching drawer side panels.
M8 x 30
screw anchors
M4 x 30
Wood screws
