-2-
t23093 industrial 3 ⁄
8
" Air drill

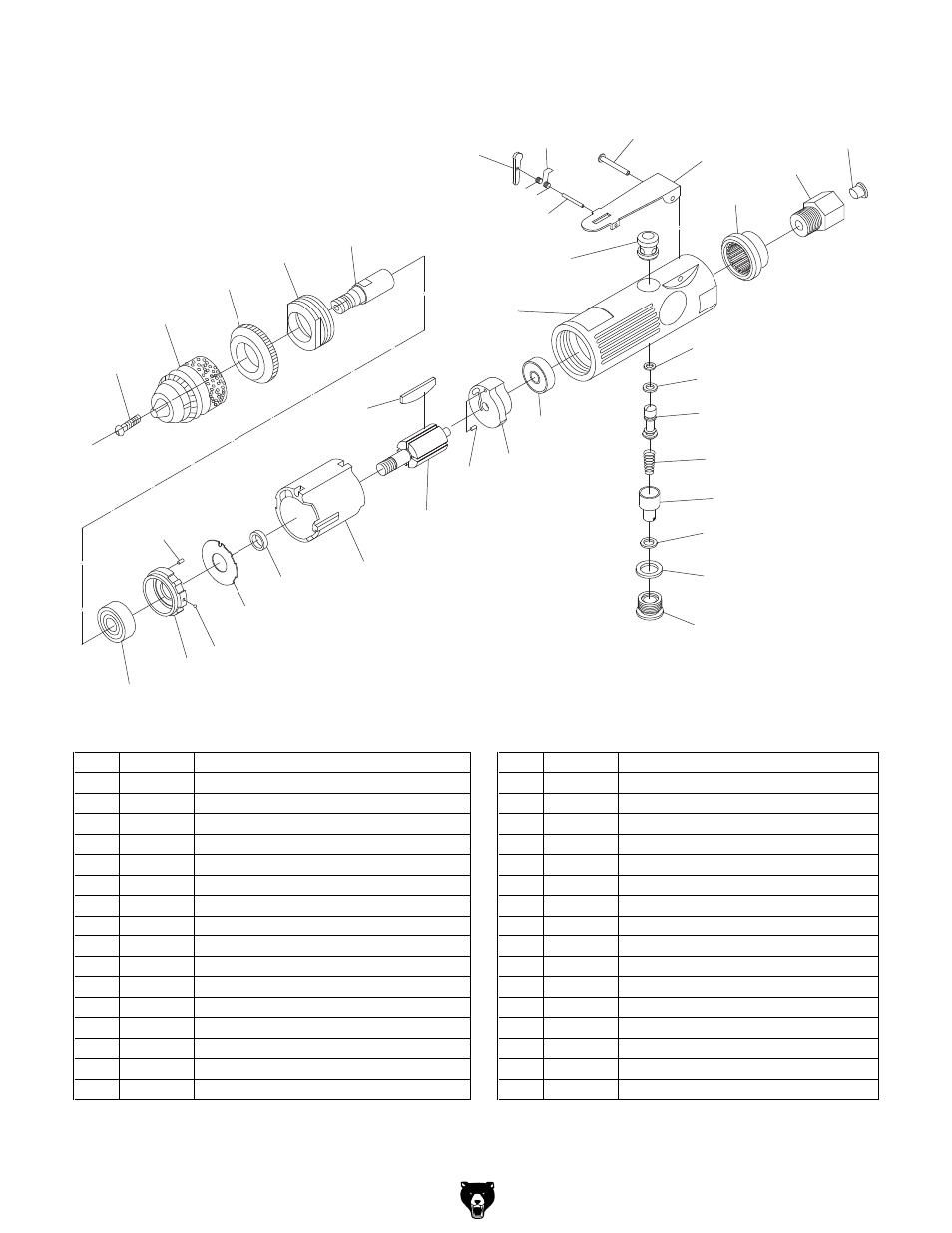

T23093 parts breakdown and List
Parts breakdown provided for reference only. Not all parts shown are available for purchase.
1
2
3 4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 N/A DRILL BODY 18 N/A AIR INLET PLUG
2 N/A VALVE BUSHING 19 P626ZZ BALL BEARING 626ZZ
3 N/A TRIGGER 20 N/A ROTOR BRACKET
4 N/A TRIGGER LOCK 21 N/A ROLL PIN 2 X 6
5 N/A TRIGGER SPRING 22 N/A ROTOR
6 N/A ROLL PIN 1.5 X 20 23 N/A ROTOR BLADE
7 N/A PIN 3 X 20 24 N/A ROTOR CYLINDER
8 N/A O-RING 4.8 X 1.6MM 25 N/A ROTOR BUSHING
9 N/A O-RING 5.6 X 2MM 26 N/A CYLINDER END PLATE
10 N/A VALVE STEM 27 N/A CYLINDER END CAP
11 N/A VALVE STEM COMPRESSION SPRING 28 N/A STEEL BALL 2MM
12 N/A AIR REGULATOR 29 N/A BALL BEARING 6000Z
13 N/A O-RING 7 X 2MM 30 N/A CHUCK SEAT
14 N/A O-RING 12 X 3MM 31 N/A CHUCK RETAINER
15 N/A VALVE PLUG 32 N/A RUBBER CUSHION
16 N/A MUFFLER COVER 33 N/A CHUCK
17 N/A AIR INLET 34 N/A CHUCK SCREW
