DISPENSER MODELS:
RAISED OVERLAY PANEL DESIGN
ZISW360DM - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
When a raised panel design is to be used, a
custom wide middle rail is required to accept the
dispenser trim.
• The middle rail must be wide enough to allow for
the dispenser trim to overlap the opening.
• The middle rail must be 1.100" total thickness to
accept the dispenser trim.
1/4" Backer Panel
.10" Spacer
3/4" Overlay Panel
Wide
Middle
Rail is
Required
1/4" FRAMED PANEL
• The dispenser trim fits over the custom panel and
snaps into the freezer door.
• The clips will not engage the door if the panel is
more than 0.250" thick.
• If the panel is less than 0.250" thick, a noticeable
gap may be created around the dispenser trim.
3/4" OVERLAY PANEL
• The dispenser trim fits over the custom panel and
snaps into the freezer door.
• The clips will not engage the door if the panel is
more than 1.100" thick.
• If the panel is less than 1.100" thick, a noticeable
gap may be created around the dispenser trim.
Dispenser
Trim
16-3/4"
10-5/8"

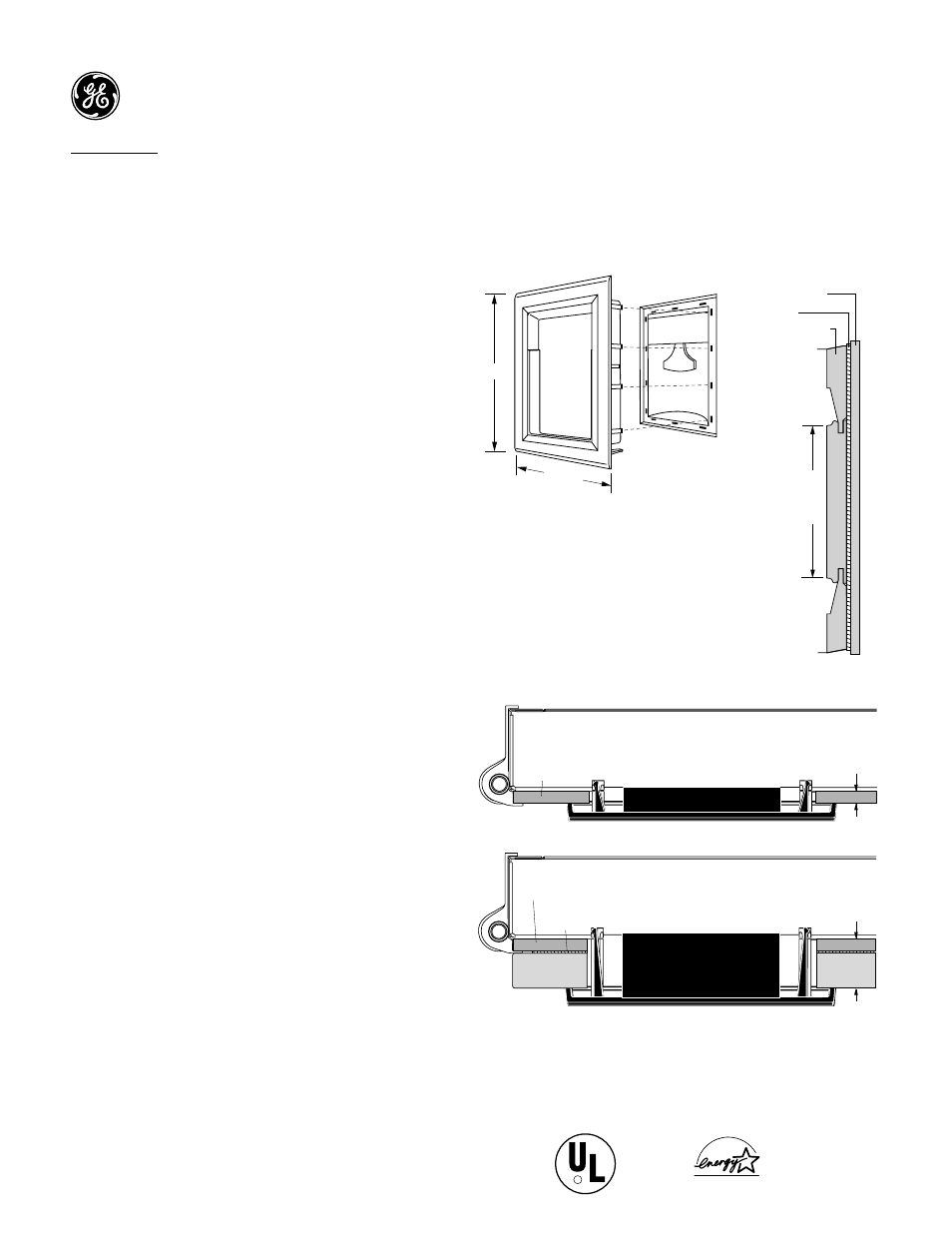

DISPENSER TRIM FIT EXAMPLES:
(NOT TO SCALE)
1/4"
Framed
Panel
1/4" Backer Panel
.10" Spacer
Panel
1/4" Dispenser Trim
3/4" Overlay Dispenser Trim
3/4" Overlay
Panel
FREEZER DOOR
FREEZER DOOR
0.250"
Thick
1.100"
Total Thickness
Ice / Water Dispenser
Ice / Water Dispenser
