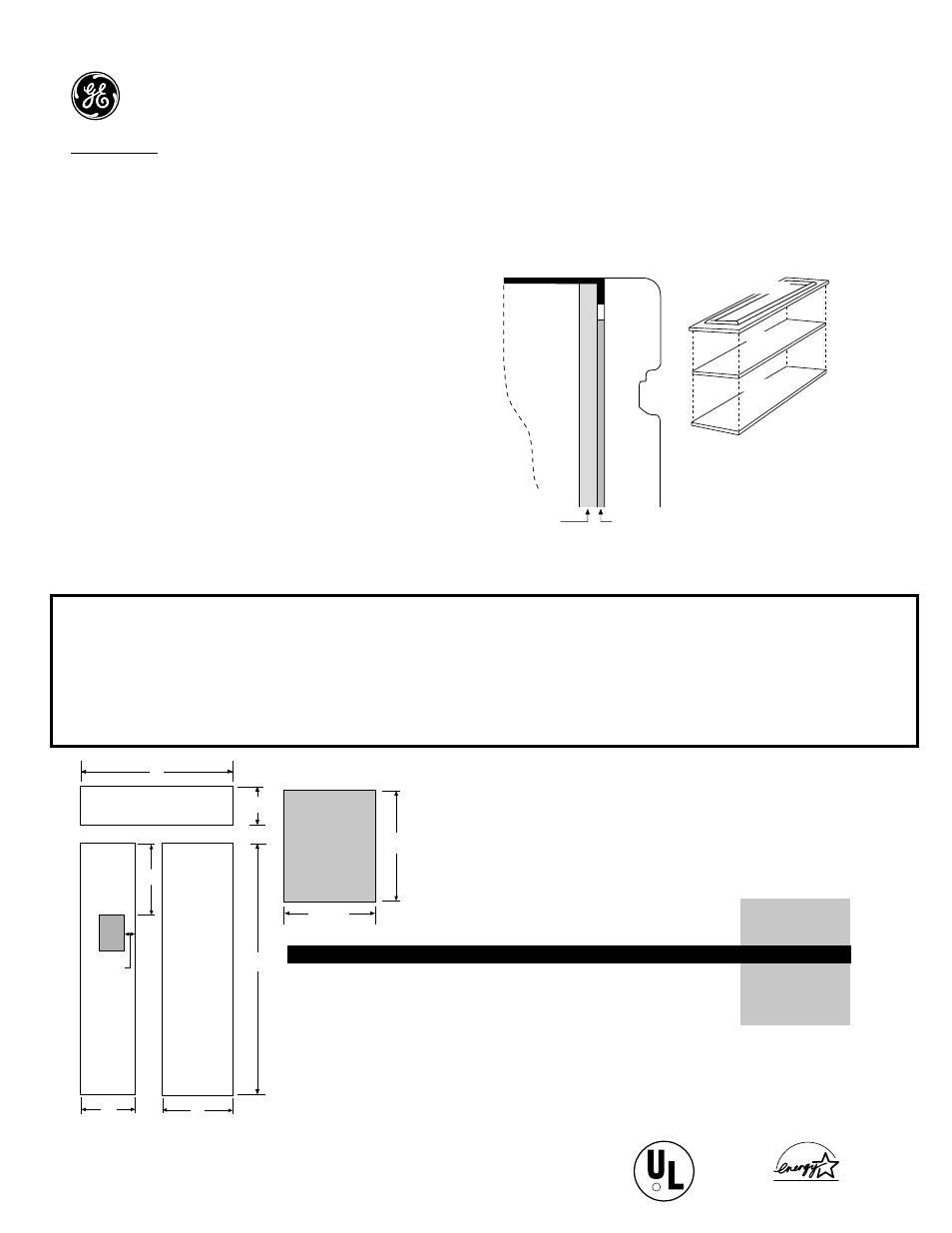

3/4" OVERLAY PANEL DIMENSIONS
For a more custom appearance, overlay panels may be installed on
trimmed models. The overlay panel must be secured to a 1/4" thick
backer panel which slides into the trim. A spacer panel 0.10" thick
must be placed between the overlay and backer panel.
Assemble the panels with glue and screws.
• Center the spacer panel on the backer panel, left to right and top to
bottom. Secure the panels with glue.
• Center the spacer and backer panel on the overlay panel and
secure with glue and screws. Screws must be countersunk into the
backer panel.
3/4"
Overlay
Panel
1/4"
Backer
Panel
Door
.10"
Spacer
ZISW360DM - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Spacer Panel
Overlay Panel
Backer Panel
.250" + .10" + .750" = 1.100" Total Panel Thickness
NOTE: Left-to-right
offset is not always
equal to top-to-bottom
offset.
IMPORTANT NOTE – Dispenser Models
The refrigerator is supplied with two dispenser trims, one for
framed panels and one for overlay panels. The overlay dispenser
trim is designed to fit a total panel thickness of 1.100".
• If the panel is less than 1.100" a noticeable gap may be created
around the dispenser trim.
• If the panel is more than 1.100" the dispenser trim cannot be
secured to the door.
• The overlay panel must be constructed according to the
specifications shown to achieve the correct total thickness.
• Alternative panel construction methods such as securing a 3/4"
panel to a 1/4" backer panel cannot be used. Another method,
routing a 3/4" thick panel on all sides cannot be used. These
methods will not result in the required 1.100" panel thickness.
Fresh Food
Panel
Freezer
Panel
E D
F
G
A
B Grille Panel
C
Dispenser
Cutout
9-5/8"
Dispenser Cutout
15-3/8"
A B C D E F G
1/4” Backer Panel 33-7/8 9 68-3/8 14-9/16 18-9/16
.10” Spacer Panel 33 8-3/8 67 13-1/4 17-1/4
3/4" Overlay Panel 34-1/8 9-1/4 68-5/8 14-13/16 18-13/16 17-15/16 3-1/4
*Dispenser
Cutout Position
*Cut the dispenser opening after the backer, spacer and overlay panels
have been assembled.
IMPORTANT NOTE: Maximum
total weight for assembled fresh
food panel is 50 pounds and 30
pounds for freezer panel.
