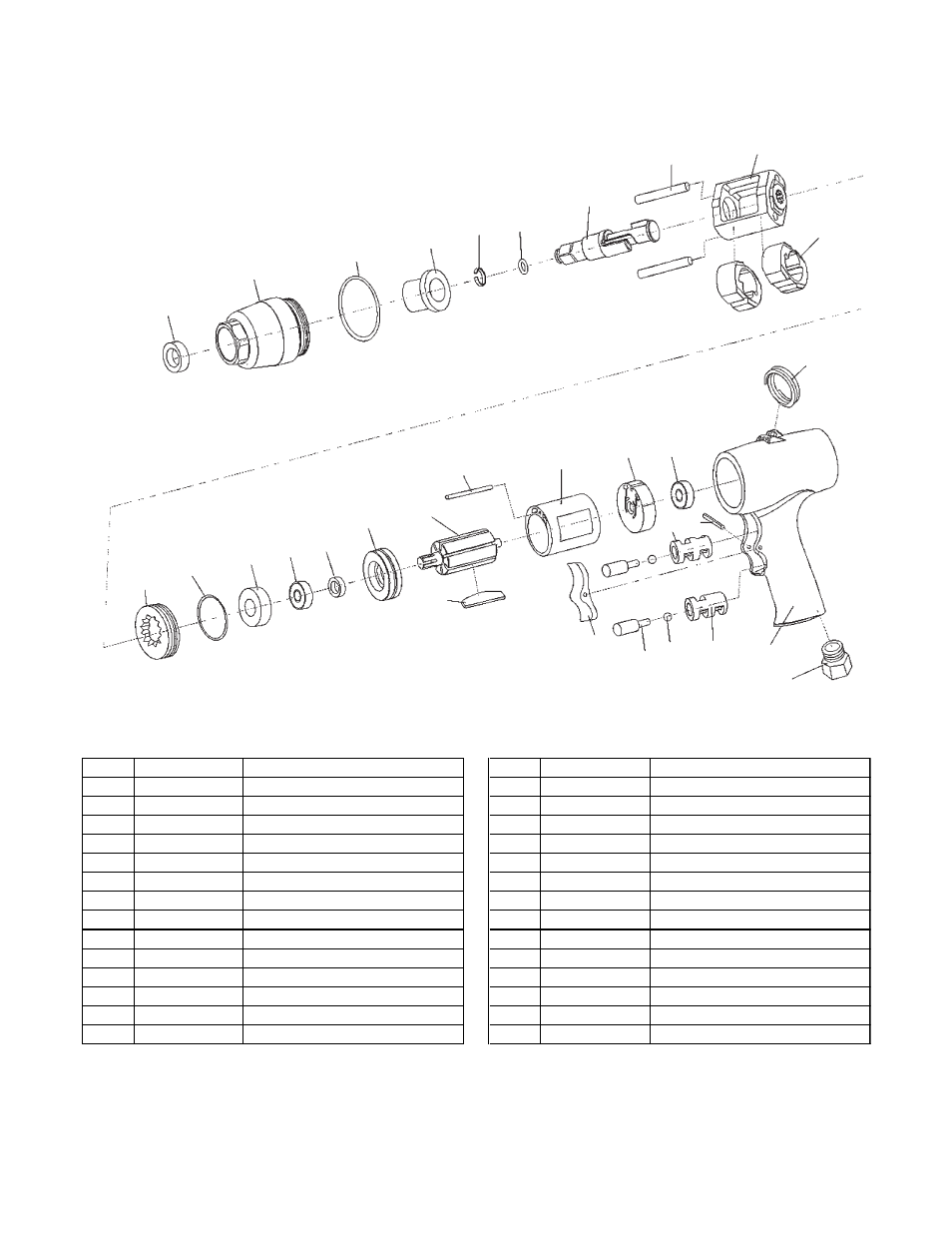

H8119 Parts Breakdown and List
�
� � �
�
�
� �
�
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH8119001 AIR INLET 1/4" NPT 16 PH8119016 FRONT END PLATE
2 PH8119002 HOUSING 17 PH8119017 ROTOR OIL SEAL
3 PH8119003 END SLEEVE 18 PH8119018 ROTOR SLEEVE
4 PH8119004 VALVE STEM 19 PH8119019 O-RING 37 X 2.65MM
5 PH8119005 TRIGGER PIN 20 PH8119020 LOCKING RING
6 PH8119006 TRIGGER 21 PH8119021 HAMMER
7 PH8119007 FRONT SLEEVE 22 PH8119022 HAMMER FRAME
8 PH8119008 GROOVE PIN 23 PH8119023 HAMMER PIN
9 PH8119009 LANYARD RING 24 PH8119024 ANVIL
10 PH8119010 BEARING 25 PH8119025 O-RING 4.5 X 1.3MM
11 PH8119011 REAR END PLATE 26 PH8119026 SOCKET RETAINER
12 PH8119012 CYLINDER 27 PH8119027 HAMMER CASE BUSHING
13 PH8119013 CYLINDER DOWEL 28 PH8119028 O-RING 41.2 X 2.65MM
14 PH8119014 VANE SET 29 PH8119029 HAMMER CASE BUSHING
15 PH8119015 ROTOR 30 PH8119030 OIL SEAL
