H0579 parts breakdown and list – Grizzly 190mm Air Hammer Kit H0579 User Manual
Page 2

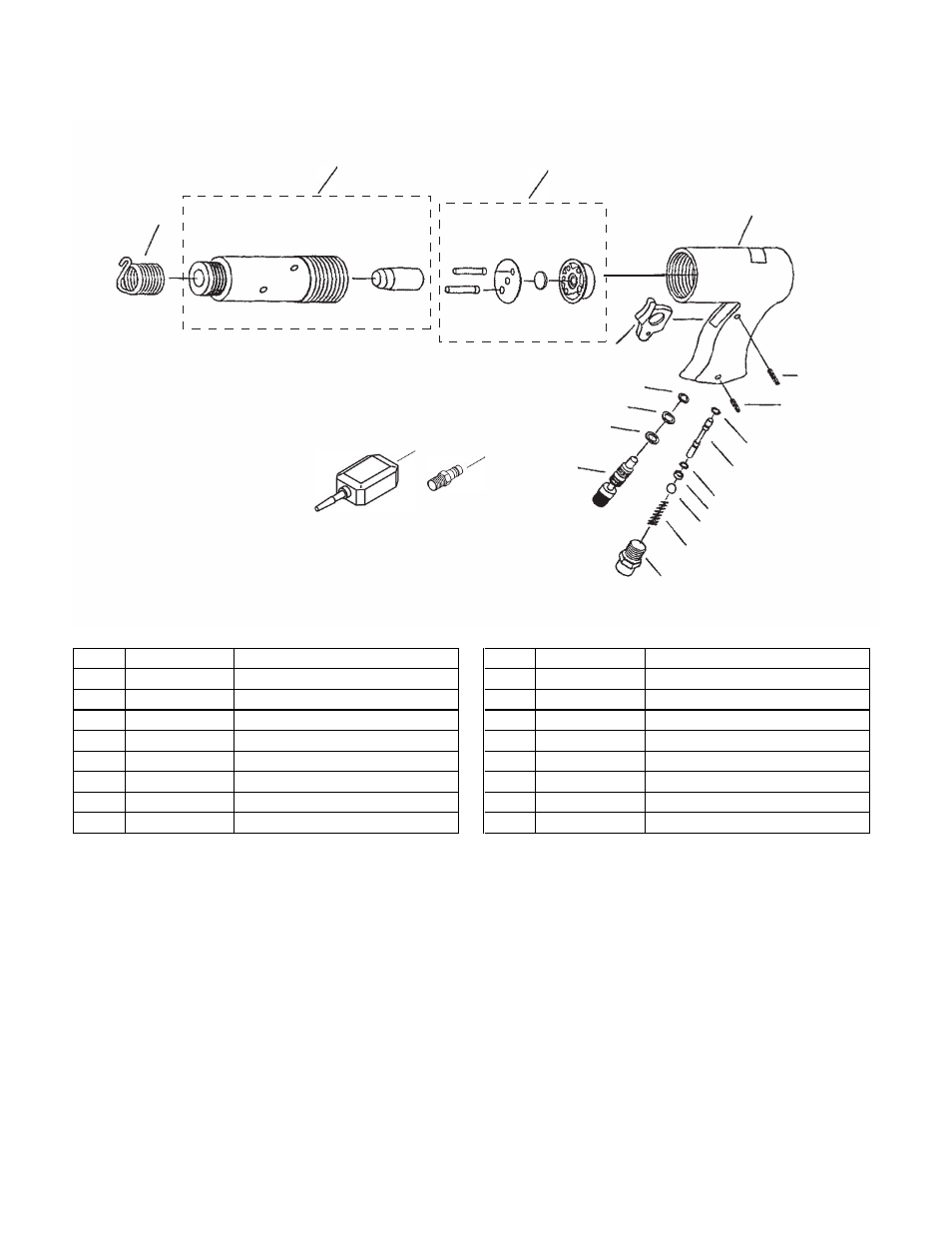

H0579 Parts Breakdown and List
��
��
��
�
�����
��
��
��
�
�
�
�
��
��
��
�
�
�
�
�
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
1
PH0579001
HOUSING
10
PH0579010
LOWER VALVE SET ASSY
2
PH0579002
O-RING
13
PH0579013
PISTON/CYLINDER
3
PH0579003
VALVE STEM
15
PH0579015
RETAINER SPRING
4
PH0579004
PLUG
16
PH0579016
TRIGGER
5
PH0579005
BALL
17
PH0579017
O-RING
6
PH0579006
COMPRESSION SPRING
18
PH0579018
DOWEL PIN
7
PH0579007
AIR INLET
19
H2321
BIT KIT 5 PK (NOT SHOWN)
8
PH0579008
BALL SEAT
20
PH0579020
OIL BOTTLE
9
PH0579009
REGULATOR
21
PH0579021
1/4 NPT AIR FITTING MALE
