Model H8222 Spray Gun -6 -
OPERATIONS
The Model H8222 siphon feed spray gun
set is designed to spray a wide variety of
materials such as lacquers, stains, prim-
ers, multi-component paints, clear coats,
acrylics, epoxies etc. It is ideal for auto
body and woodworking projects.
To use your spray gun:
1. Read and follow the material manufac-
turer's instructions for spraying, mixing,
safety, disposal, and any other instruc-
tion on the label or Material Safety Data
Sheet (MSDS).
2. Ensure the cup is securely tightened
and all other fittings are secure to avoid
air leaks or material spills.
3. Set the inlet air pressure (the air coming
to the spray gun) to the lowest pres-
sure recommended in
Specifications
on Page 3 or to the material manufac-
turer's recommendations.
4. Adjust the atomizing cap to vertical or
horizontal. See Atomizing Cap and
Fan Adjustments on Page 8 for fur-
ther explanation.
5. Fill the cup with material.
6. Trial-and-error are necessary to
achieve the results you want along with
a fair amount of practice. Test your
material flow and spray pattern on a
piece of cardboard or some scrap of
material similar to your project.

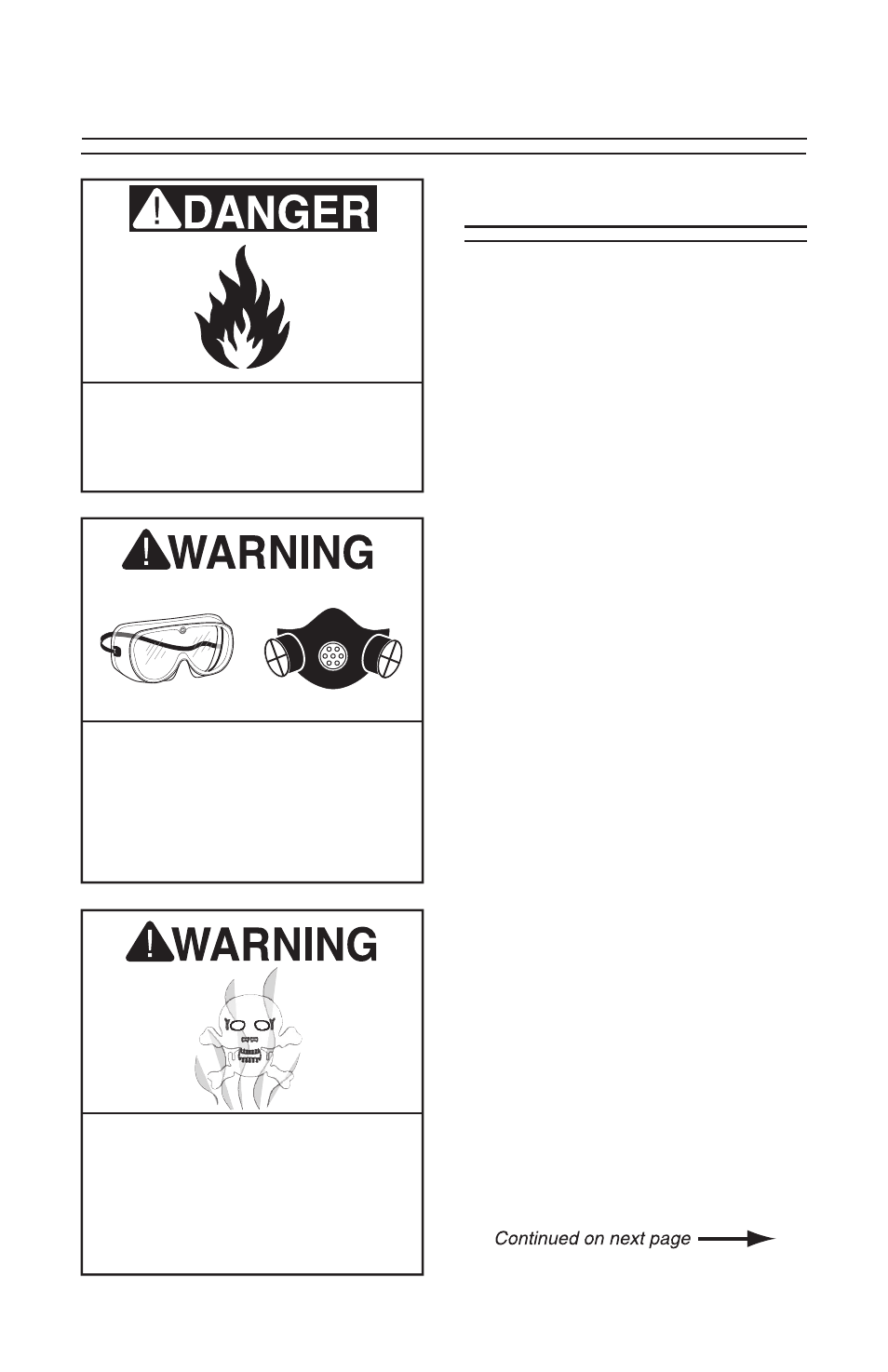

EXPLOSION HAZARD!
DO NOT smoke or have any source
of flame or spark near spraying.
Vapors will explode if ignited.
EYE AND RESPIRATORY HAZARD!
Always wear ANSI approved goggles
and a NIOSH approved respirator
when using spray equipment. Failure
to protect yourself can lead to severe
eye/lung injuries.
TOXIC FUMES!
Only spray in well ventilated areas
or an approved spray booth. NEVER
spray in a confined space where
toxic fumes and flammable vapors
can accumulate to deadly levels.
Spraying
