Gateway SW203 - Manual (Page 6)

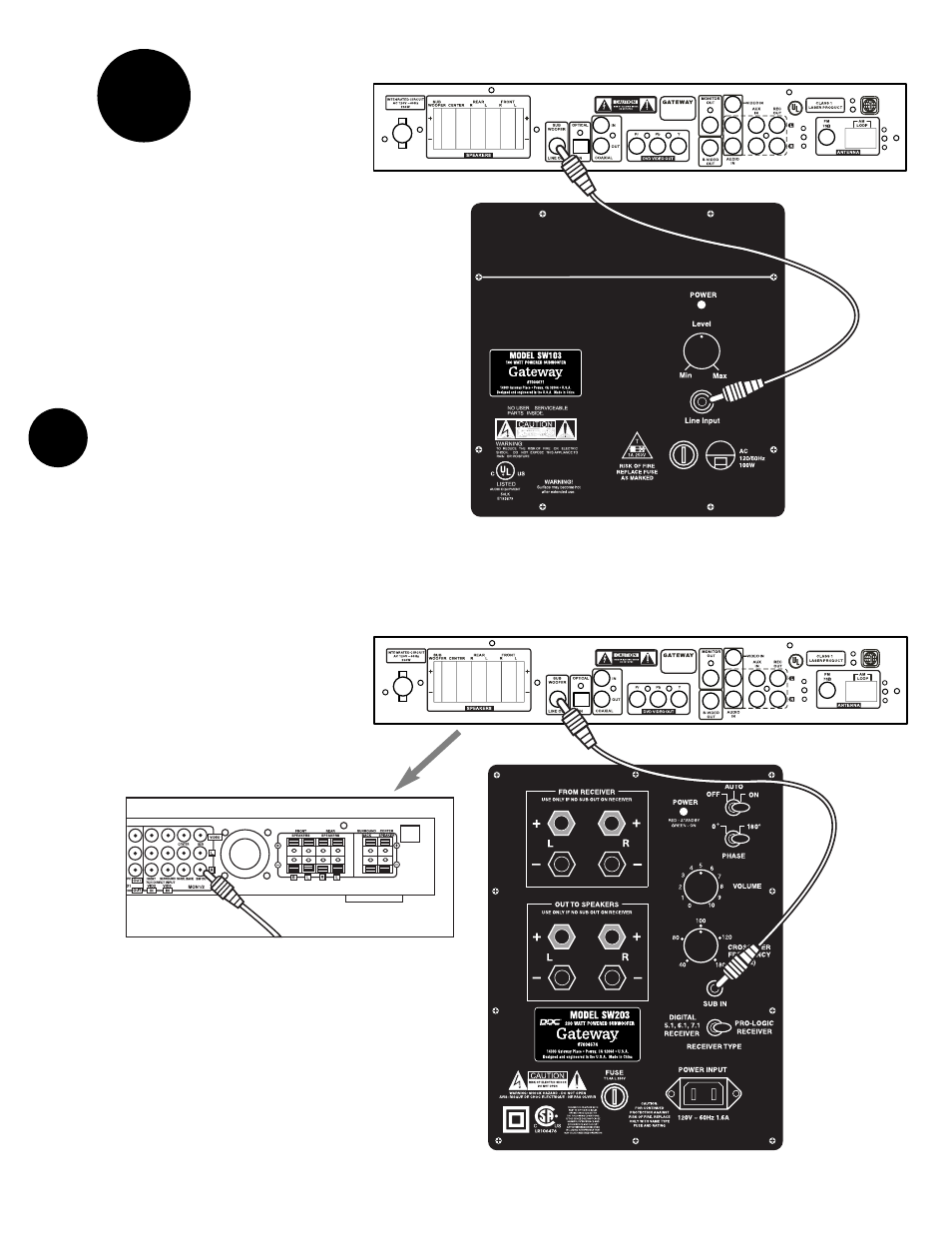

DRAWING 5 - Setup for SW203 and SW303
NOTE:
SEE ITEM 4 ABOVE FOR
PROPER RECEIVER
TYPE SWITCH SETTING
D
SUBWOOFER
CONNECTION
See Drawings 4 and 5
Note: Use the RCA to RCA connector cable
that was supplied with the speaker system.
IMPORTANT: Make sure that ALL
stereo system components including
the SW103/SW203/SW303 are turned
OFF before proceeding.
o 1. Locate the subwoofer output connect-
or on the rear of your receiver and connect
one end of the RCA line level cord to it.
o 2. Route the line cord to the subwoofer
location (trying to minimize areas where it
may be stepped on) and connect the other
end directly to the SUB IN.
o 3. Connect your main (and surround
speakers if applicable) to the receiver
according to the receiver’s owner’s manual.
o 4. For the SW203 and SW303, set the
RECEIVER TYPE toggle switch to receiver
mode you will be using. Note: If you are
using a Dolby Digital type receiver, the sub-
woofer crossover control does not work.
You must set the crossover frequency in
your receiver (check the receiver’s owner’s
manual).
o 5. You are now ready to put your
SW103/SW203/SW303 subwoofer into use.
6
DRAWING 4 - Setup for SW103
SURROUND SOUND RECEIVER
SURROUND SOUND RECEIVER
SW303 connection
SW203 connection
