Page 18

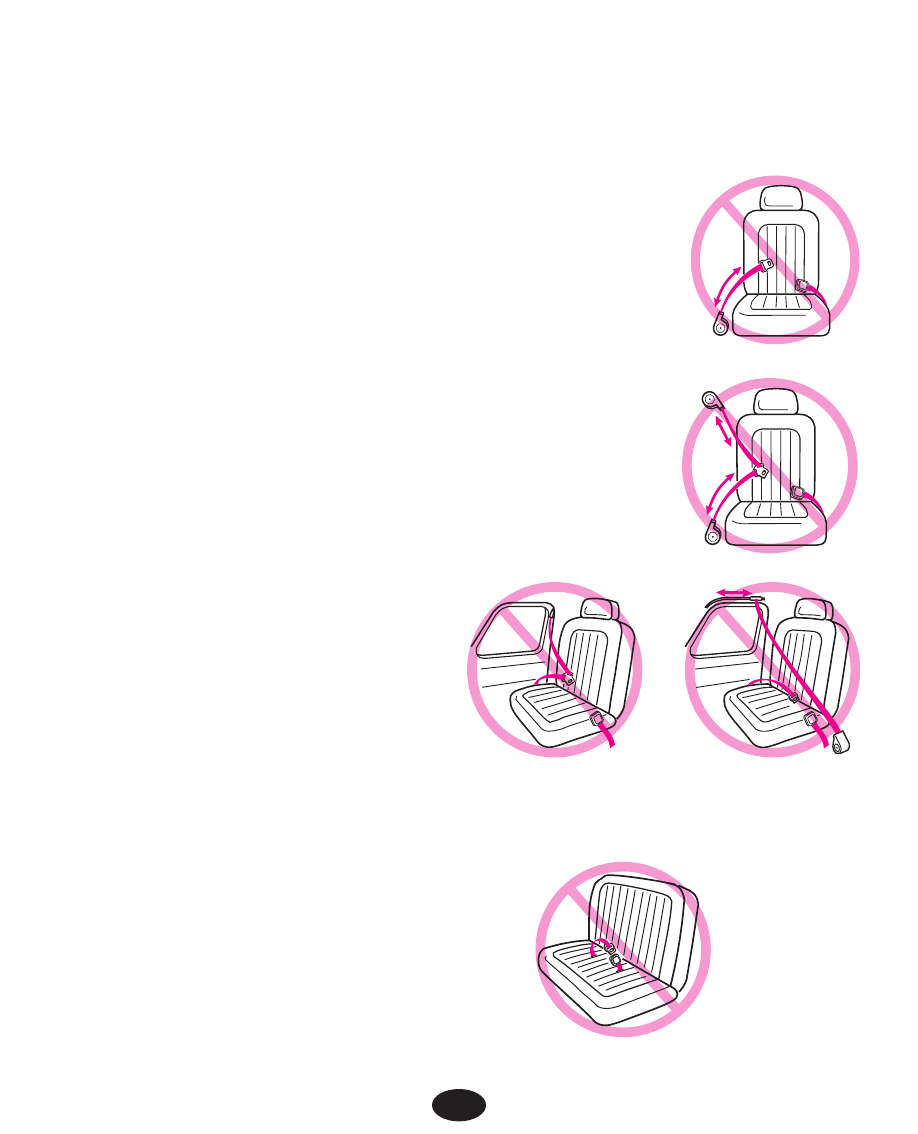

• Lap Belts with Emergency Locking Retractor (ELR)

This lap belt stays loose and can move until it locks

in a crash or sudden stop.

• Combination Lap/Shoulder Belt with Retractor

Each strap has a retractor at one end and is

attached to the latch plate at the other end.

• Passive Restraint - Lap Belt

with Motorized Shoulder Belt

• Passive Restraint - Lap or

Shoulder Belt Mounted on Door
DO NOT use vehicle belts that

are attached to the door in any way or that move along a track to

automatically surround the passenger when the door is closed.

• Lap Belts Forward of Seat Crease

DO NOT use any of the following systems to secure the infant restraint.

4.2.1

UNSAFE

Vehicle Belt Systems
