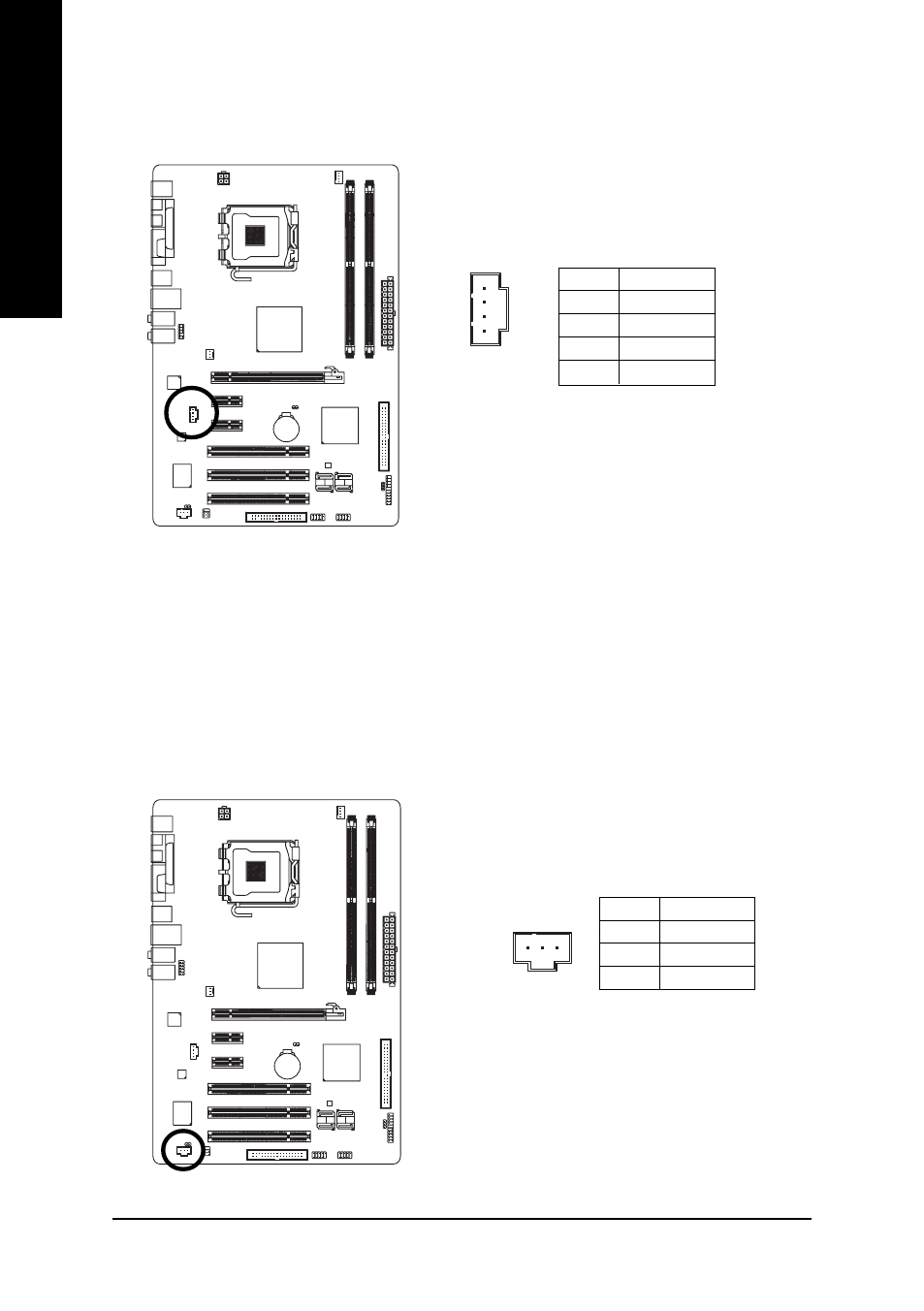

11) CD_IN (CD IN)
Connect CD-ROM or DVD-ROM audio out to the connector.
1
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
12) SPDIF_I (SPDIF In)
Use SPDIF IN feature only when your device has digital output function. Be careful with the polarity
of the SPDIF_IN connector. Check the pin assignment carefully while you connect the SPDIF
cable, incorrect connection between the cable and connector will make the device unable to work
or even damage it. For optional SPDIF cable, please contact your local dealer.
Pin No. Definition
1 Power
2 SPDIFI
3 GND
1
