Installation instructions – GE Monogram 23 User Manual
Page 19

19

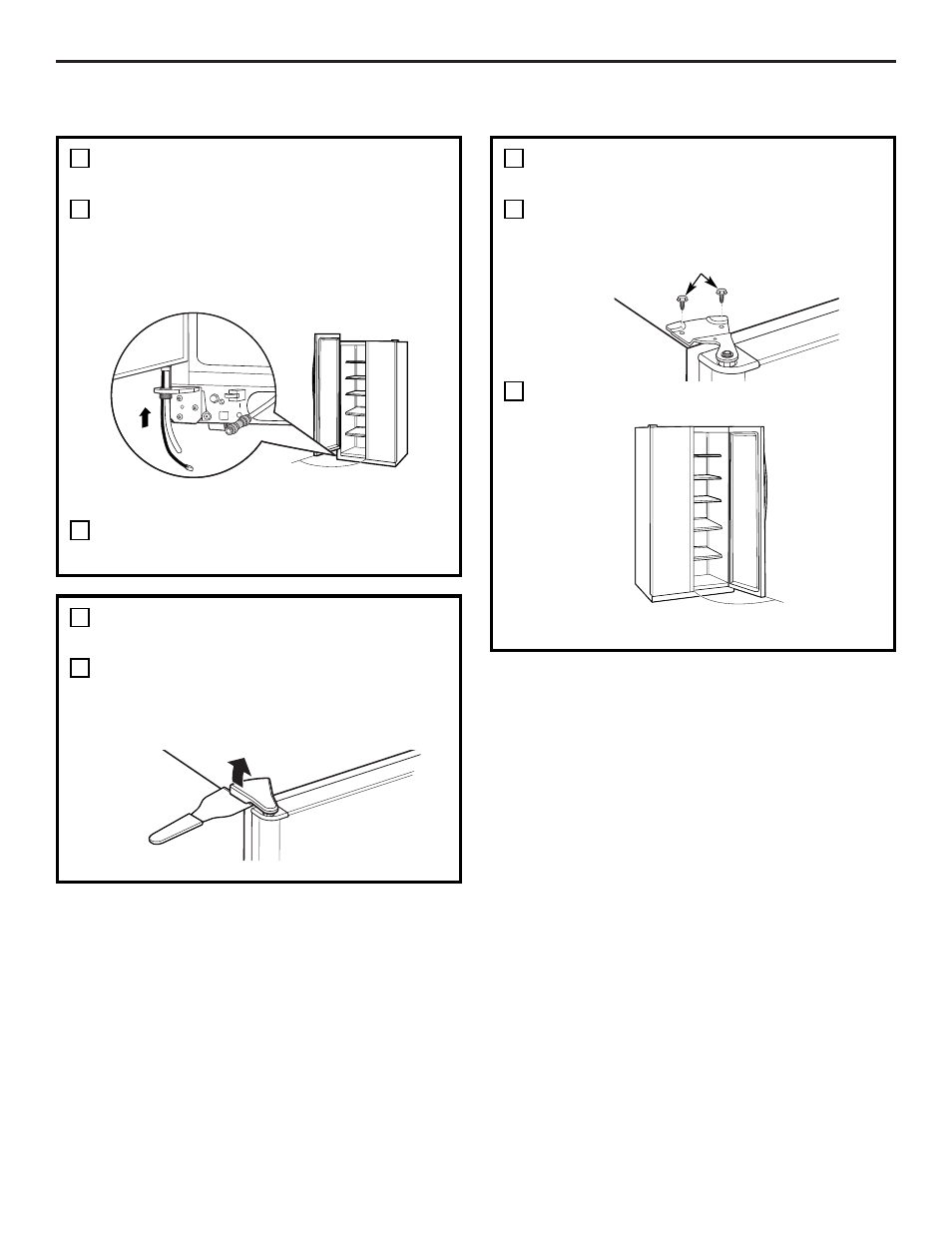

Installation Instructions
REMOVE THE
FREEZER DOOR (cont.)
As one person slowly lifts the freezer door
up and off the bottom hinge, the second
person should carefully guide the water
line and power line (harness) through the
bottom hinge.
Set the door on a non-scratching surface
with the inside up.
7
D
E
90°
REMOVE THE
REFRIGERATOR DOOR
Remove the refrigerator door top hinge
cover by either squeezing it and pulling
it up or by prying it off with a plastic
putty knife.
8
A
REMOVE THE
REFRIGERATOR DOOR (cont.)
Remove the two 5/16” hex head screws,
then lift the hinge straight up to free the
hinge pin.
Open the refrigerator door to 90.°
8
B
C
5/16” Hex Head
90°
