12
Hex key.
WPA-PSK encryption: WPA-PSK (Preshared Key) uses TKIP or AES based on your
choice. You create a password (or Passphrase as its often called) and the system will
use the Passphrase to create a cipher code in which it will encrypt the data.
To use WPA-PSK:
1. Create a Passphrase, and key it in. Use 8~63 ASCII digits.
2. Remember this Passphrase. If you forget the Passphrase, you will have to do a
hard reset of the Access Point in order to restore default settings and connect
again.
3. Click “OK to save these settings.
3-1-2-1. 802.1X Setting - Certification Tab
Clicking Use 802.1X Authentication and then Enter 802.1X configuration from the
Authentication and Security Window will bring up the 802.1x Setting Window and the
Certification Tab (see Figure 3-6).
From the Certification screen, you may configure information about authentication, such as
Tunnel Protocol, ID and Password and Client Certificate or Certificate Chain. (see Figure
3-6 and 3-8)

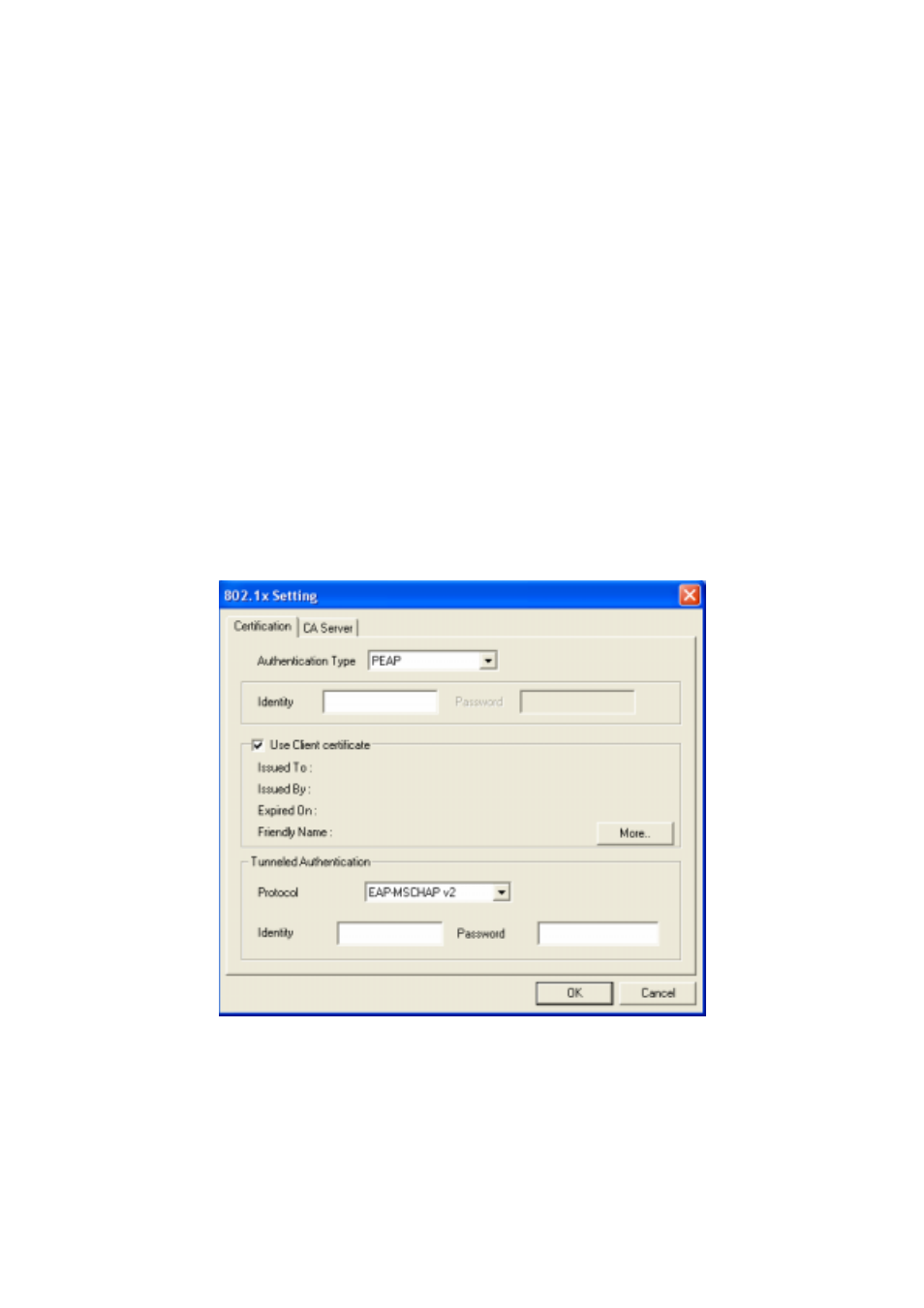

Figure 3-6. 802.1X Authentication
Description of items in Figure 3-6 is as follows:
Authentication type: PEAP, TLS/Smart Card, TTLS, LEAP and MD5-Challenge. (Default:
PEAP)
