4.6 Up-Link (Cross-over) Switch
The TB14 and TB14H Media Converter is
equipped with an Up-Link slide switch.
When set to the UP position (X), the
Media Converter is wired with cross-over
functionality for direct up-link to a
network hub, switch or concentrator.
When set to the DOWN position (=), the
Magnum Media Converter is wired for
normal twisted-pair connection to a user
node device. Some Ethernet Switch ports
may be of either polarity, and this feature
is most convenient with such switches.

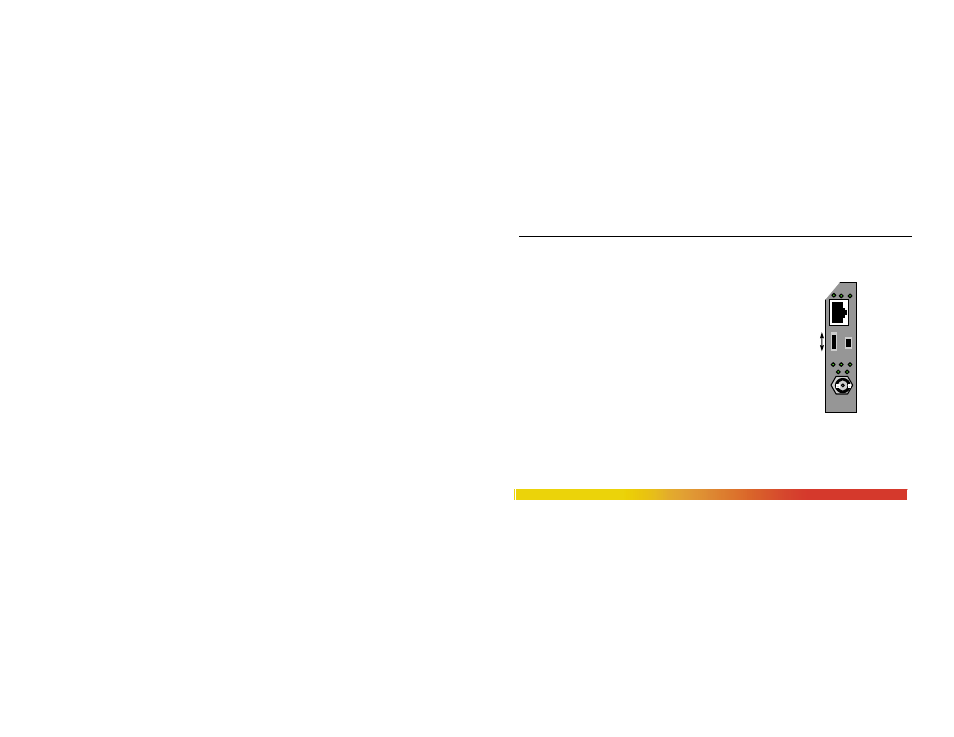

End view, TB14, TB14H
up-link (X)
user device
RJ45
BN
U
p
=
=
P
W
R
