Model H8233 3-Piece Framing/Brad Nailer & Stapler Kit
-20
-

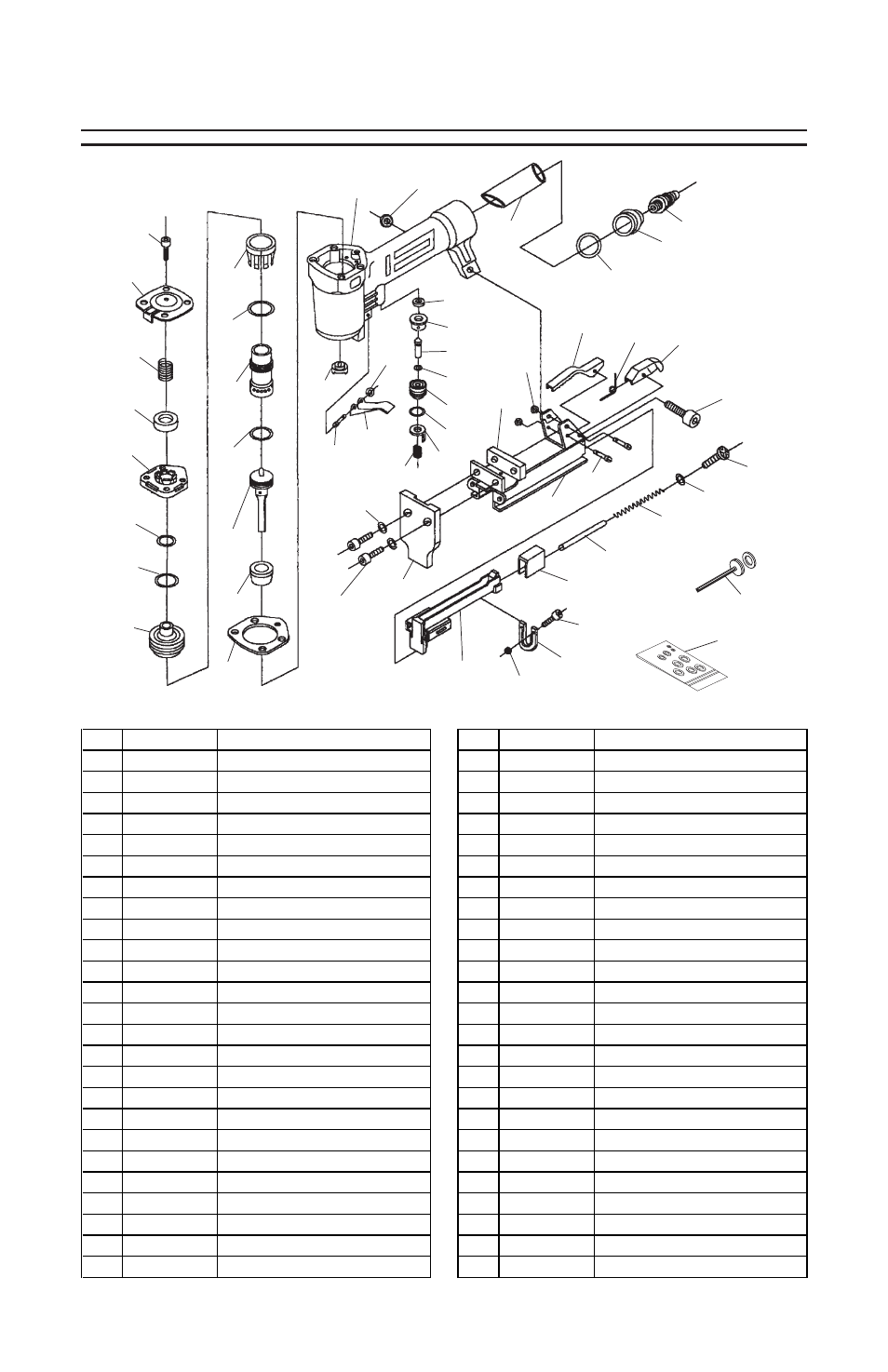

Stapler Breakdown and Parts List
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
201 PSB15M
CAP SCREW M5-.8 X 20
227 PH8236127 TRIGGER
202 PH8236102 EXHAUST PORT
228 PEC16M
E-CLIP 2.5MM
203 PH8236103 COMPRESSION SPRING
229 PLW01M
LOCK WASHER 5MM
204 PH8236104 SPACER
230 PH8236130 DRIVER GUIDE
205 PH8236105 CYLINDER COVER
231 PH8236131 SPACER
206 PORP011-2 O-RING 11 X 2.4 P11.2
232 PH8236132 MAGAZINE
207 PORP016
O-RING 15.8 X 2.4 P16
233 PH8236133 MAGAZINE SLIDER
208 PH8236108 HEAD VALVE PISTON
234 PH8236134 MAGAZINE PUSHER
209 PH8236109 COLLAR
235 PH8236135 SHAFT
210 POR0030
O-RING 30 X 3.1
236 PH8236136 COMPRESSION SPRING
211 PH8236111 CYLINDER
237 PW05M
FLAT WASHER 4MM
212 PORP018
O-RING 17.8 X 2.4 P18
238 PS110M
PHLP HD SCR M4-.7 X 4
213 PH8236113 MAIN PISTON
239 PSB18M
CAP SCREW M4-.7 X 8
214 PH8236114 BUMPER
240 PH8236140 BRACKET
215 PH8236115 SEALING WASHER
241 PN04M
HEX NUT M4-.7
216 PH8236116 GUN BODY
242 PH8236142 GROOVED CLEVIS PIN
217 PH8236117 RUBBER WASHER
243 PH8236143 TORSION SPRING
218 PH8236118 SPACER
244 PH8236144 MAGAZINE LATCH
219 PH8236119 TRIGGER VALVE RING
245 PH8236145 MAGAZINE LATCH LEVER
220 PH8236120 TRIGGER VALVE STEM
246 PN06M
HEX NUT M5-.8
221 PORP003
O-RING 2.8 X 1.9 P3
247 PH8236147 RUBBER HAND GRIP
222 PH8236122 TRIGGER VALVE GUIDE
248 PORS035-5 O-RING 35.0 X 2.0 S35.5
223 PORP011-2 O-RING 11 X 2.4 P11.2
249 PH8236149 END CAP
224 PH8236124 SAFETY RING
250 PH8236150 AIR INLET QUICK CONNECT
225 PH8236125 COMPRESSION SPRING
251 PH8236151 PISTON REPAIR KIT
226 PH8236126 GROOVED CLEVIS PIN
252 PH8236152 O-RING REPAIR KIT
