Page 7
T10050 Right angle iron Bender
-7-

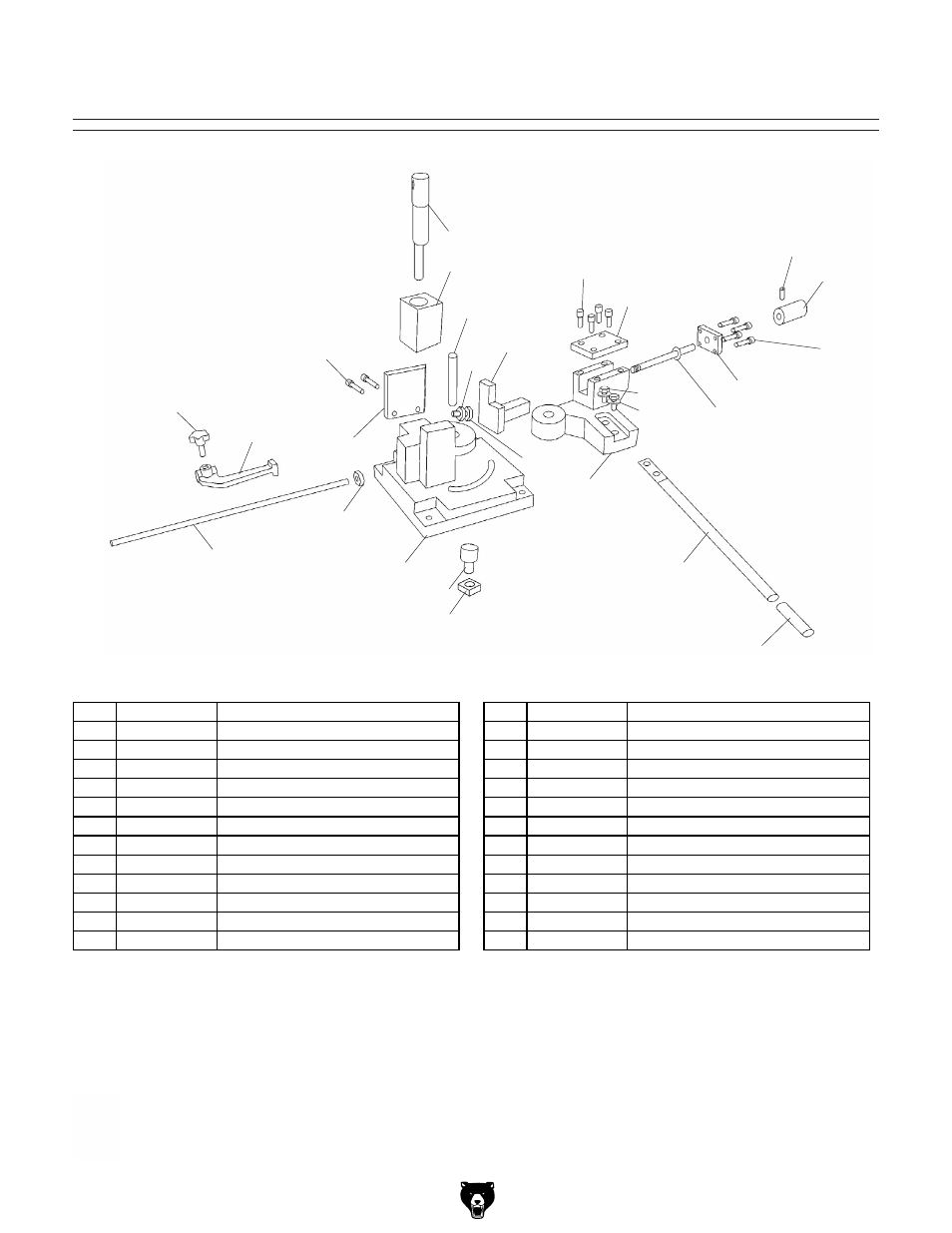

parts Breakdown & List
&
'
(
)
*
+
,
-
.
&'
&(
&)
&)"&
&*
&+
&,
&-
&.
&."&
'%
'%
'&
''
'(
')
')"&
'*
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
1
PT10050001
BODY
15
PT10050015
WORK STOP
2
PT10050002
CRANK
16
PT10050016
WORK STOP ROD
3
PT10050003
HANDLE
17
PSW03-1
KNOB M10-1.5 x 35
4
PT10050004
STATIONARY JAW
18
PT10050018
PLASTIC GRIP
5
PT10050005
BENDING PLATE
19
PB31M
HEX BOLT M10-1.5 X 40
6
PT10050006
BENDING PLATE KNOB
19-1
PW04M
FLAT WASHER 10MM
7
PT10050007
BENDING PLATE LEADSCREW
20
PSB14M
CAP SCREW M8-1.25 X 20
8
PT10050008
CLAMP DIE
21
PRP08M
ROLL PIN 6 X 30
9
PT10050009
CLAMP CAM SHAFT
22
PN09M
HEX NUT M12-1.75
12
PT10050012
COVER PLATE
23
PSB64M
CAP SCREW M10-1.5 X 25
13
PT10050013
END PLATE
24
PB14M
HEX BOLT M10-1.5 X 35
14
PT10050014
ANGLE STOP
24-1
PN02M
HEX NUT M10-1.5
14-1
PSN05M
SQUARE NUT M12-1.75
25
PT10050025
PIVOT PIN
